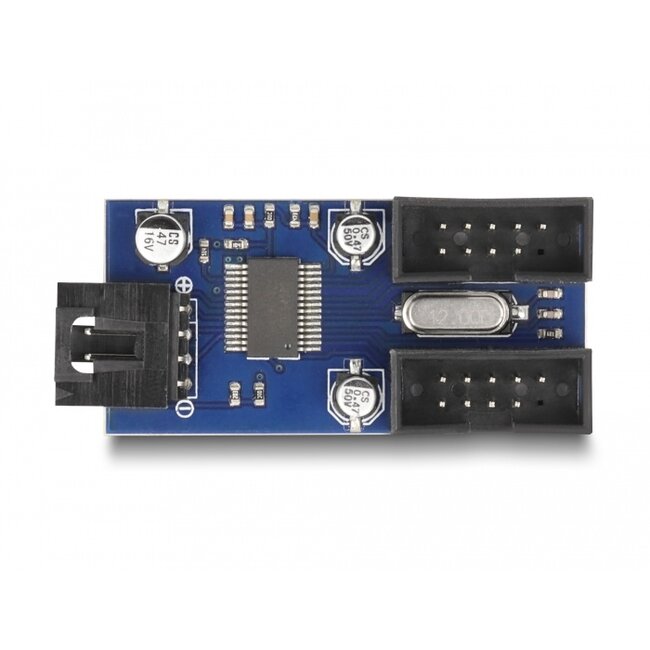

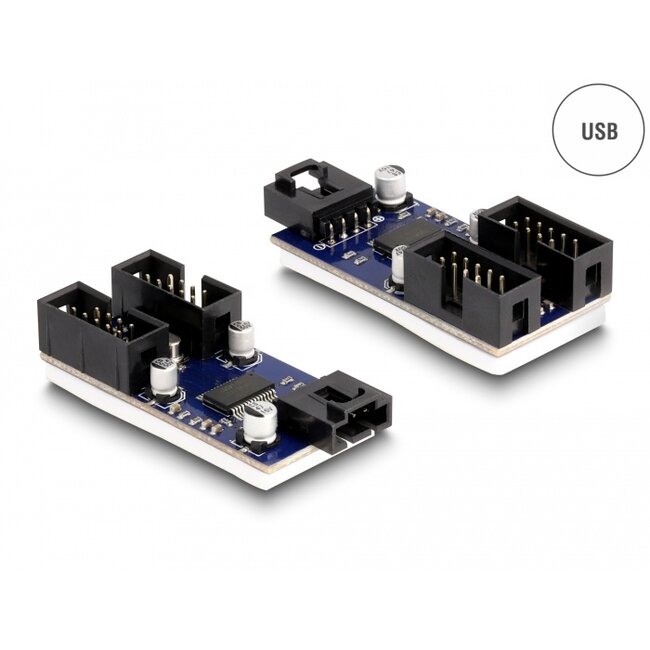

This USB hub by Delock can be connected to an internal USB port and provides two 9 pin USB pin header male connectors. Using a USB pin header cable allows to connect up to 4 USB devices.
Specification• Connectors:
1 x 4 pin USB 2.0 pin header
2 x 9 pin USB 2.0 pin header
• Chipset: Genesys Logic GL850G
• Data transfer rate up to 480 Mbps
• Pitch: 2.54 mm
• Bottom side with isolating, antislip pad
• Plug & Play
• Bootable
• Dimensions (LxWxH): ca. 54 x 24 x 14 mm
• Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• Motherboard with a free 9 pin USB 2.0 pin header male
Package content
• Hub

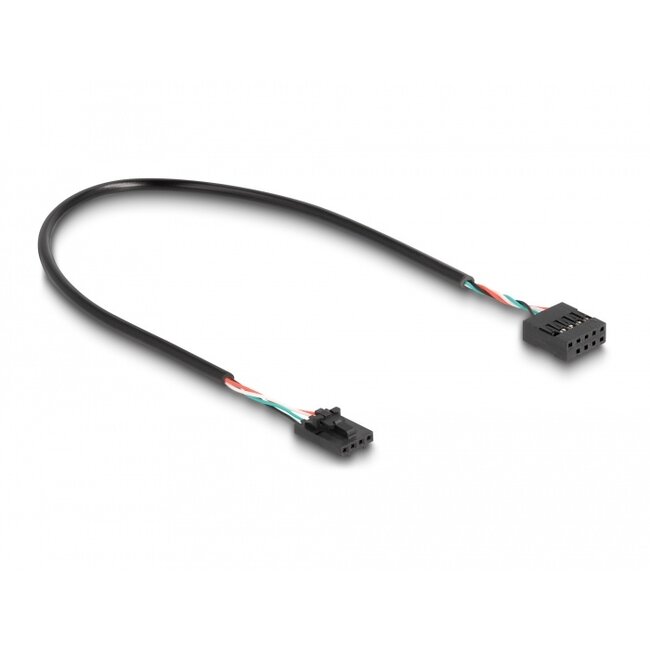

• Pin header female cable, length ca. 30 cm
• User manual
