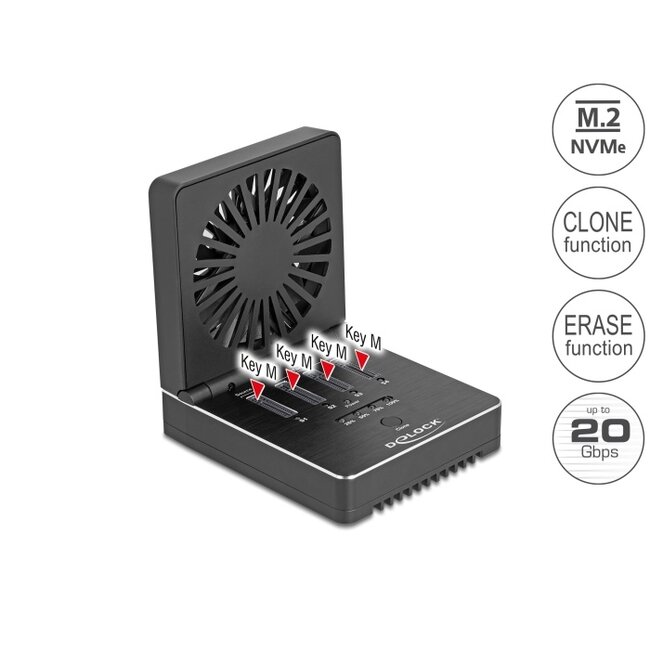

This M.2 docking station by Delock enables the installation of four M.2 PCIe NVMe SSDs and can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-Câ„¢ port.

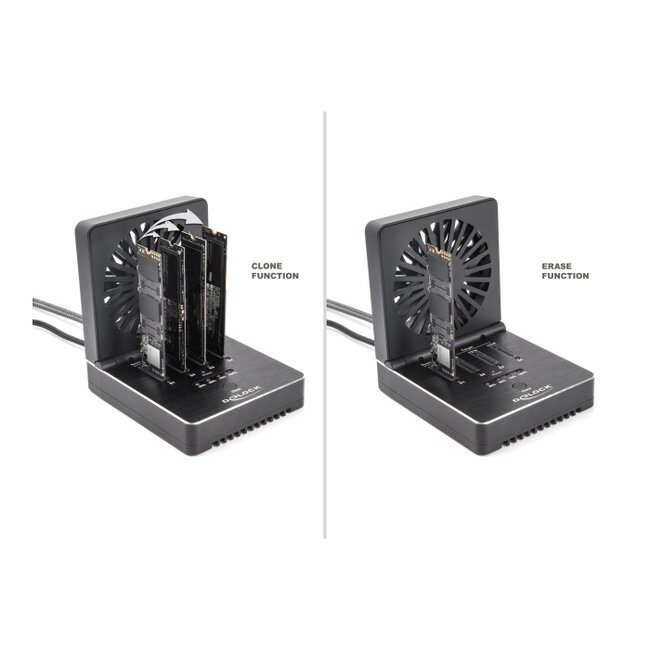

Clone and erase function
The clone function enables to copy the content of one SSD to another without using a PC. This M.2 docking station allows cloning up to three SSDs simultaneously. No connection to the computer is required for the erase function. Selectively one drive or multiple drives can be deleted at the same time.

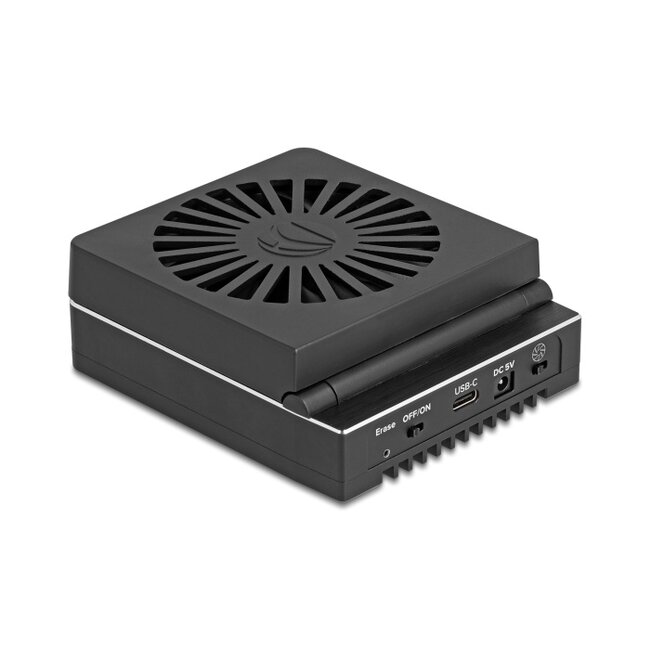

Efficient cooling
The robust aluminum housing in combination with an integrated, hinged fan ensures reliable heat dissipation and protects your SSDs from overheating.
No screws, tools or accessories are required, which means that the SSD can be changed quickly.
Ideal test equipment
The Delock 4 Bay M.2 NVMe SSD Duplicator is the perfect choice for anyone who wants to manage, clone or backup large amounts of data. With high speed, practical functions and easy operation, this device is ideal for professionals, technology enthusiasts and IT specialists.

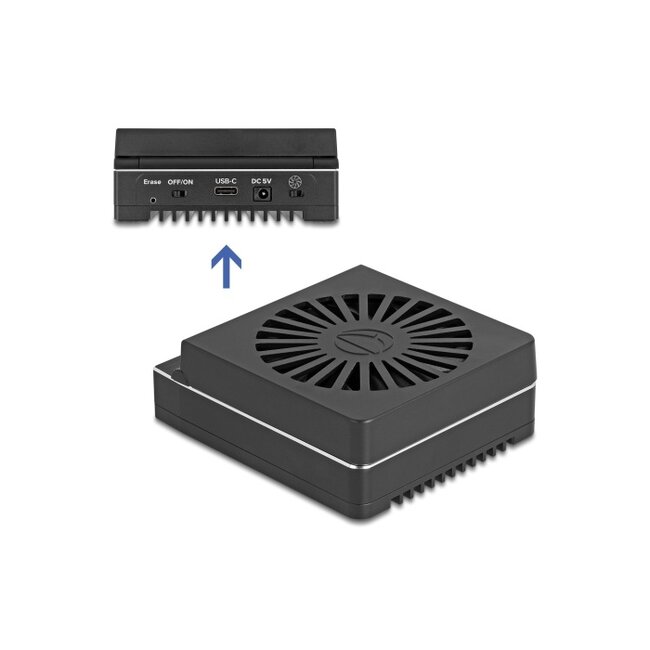

• Connectors:
1 x USB 20 Gbps USB Type-Câ„¢ female
4 x M.2 key M slot
1 x DC jack
• Chipset: Asmedia ASM2464PDX
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 20 Gbps
• Supports UASP
• Supports TRIM
• LED indicator for power, access and copy / erase status
• Function key:
1 x switch for fan
1 x Clone button
1 x Erase button
1 x On / Off switch
• 1 x 75 mm fan
• Bootable
• Dimensions closed (LxWxH): ca. 102 x 88 x 36 mm
• Plug & Play
Power supply specification
• Power supply type: Euro wall power plug
• Model identifier: FJ-SW0503000E
• Input voltage: 100 - 240 V
• Input AC frequency: 50 / 60 Hz
• Input current: 0.6 A
• Output voltage / Output current / Output power: 5.0 V / 3.0 A / 15.0 W
• Average active efficiency: 81.5 %
• Efficiency at low load (10 %): 78.2 %
• No-load power consumption: 0.08 W
• Cable length of power supply: ca. 1.5 m
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.3 mm
outside: ø ca. 3.5 mm
length: ca. 10 mm
• Android 14.0 or above
• Linux Kernel 6.8 or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

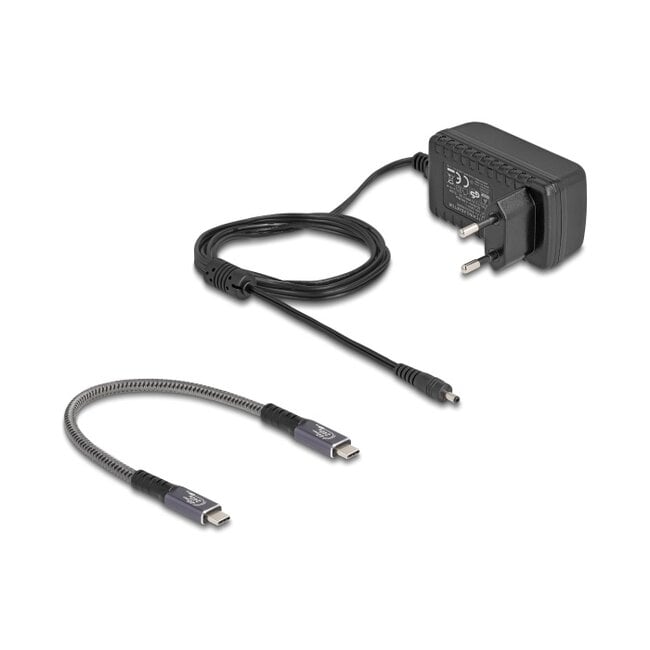

Package content
• M.2 docking station
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• External power supply
• User manual
