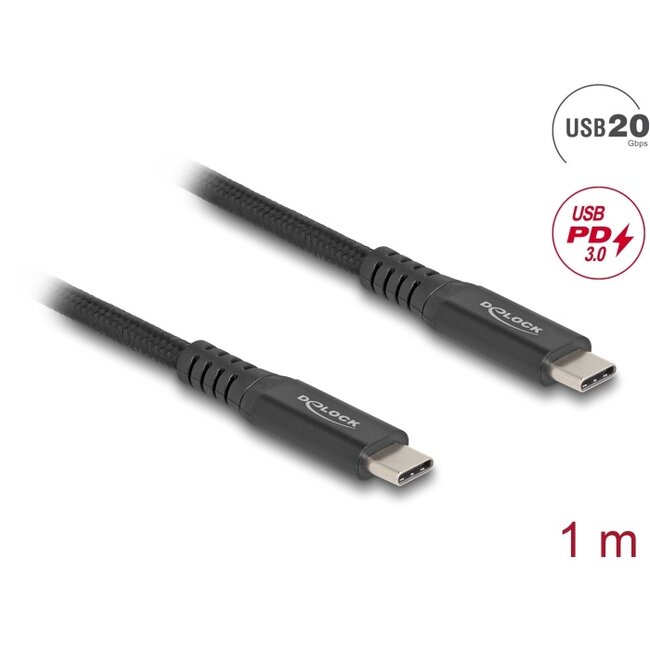

This USB4™ cable by Delock enables the connection of various devices, such as smart phones, monitors, external enclosures and docking stations, via a USB Type-C™ or Thunderbolt™ 3 port of a PC or laptop. The cable supports the transfer of USB as well as DisplayPort and PCI Express data.
USB4™ 20 Gbps
The cable enables data transfer rates up to 20 Gbps when connecting USB4™-compatible devices. Of course, USB 3.2 or USB 2.0 devices can also be connected.
Supports the USB Power Delivery 3.0 standard, which allows connected devices to be powered with up to 100 W (20 V / 5 A).
Metal housing and strain relief
Thanks to the elegant metal housing and sturdy strain relief on both sides, the cable is optimally protected against damage in everyday use.
• Connectors:
2 x USB 20 Gbps USB Type-C™ male
• Downwards compatible to USB 3.2, USB 2.0 and Thunderbolt™ 3
• Chipset: E-Marker
• Connector with metal housing
• Cable with textile shielding
• Cable gauge:
32 AWG data line
22 AWG power line
• Cable diameter: ca. 5 mm
• Contacts gold-plated
• Cable triple shielded
• Data transfer rate up to 20 Gbps
• Display resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.4a protocol
• Supports DisplayPort Alt Mode 2.0
• Dual channel, bi-directional data transfer
• USB Power Delivery (USB PD 3.0) support up to 100 watt (20 V / 5 A)
• Colour: black
• Length incl. connectors: ca. 1 m
• USB cable
