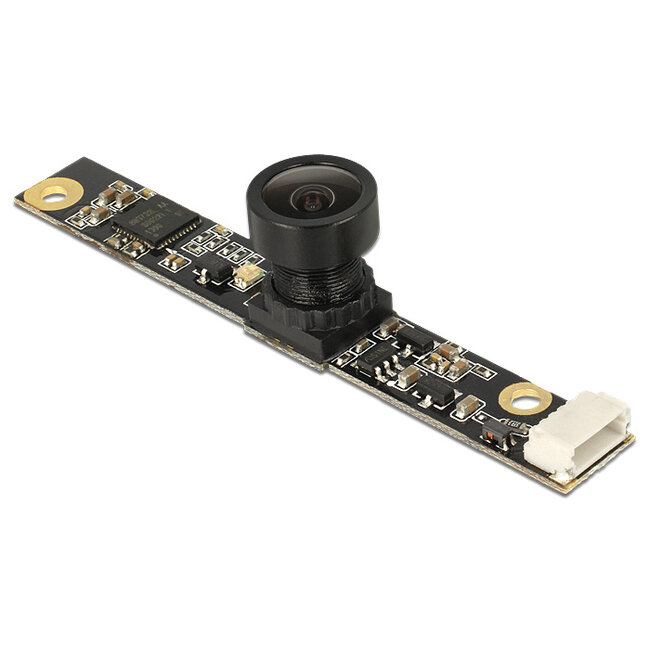

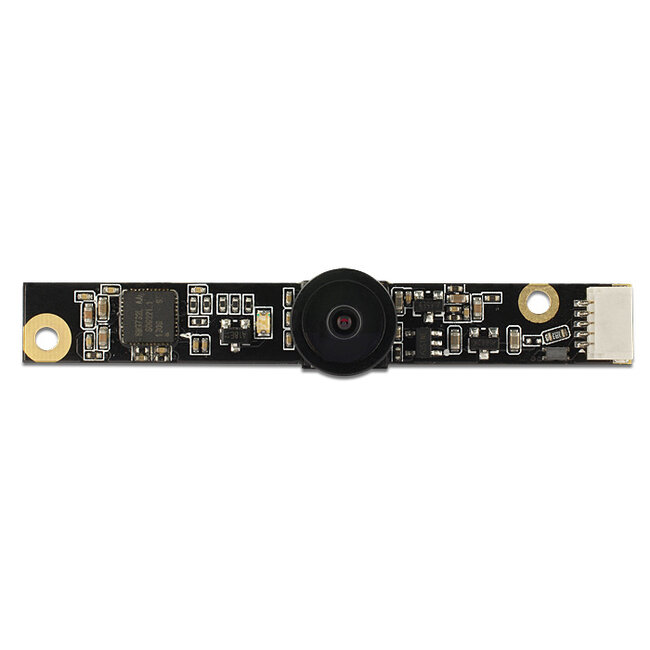

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
Specification• Connector: 1 x 5 pin USB 2.0 pin header female SMT, pitch 1.00 mm
• Resolution: 3.14 megapixel
• With optical IR filter
• Standard SCCB interface (I²C Bus)
• Output support for RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422
and compression
• Maximum resolution: QXGA (2048 x 1536)
• Automatic image control functions including:
Automatic exposure control (AEC)
Automatic white balance (AWB)
Automatic band filter (ABF)
Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma, sharpness (edge
enhancement), lens correction, white pixel canceling, noise canceling, and automatic
50 / 60 Hz luminance detection
• Supports scaling
• Power consumption:
Sensor suspend: 90 mA
sensor active: 430 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/4"
• Sensitivity: 0.6 V / lx s
• Signal-to-noise ratio (SNR): ca. 36 dB
• Dynamic range: 68 dB
• Fix focus: 0.3 m - infinite
• Aperture: F/2,5
• Frame rates:
30 fps @ HVGA, VGA, XGA, 720p, QVGA
15 fps @ UXGA, 1080p, QXGA

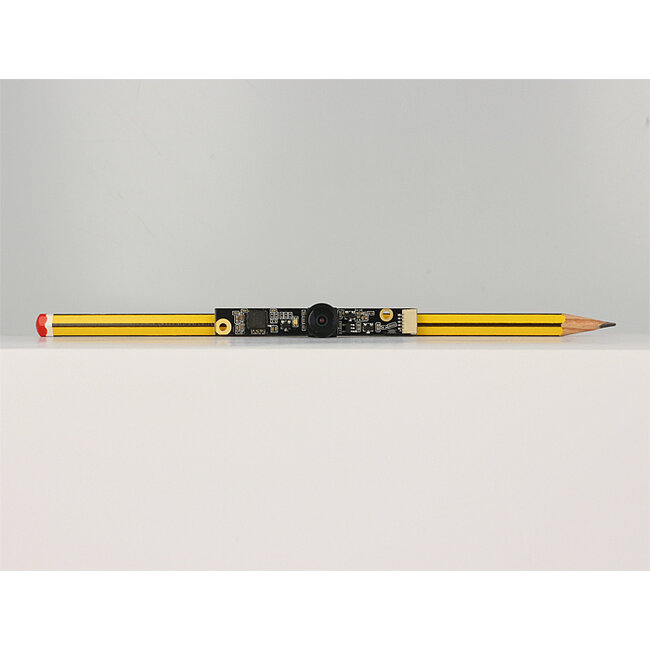

• Dimensions (LxWxH): ca. 60 x 8 x 13 mm
• PC with UVC support
• Windows Vista/7/8.1/10/10-64
• DirectX 9.0c or above
• Linux Kernel 2.6.15 and above with Video4Linux
• Minimum CPU P4 1.4 GHz, 512 MB RAM
Package content
• Camera Module
• CD with user manual
