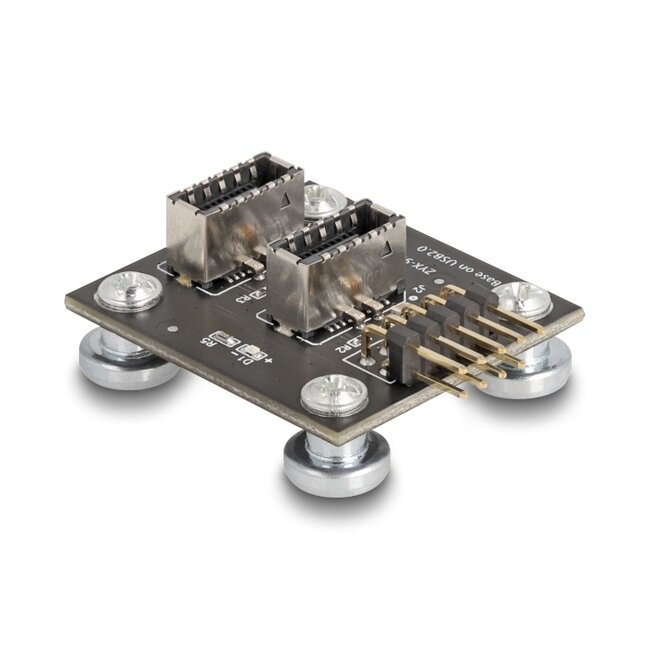

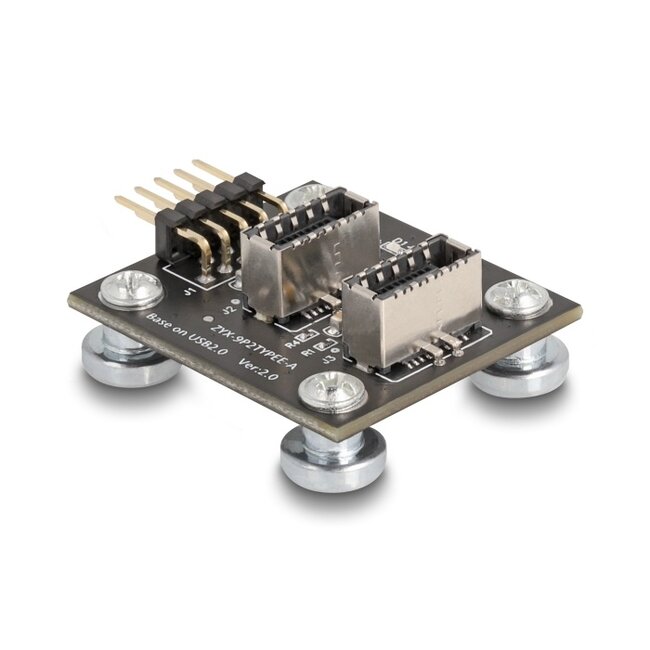

This adapter by Delock can be connected onto a motherboard by using the included USB pin header cable and converts the USB pin header female port into two internal USB Type-E Key A female ports. Various cables can be connected to the adapter, to provide either one USB Type-C™ or one USB Type-A interface.
Magnetische Installtion

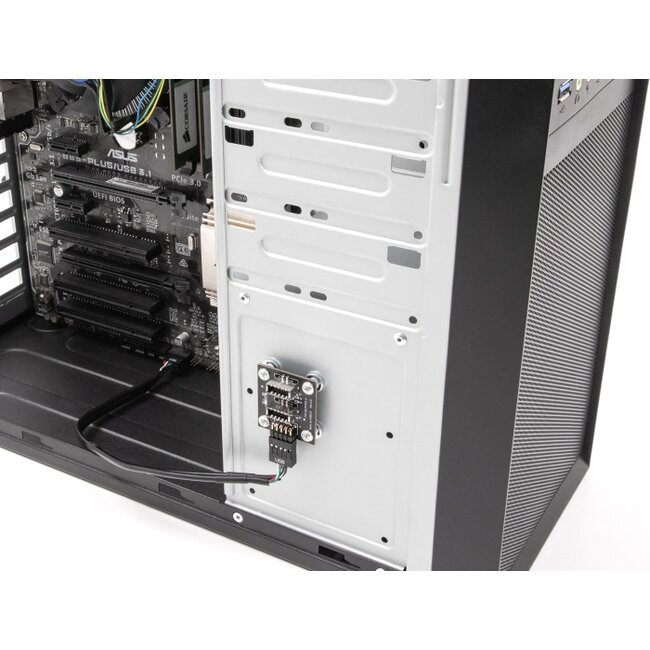

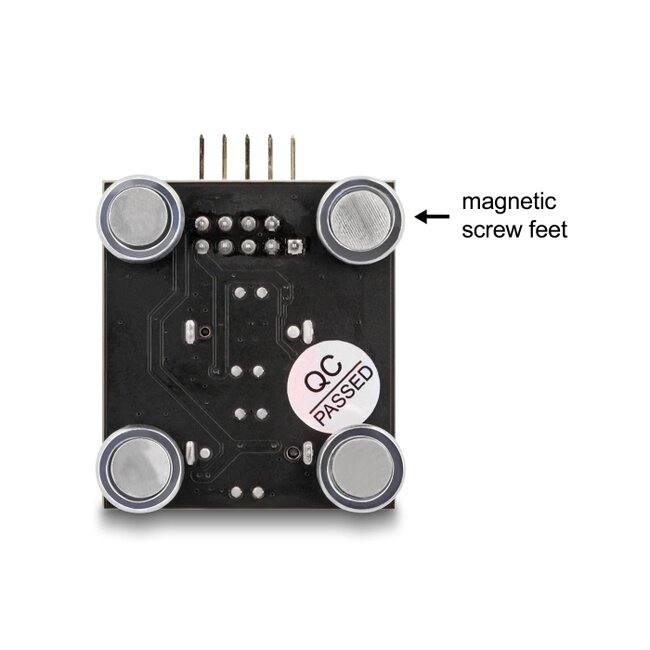

The adapter has four magnetic screw feet that allow the adapter to be attached inside a computer case without drilling holes. The included USB cable, with a length of approx. 30 cm, offers flexible space inside the housing for this purpose.
• Connectors:
1 x 9 pin USB 2.0 pin header female
1 x USB type-E Key A 20 pin female
• Data transfer rate up to 480 Mbps
• Pitch: 2.54 mm
• LED indication blue for power supply
• Cable length: ca. 30 cm
• Dimensions (LxWxH): ca. 42 x 33 x 15 mm
• Adapter
• 1 x USB pin header cable, ca. 30 cm
• Protective dust cap
• 4 x magnetic screw
