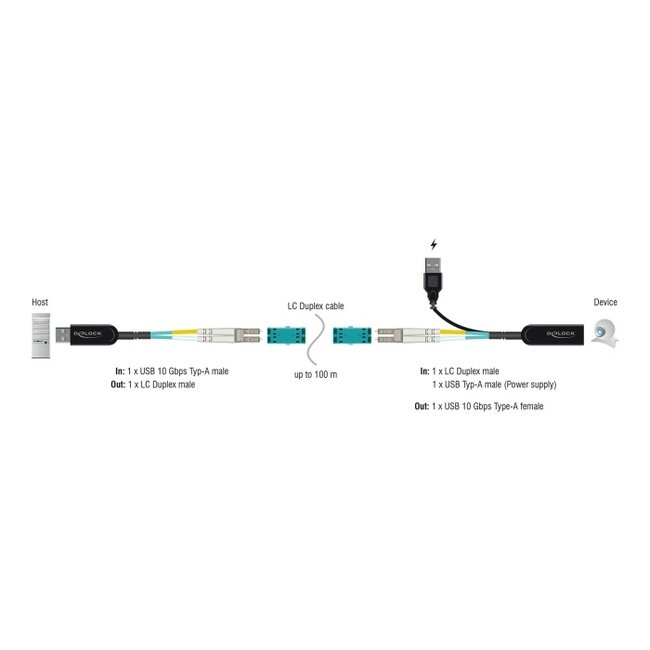

This USB extender set by Delock can transmit USB data with 5 or 10 Gbps over a multi-mode LC Duplex network cable. A maximum length of 100 m is possible.
Note
The extender is not backward compatible; transfer of USB 2.0 or USB 1.1 data is not supported.
• Connectors Transmitter:
Input:
1 x USB 10 Gbps Type-A male
Output:
1 x LC Duplex male
• Connectors Receiver:
Input:
1 x LC Duplex male
1 x USB Type-A male (power supply)
Output:
1 x USB 10 Gbps Type-A female
• Data transfer rate up to 10 Gbps
• Fibre optical cable with very low signal degradation
• Not affected by electromagnetic interference
• Cable diameter: ca. 3 mm
• Maximum output current: 900 mA
• Power consumption: max. 0.4 W
• Metal housing
• Colour: aqua / black
• Cable length with connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 50 x 18 x 9 mm
• PC or laptop with a free USB Type-A port
• Power supply via USB
• Multi-mode OM3 cable
Package content

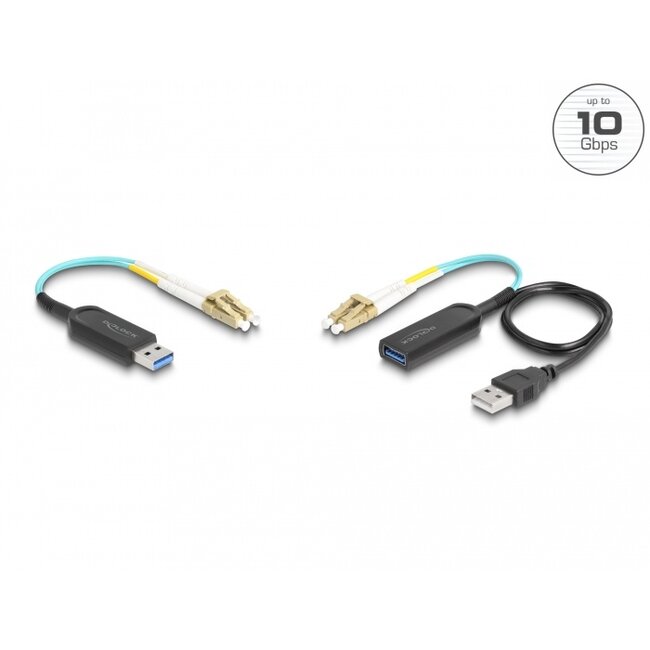

• Receiver
• Transmitter

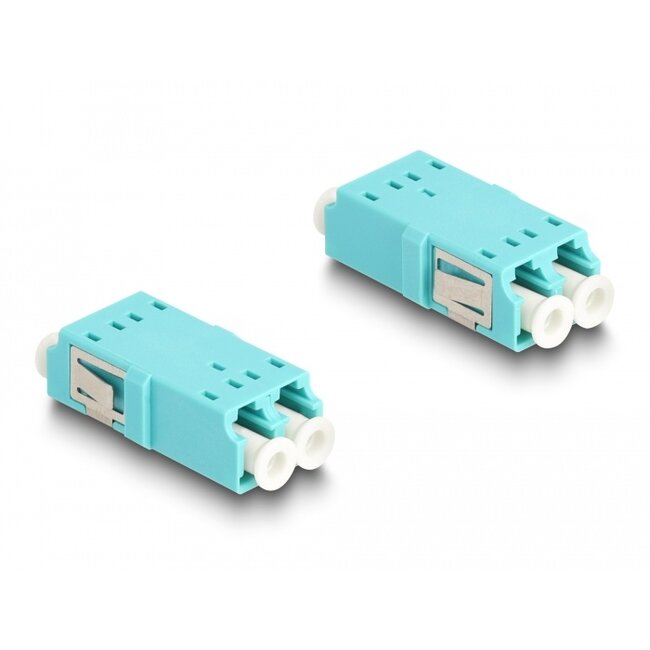

• 2 x LC Duplex coupler
• User manual
