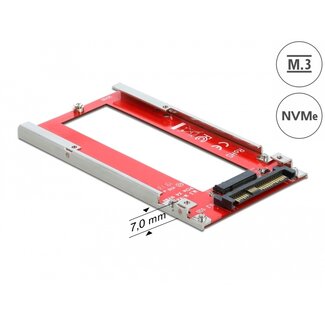

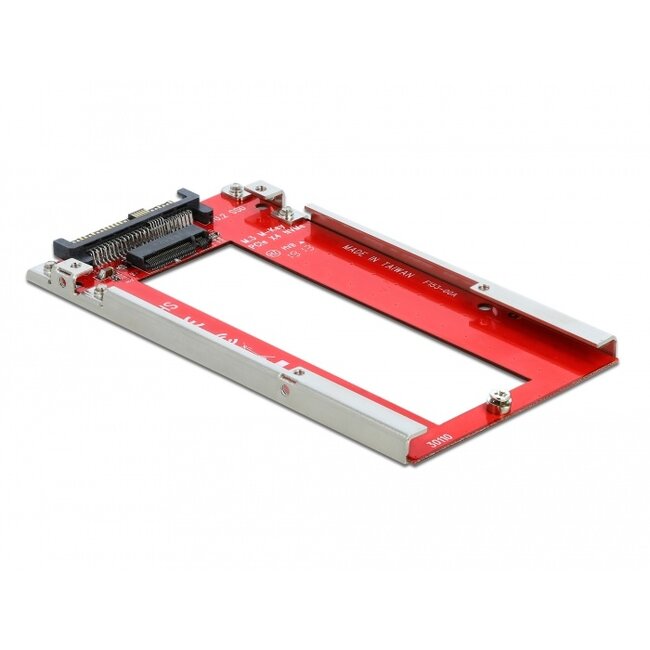

This converter by Delock enables the connection of an M.3 / NF1 (NGSFF) SSD. One M.3 module with 110 mm length and 30 mm width can be connected. The converter can be installed into your system internally through the U.2 68 pin interface.
Cooling for the SSD

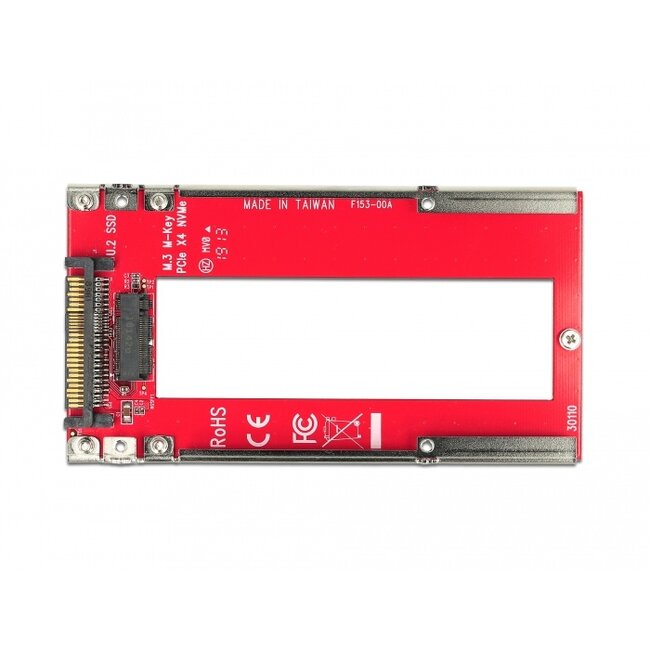

For better cooling, the PCB of the converter has a recess, which is located directly under the inserted SSD. Thus it is possible that an optional heat sink can be mounted on the bottom of the SSD.
• Connectors:
1 x U.2 SFF-8639 male >
1 x M.3 / NF1 slot
• Interface: PCIe / NVMe
• Supports M.3 / NF1 modules in format 30110
• Supports M.3 / NF1 SSD up to 4.8 mm thickness
• Supports NVM Express (NVMe)
• Data transfer rate up to 32 Gbps
• Bootable, ex UEFI version 2.3.1

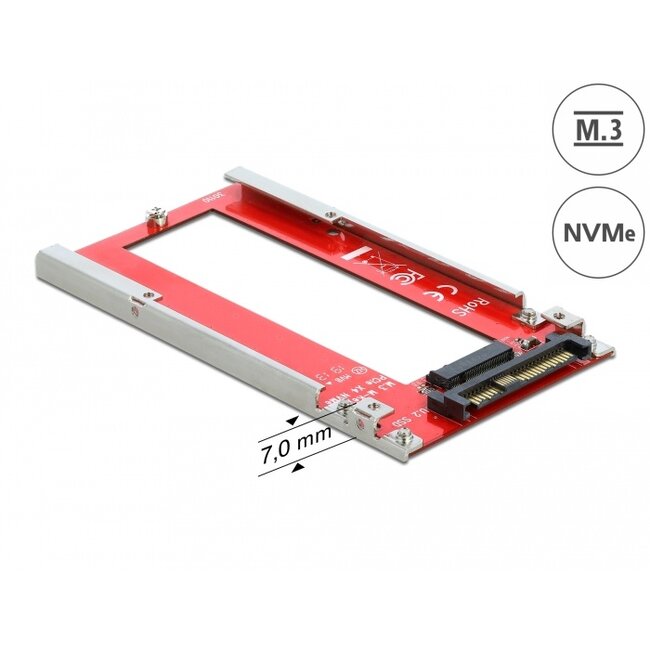

• Dimensions (LxWxH): ca. 130 x 70 x 7 mm
• Linux Kernel 4.6.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8639 interface
Package content
• Converter

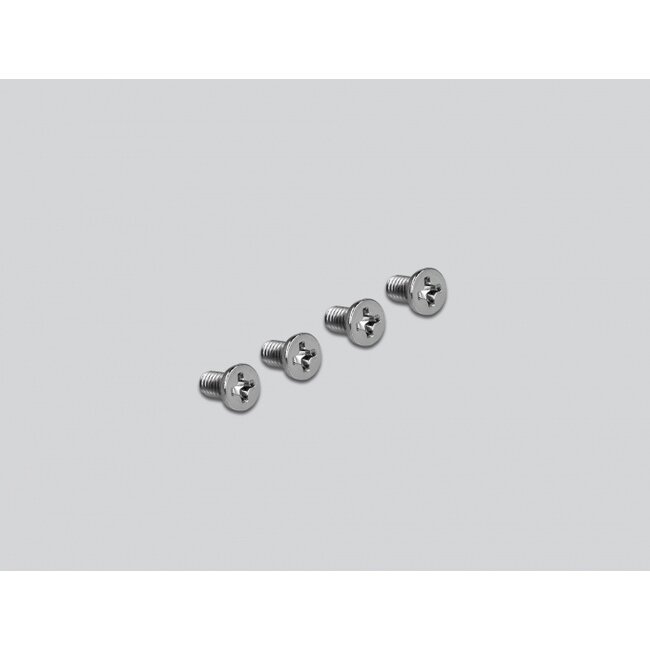

• Mounting material
• User manual
