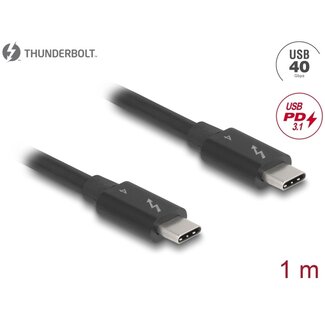

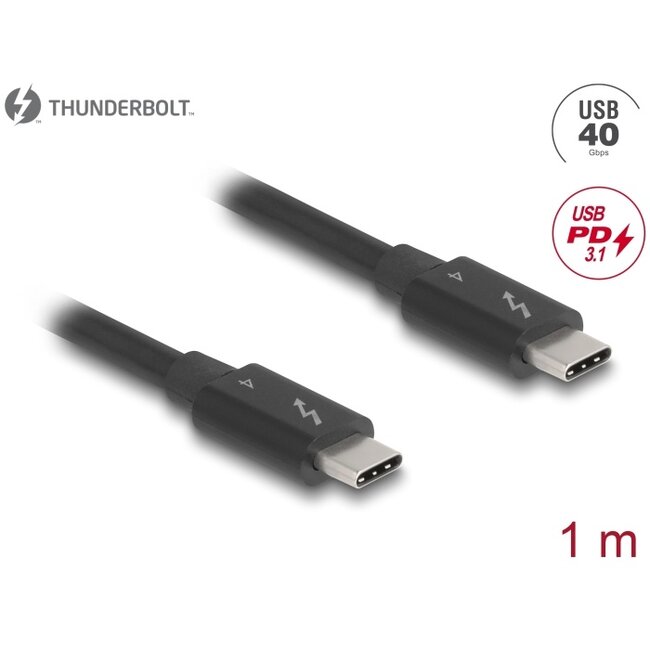

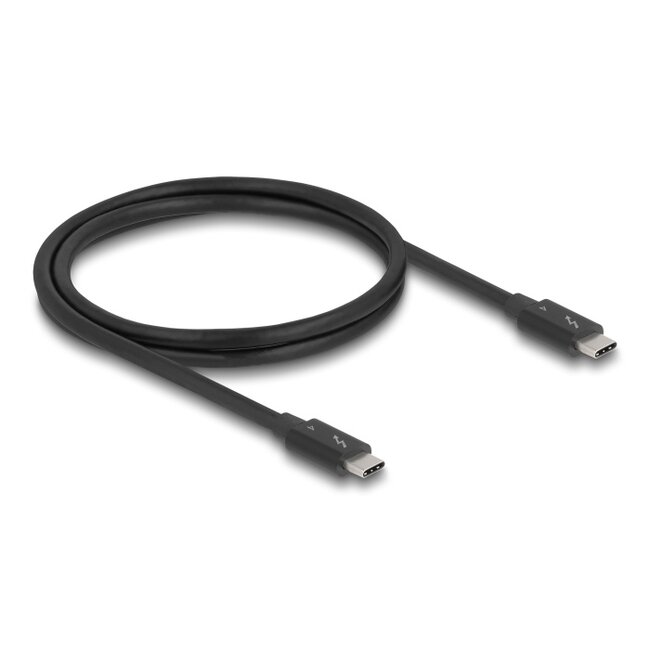

This Thunderbolt™ cable by Delock can be used universally and combines all the advantages of the Thunderbolt™ 4 interface. It supports the transmission of USB as well as DisplayPort, PCI Express and Ethernet signals and enables the connection of various devices, such as external enclosures, monitors, card readers and docking stations.
USB 40 Gbps
The cable enables data transfer rates up to 40 Gbps when connecting compatible devices. Of course, USB 3.0 or USB 2.0 devices can also be connected.
Connect DisplayPort monitors
The Delock cable supports DisplayPort 1.4a and thus enables the connection of one DisplayPort monitor with a screen resolution of up to 8K 60 Hz or two monitors with a resolution of up to 4K 60 Hz each.
USB Power Delivery (USB PD 3.1) support up to 240 watt
Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible.
• Connectors: 2 x Thunderbolt™ 4 male
• Downwards compatible to Thunderbolt™ 3
• Chipset: Etron E-Marker
• Cable gauge:
30 + 32 AWG data line
23 + 34 AWG power line
• Cable diameter: ca. 4.8 mm
• Gold-plated connector
• Triple shielded cable
• Data transfer rate:
Thunderbolt™ 4 up to 40 Gbps
USB4 up to 40 Gbps
DisplayPort 1.4a up to 32.4 Gbps
PCI Express 3.0 up to 32 Gbps
Thunderbolt™ Networking up to 20 Gbps (Peer-To-Peer)
USB 3.2 up to 10 Gbps
• Display resolution up to:
1 x 7680 x 4320 @ 60 Hz
1 x 5120 x 2880 @ 60 Hz
1 x 4096 x 2160 @ 120 Hz
2 x 4096 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.4a protocol (8 lanes, HBR3 and MST)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Daisy Chain up to 6 Thunderbolt™ devices (cascadable)
• Supports data and video on a single cable
• Dual channel, bi-directional data transfer
• Supports Extended Power Range (EPR)
• USB Power Delivery (USB PD 3.1) support up to 240 watt (48 V / 5 A)
• Power supply for Thunderbolt™ 4 devices with bus power (max. 15 W)
• Colour: black
• Length without connectors: ca. 1 m
• Thunderbolt™ cable
