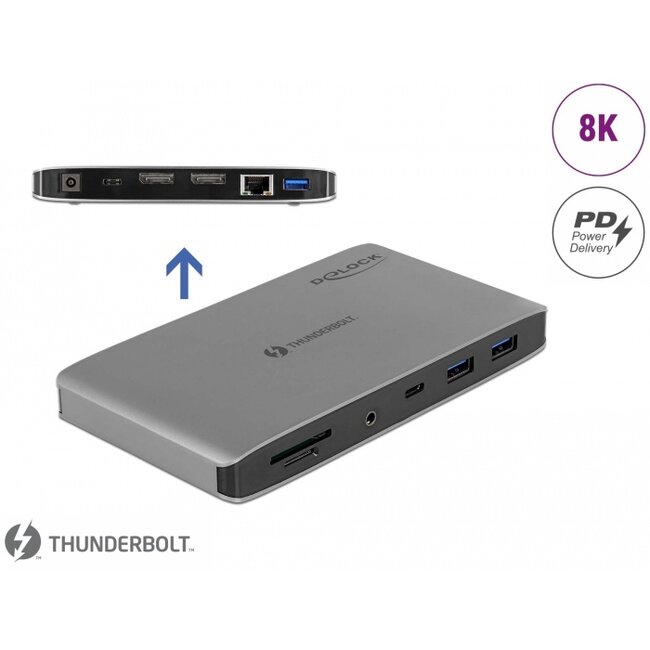

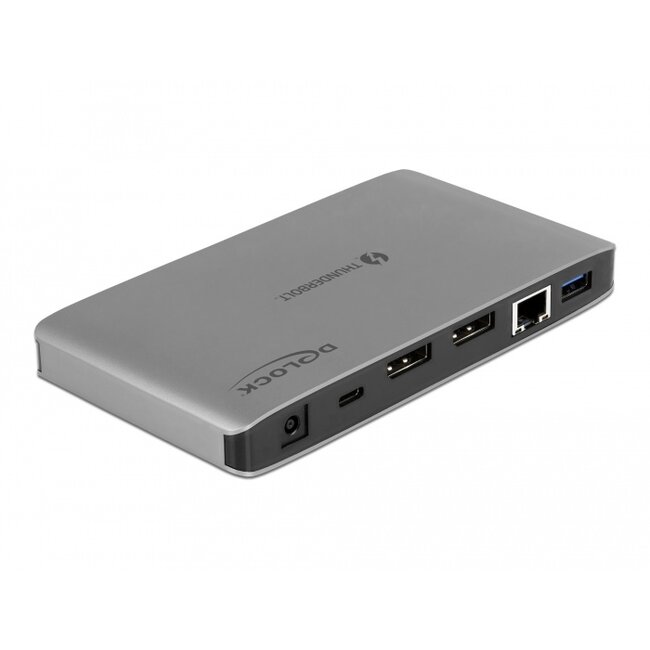

This Thunderbolt™ 3 docking station by Delock can be connected to a computer with a Thunderbolt™ 3 port and provides a variety of interfaces. Up to two monitors can be operated simultaneously at the DisplayPort outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.![]("https://bilder.tragant.de/logos/thunderbolt_250.jpg")
Certified
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Note
Only one additional external monitor can be connected to MacBook devices with M1 chipset.
• Connectors:
1 x Thunderbolt™ 3 female >
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female - Battery Charging
specification BC1.2
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
1 x SD slot
1 x Micro SD slot
1 x DC jack
• Chipset: Intel Titan Ridge

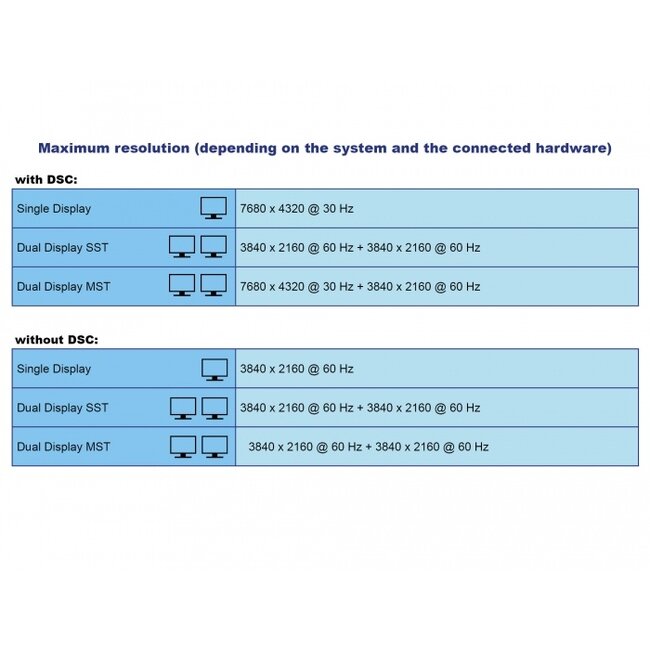

• Maximum resolution (depending on the system and the connected hardware):
with DSC:
| Single Display | 7680 x 4320 @ 30 Hz |
| Dual Display SST | 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz |
| Dual Display MST | 7680 x 4320 @ 30 Hz + 3840 x 2160 @ 60 Hz |
| Single Display | 3840 x 2160 @ 60 Hz |
| Dual Display SST | 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz |
| Dual Display MST | 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz |
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free Thunderbolt™ 3 port

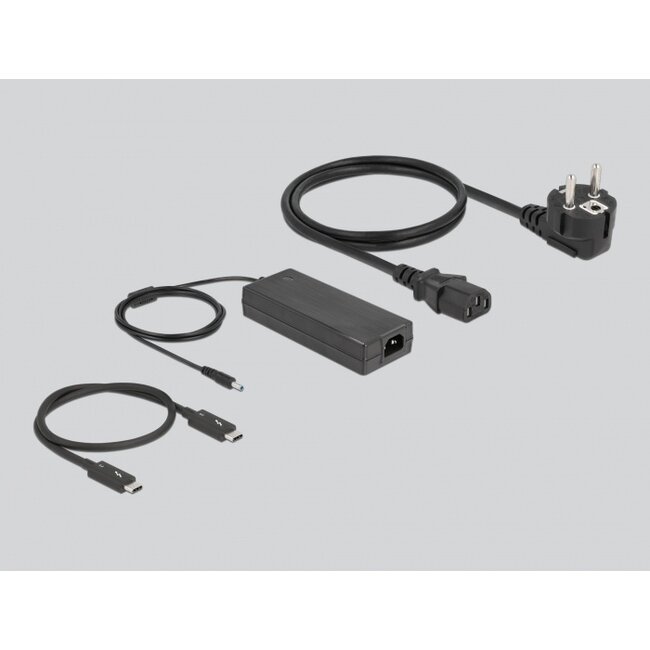

Package content
• Thunderbolt™ 3 docking station
• Thunderbolt™ 3 cable, length ca. 50 cm
• Power supply
• User manual
