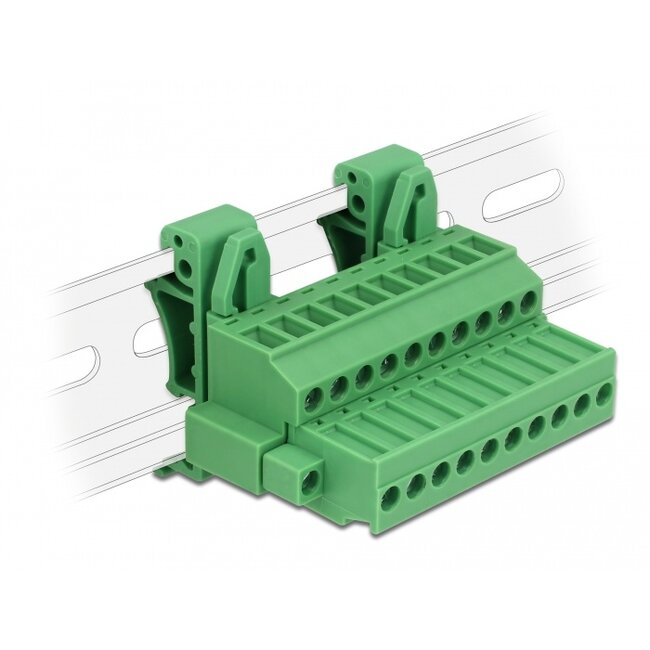

This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.
DIN Rail Mounting
This terminal block set can be fixed on a DIN rail with a width of 35 mm.
Terminal Block Set for DIN rail (Video)
Â

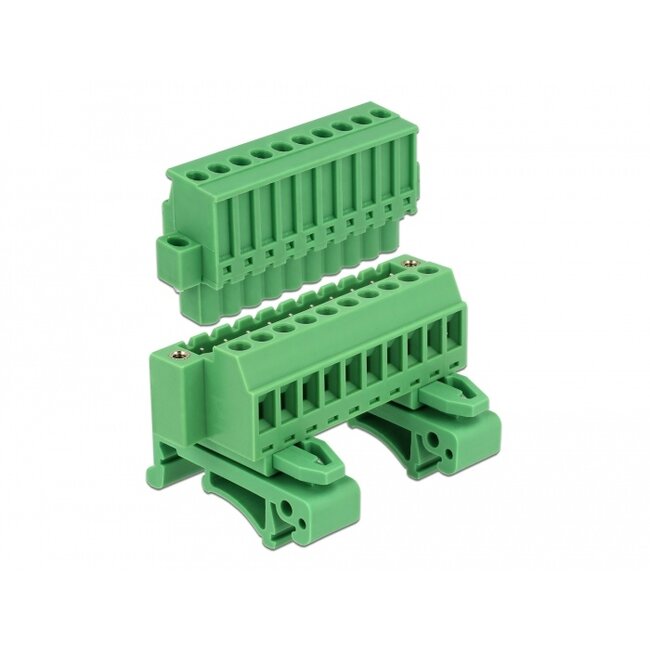

• Connectors:
Terminal block:
1 x 10 pin terminal block male
1 x 10 pin terminal block
Connection terminal:
1 x 10 pin terminal block female
1 x 10 pin terminal block
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 34.90 x 61.95 mm
• Terminal block
• DIN rail clip
• Connection terminal
