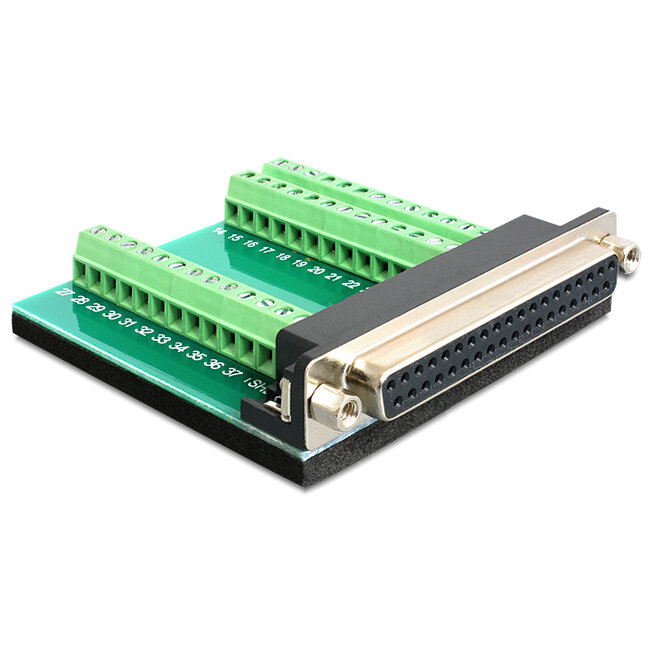

This D-Sub to terminal block adapter is made for special industrial application e.g. for connecting single wires with open cable heads. It also can be used in the hobby area for example for model railroading.
Specification• D-Sub 37 pin female
• 3 x 13 pin terminal block (37 pins connected)
• Pitch 3.81 mm
• Operating voltage / current: max. 12 V / 2 A
• Female port with screw nuts
• Dimension (LxWxH): 69.7 mm x 69.32 mm x 16.05 mm
• Terminal block
