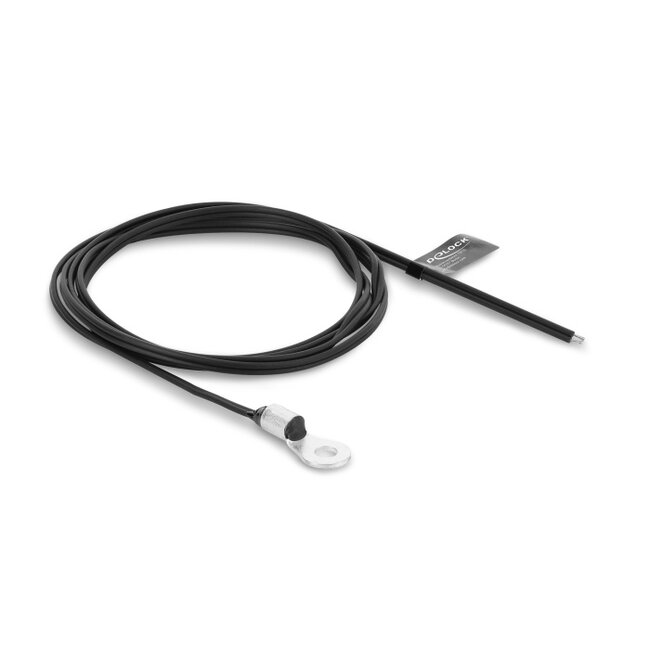

This NTC temperature sensor with M4 mounting by Delock reliably measures a wide temperature range. With a precise nominal resistance, it provides stable measurement results.
Flexible system integration
Thanks to the ring cable lug and the 1 m long, tinned FEP stranded cable, the sensor can be flexibly and easily integrated into various systems and is therefore very well suited for battery pack safety monitoring, BMS, or power supplies.
• Connectors:
1 x temperature sensor with ring cable lug, hole Ø M4
2 x open wires
• Sensor element: NTC thermistor
• Nominal resistance at 25 °C: 10 kΩ ±1 %
• B25/50 value: 3950 K ±1 %
• Temperature range: -60 °C ~ 200 °C
• Cable jacket material: FEP
• Length incl. connectors: ca. 1 m
• 1 x temperature sensor cable
