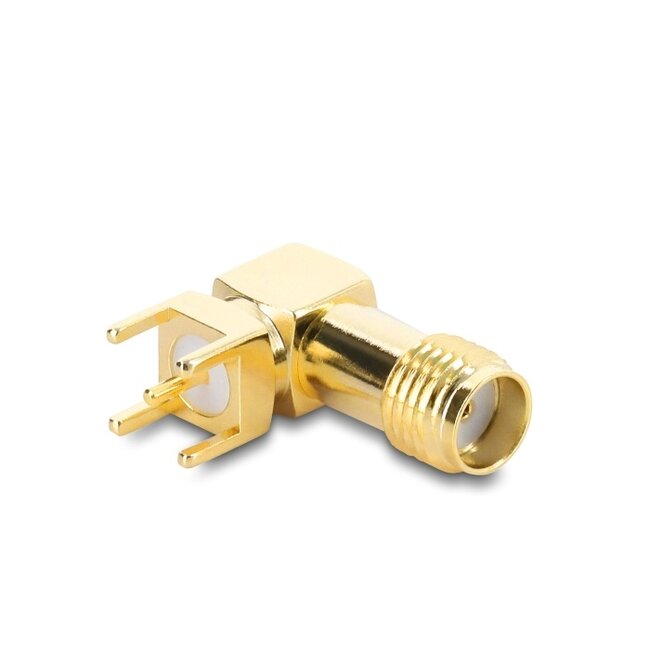

The SMA jack connector by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification• Connector: 1 x SMA jack 90°
• Frequency range: DC - 6 GHz
• Pin: copper gold plated
• Housing: copper gold plated
• Impedance: 50 Ohm
• VSWR: < 1.5
• Insulator: PTFE
• Insulation resistance: > 500 MOhm
• Mating Cycles: > 500
• Mounting type: through-hole mounting
• Soldering: 5 solder points
• Operating temperature: -55 °C ~ 165 °C
• Withstanding voltage: 1000 V / 50 Hz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Dimensions (LxWxD): ca. 17.0 x 13.0 x 6.0 mm
• SMA Jack
