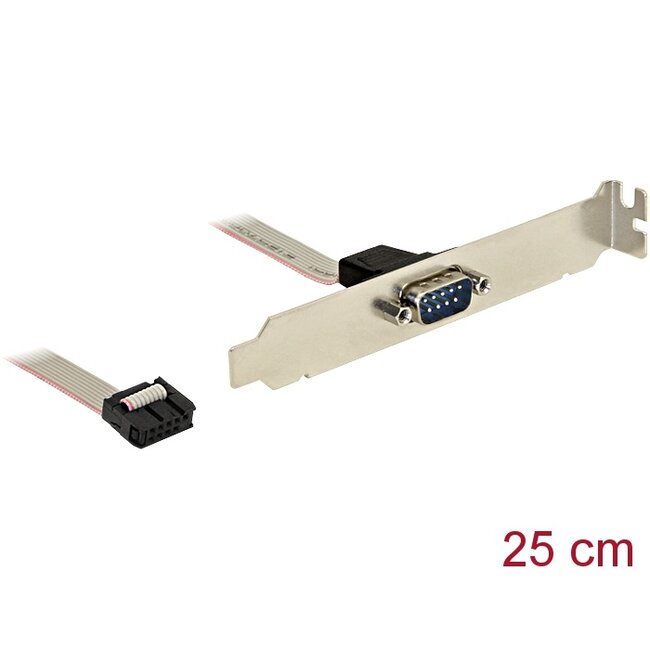

This Delock slot bracket can be installed into a free slot of your PC and enables you to lead out one internal COM port in order to connect one external serial device.
Specification• Connection: 1 x serial DB9 external
• Slot bracket for installation into PC slot
• Cable length: ca. 25 cm

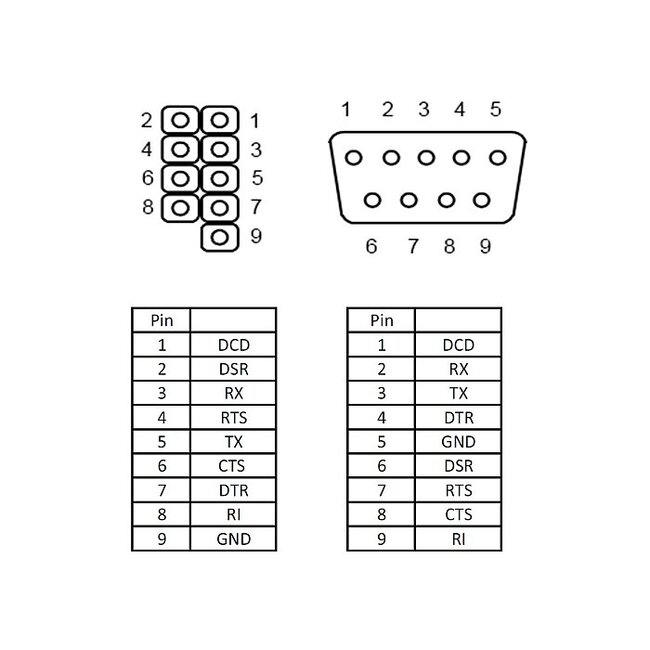

• Pin layout serial > internal port
1-1, 6-2, 2-3, 7-4, 3-5, 8-6, 4-7, 9-8, 5-9
• PC with a free PC slot
• One free COM port internal
Package content
• Slot bracket 1 x COM port
