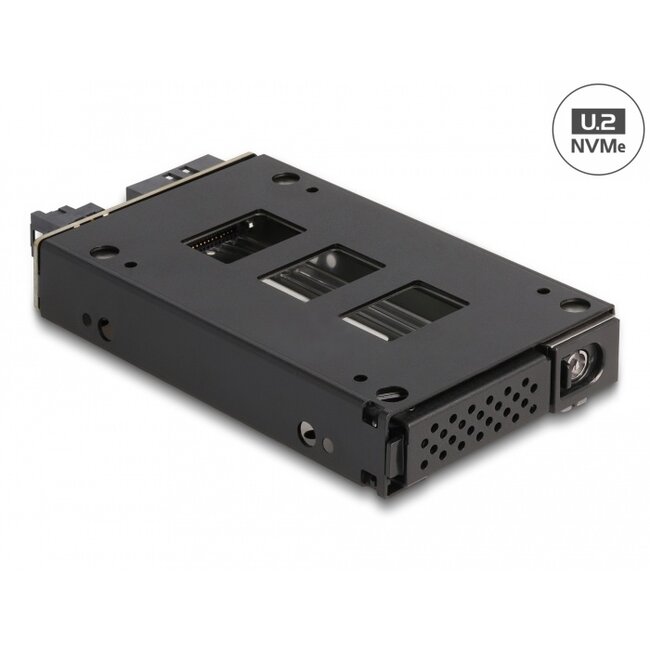

Description This solid metal mobile rack by Delock can be installed into a free 3.5″ or 5.25″ bay of a PC by the help of an optional frame. Furthermore, it is also possible to use the mobile rack directly in a server rack or 19″ storage enclosure.

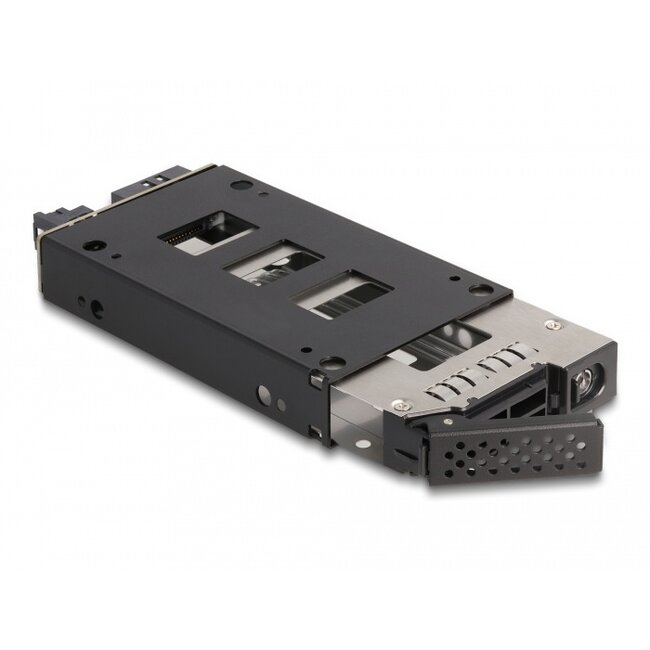

Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Tray with key lock and springs
The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations.
Specification • Connectors:
internal:
1 x SFF-8639 female
external:
1 x SFF-8643 female
1 x SATA 15 pin plug
• Suitable for 2.5″ U.2 NVMe SSD:
HDD height up to 15 mm
• Data transfer rate up to 32 Gbps
• Interface: PCIe Rev. 3.0
• Key lock
• 2 x LED indicator
• Dimensions (LxWxH): ca. 140 x 72 x 21 mm
System requirements • Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• A free U.2 port
• Power supply with a free SATA power connector
Package content
• Mobile Rack

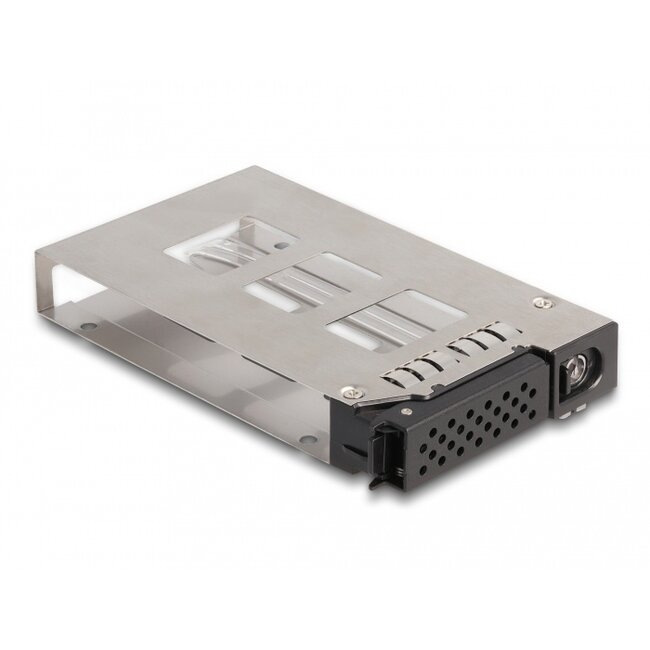

• 2.5″ mobile rack inner tray

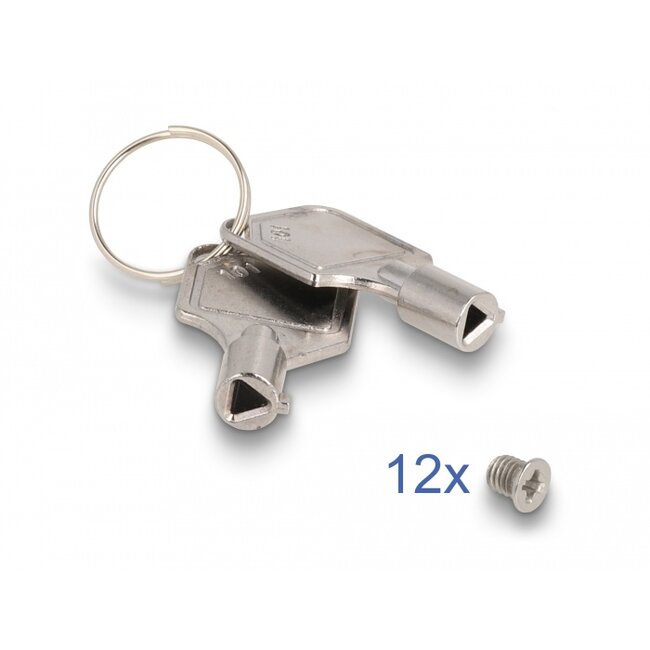

• 2 x keys
• Screws
• User manual
