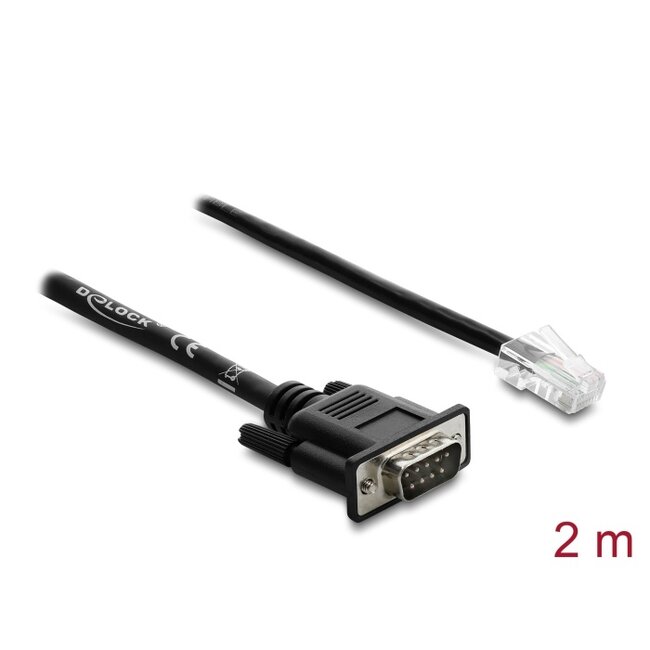

This RS-232/422/485 serial adapter by Delock connects serial Sub-D 9 interfaces with an RJ45 connector. The adapter cable thus offers a simple solution for transmitting serial data with a Cat.5 cable.
Transmission characteristics for the serial adapter
A standard LAN cable, e.g. category 5 (Cat.5) has much better transmission characteristics than a standard RS-232 cable. It enables higher data rates to be transmitted and longer distances to be bridged without additional signal amplification.
• Connectors:
1 x serial DB9 male with screws
1 x serial RJ45 plug
• Specification: TIA/EIA-561
• Signals:
1 x RJ45: RI(1), DCD(2), DTR(3), RXD(5), TXD(6), CTS(7), RTS(8), GND(4)
1 x DB9: RI(9), DCD(1), DTR(4), RXD(2), TXD(3), CTS(8), RTS(7), GND(5)
• Cable type: Cat.5e
• Cable length incl. connectors: ca. 2 m

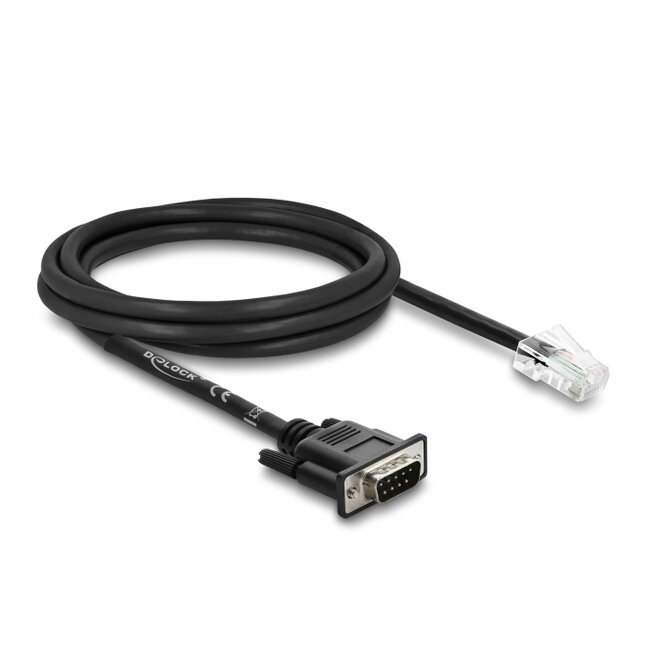

• Adapter cable DB9 male to RJ45 plug
