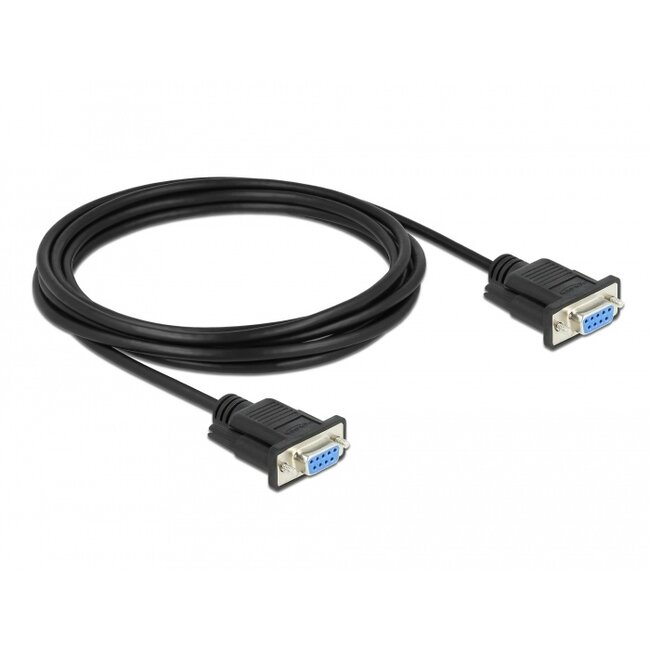

This serial cable by Delock is a full handshaking null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange.
Mini D-Sub9 connector

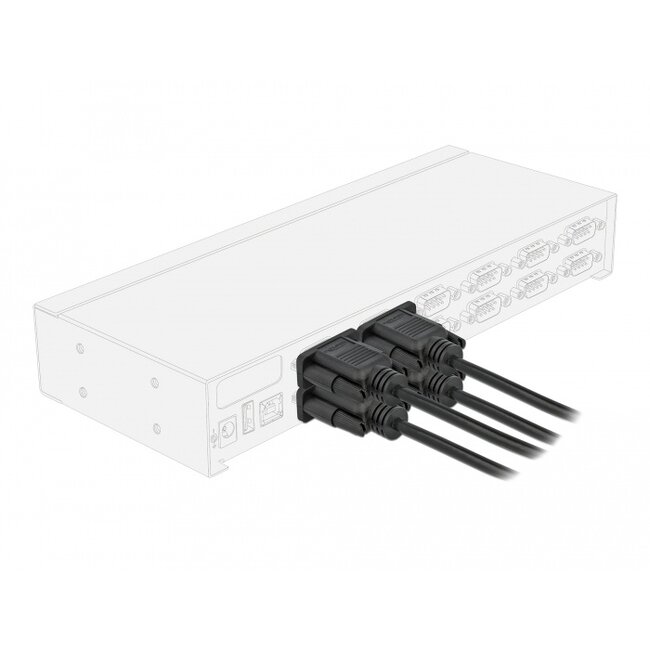

These cables fit on any RS-232 port, as the mini D-Sub9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.
• Connectors:
1 x serial D-Sub9 female with screws >
1 x serial D-Sub9 female with screws
• Cable gauge: 28 AWG
• Full handshaking cable

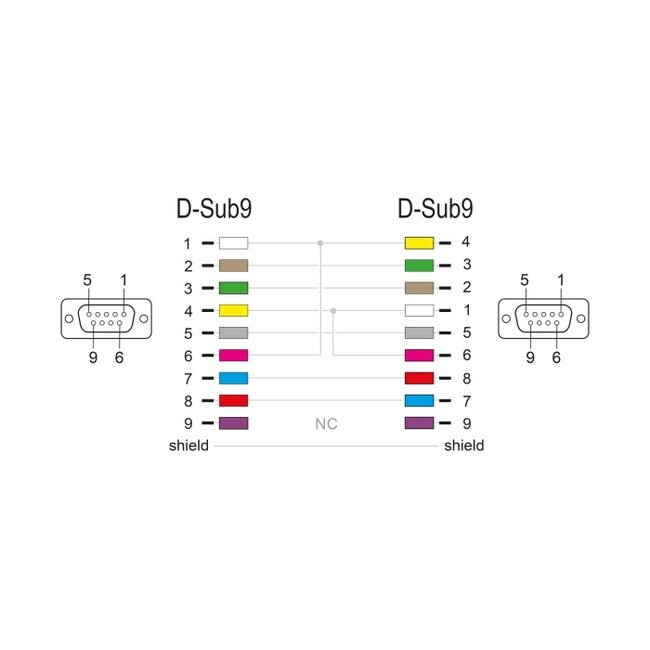

• Pin assignment: 1+6 – 4, 2 – 3, 3 – 2, 4 – 1+6, 5 – 5, 7 – 8, 8 – 7, shielded
• Colour: black
• Insulator: PVC
• Screw type: #4-40 UNC
• Cable diameter: ca. 5 mm

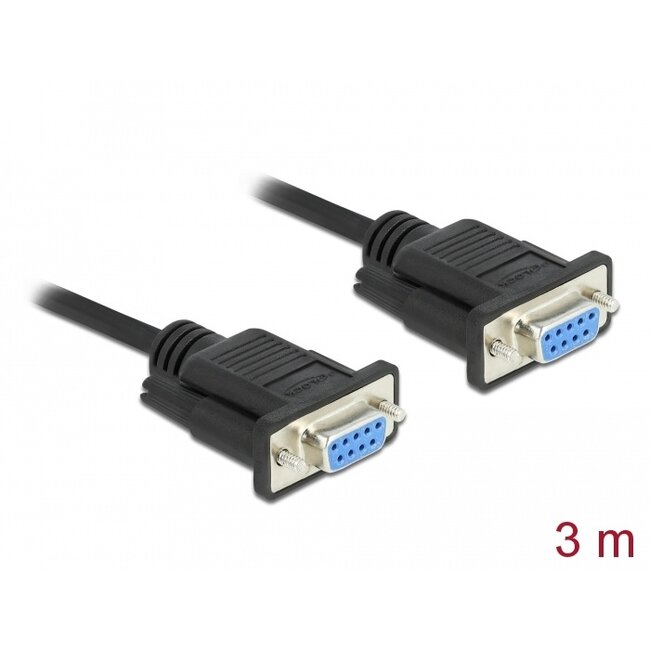

• Cable length incl. connectors: ca. 3 m
• A free D-Sub9 male port
Package content
• Cable
