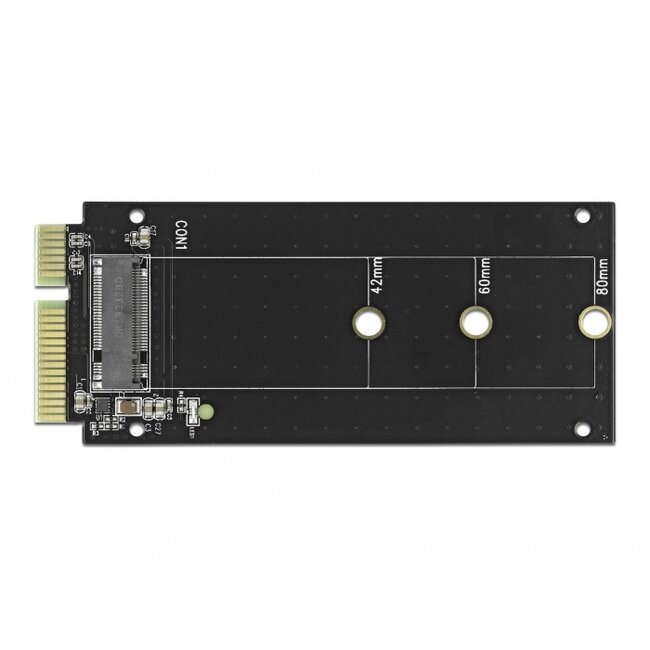

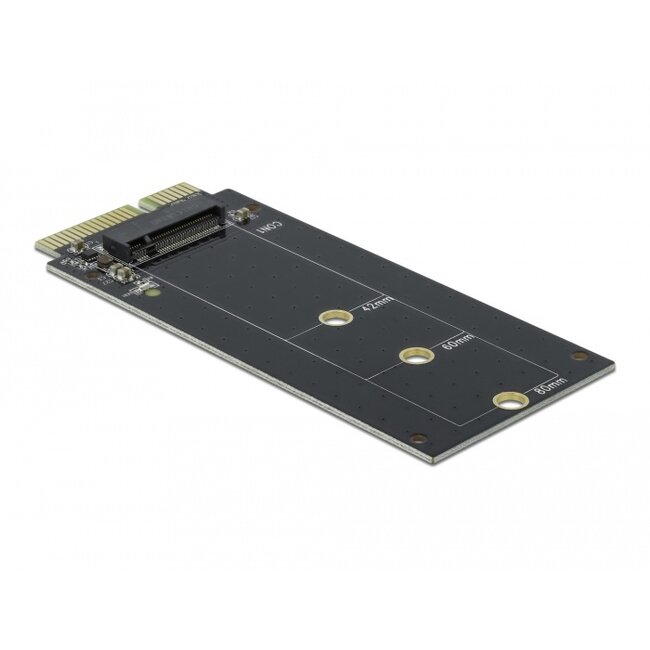

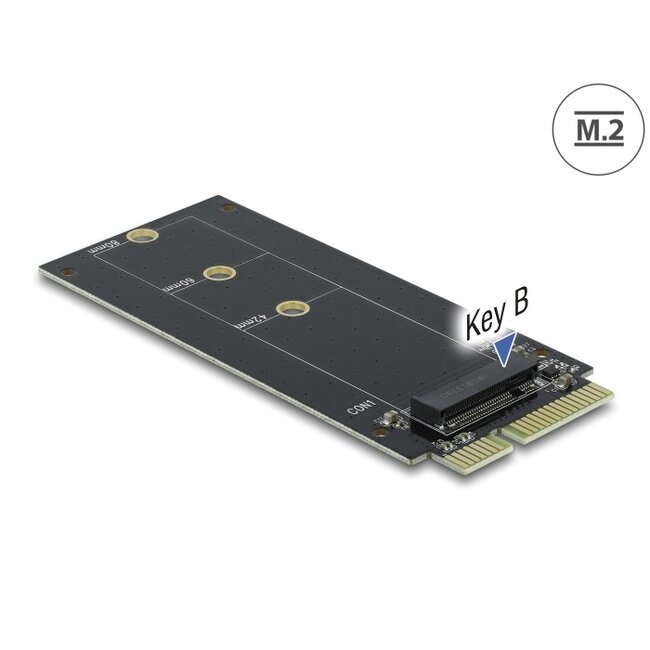

This adapter by Delock enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format. The adapter will be installed into the system internally through a SATA 22 pin interface.
Perfect accessory

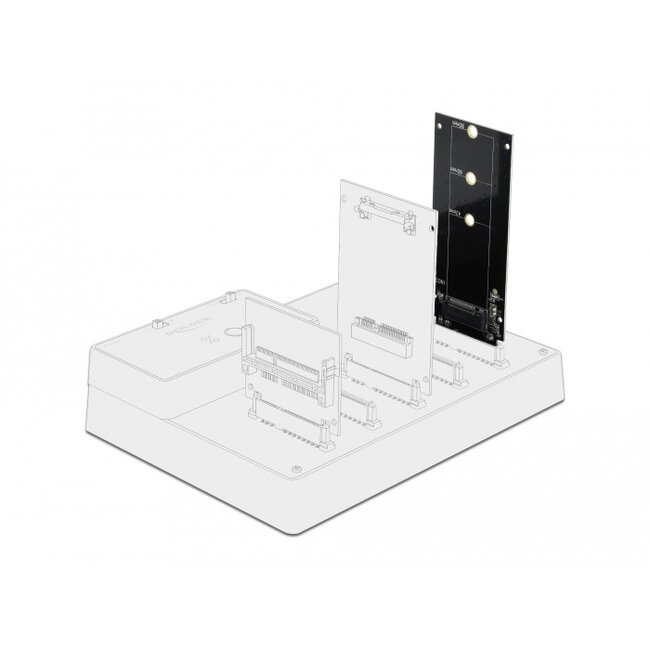

This item is suitable as an accessory for the Delock docking and clone station 64098. Thus, M.2 SATA SSDs can be used and cloned.
• Connectors:
1 x SATA 22 pin plug
1 x 67 pin M.2 key B slot
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
• 1 x LED indicator
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 97 x 45 x 4 mm
• A free SATA 22 pin interface
Package content
• Adapter
• Mounting material
• Screwdriver
