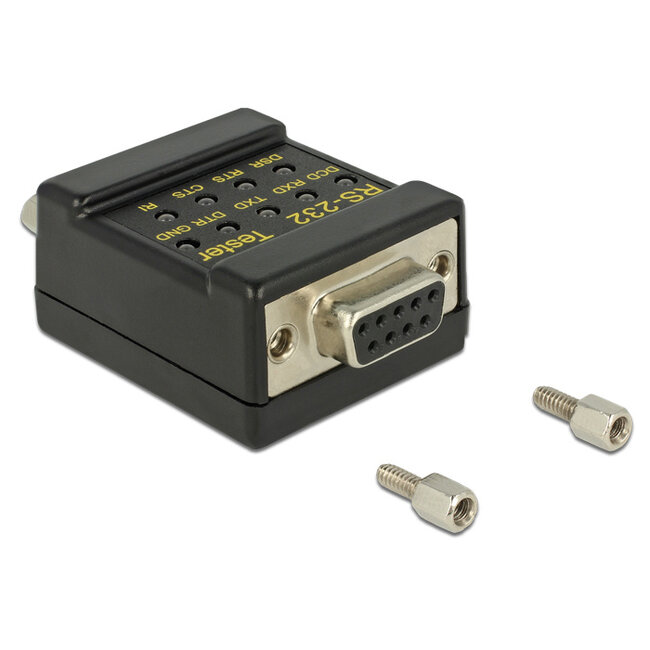

This RS-232 tester by Delock is compact and suitable as a connection and interface tester without any additional power supply. The 9 LEDs (red, green, off) have two colours and indicate the logical state of each of the data lines. It is also possible to determine e.g. interruptions, crossed wires or a short circuit.
Specification• Connectors:

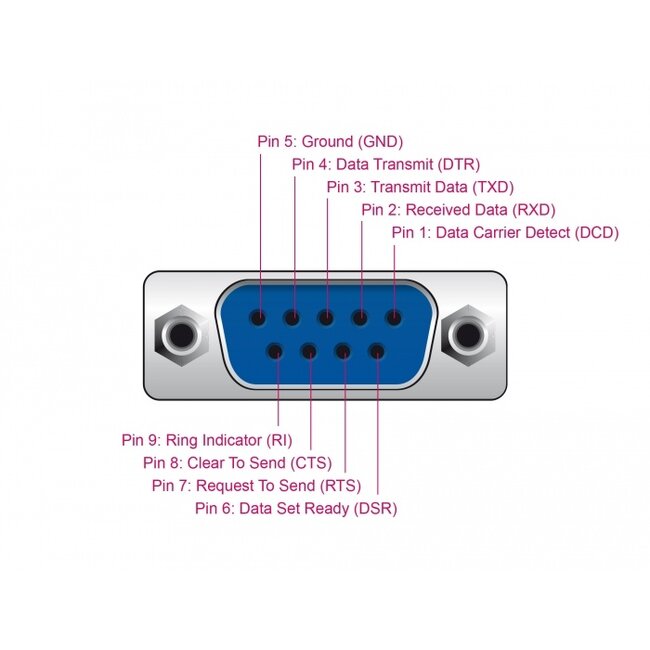

1 x DB9 female

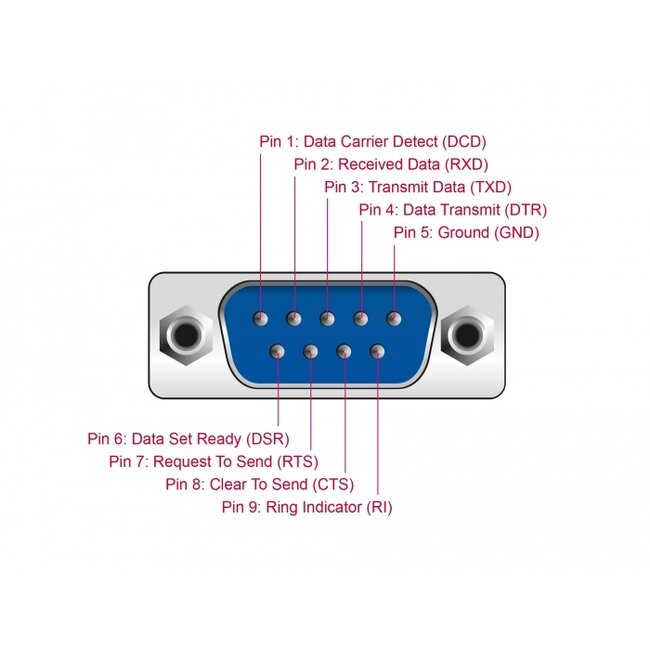

1 x DB9 male
• RS-232 (TIA/EIA) specification
• Suitable for indoor use
• LED indicator: 9 x bicolour, red (V+), green (V-)
• Plug & Play
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 45 x 35 x 21 mm
• Weight: ca. 55 g
• One RS-232 interface DB9
Package content
• RS-232 tester
• User manual
