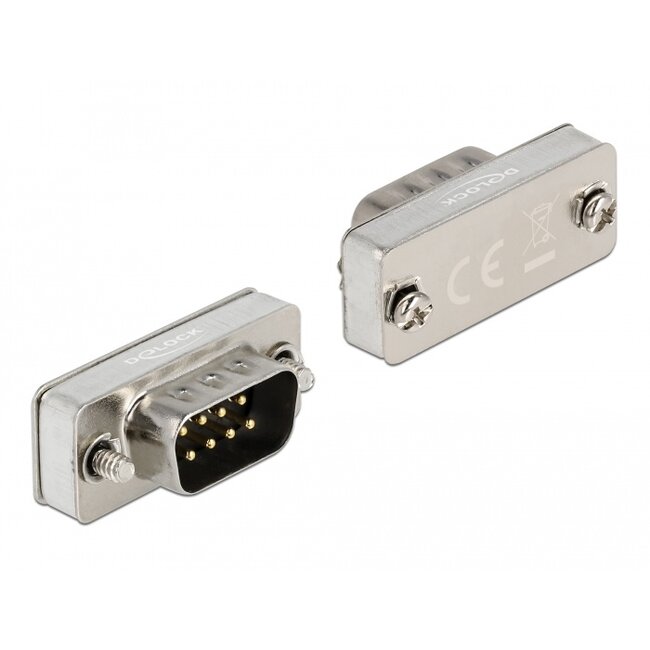

This RS-232/422/485 loopback connector by Delock is suitable for error and data analysis and for testing purposes at RS-232/422/485 lines.
Specification• Connector: 1 x Serial RS-232/422/485 DB9 male with screws

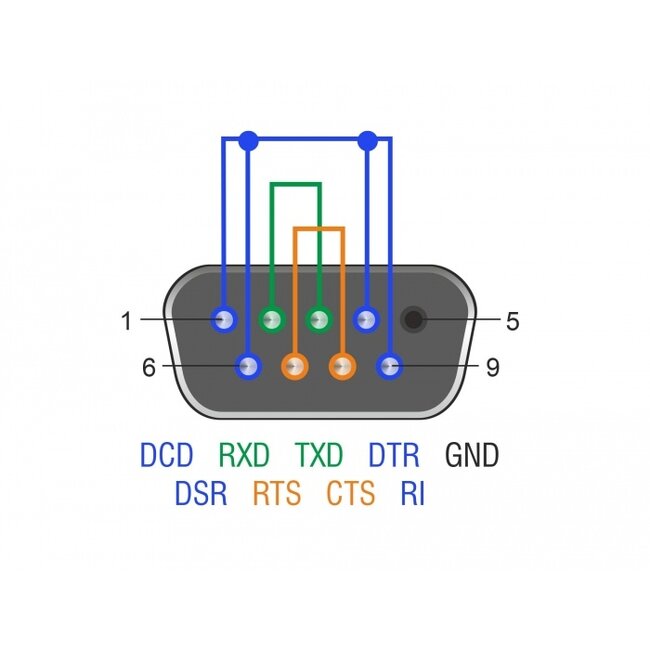

• Pinout:
RXD (2) - TXD (3)
RTS (7) - CTS (8)
DCD (1) - DTR (4) - DSR (6) - Ri (9)
• Screw type: #4-40 UNC
• Colour: silver
• Dimensions (LxWxH): ca. 31.0 x 12.6 x 11.8 mm
• One free RS-232/422/485 DB9 interface
Package content
• RS-232/422/485 DB9 Loopback adapter
