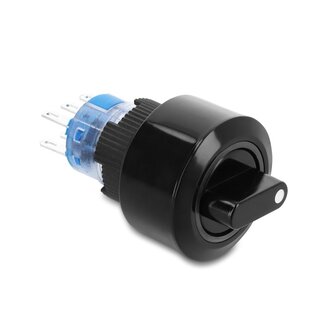

This cam or rotary switch by Delock has three detent switch positions with a changeover switch on the right and left side and a central rest position. The two changeover switches can be reliably used as normally closed and normally open contact for electromagnets, contactor coils, relays, valves or control lines in different circuits.
Installation in control panel or switch housing
The rotary switch by Delock is ideal for installation in control panels or switch housings for example in industrial, control or regulation technology.
Please Note
• The installation should only be carried out by qualified electricians in compliance with the usual national power supply guidelines.
• Earthing is necessary for low-voltage systems to ensure the safety and functionality of the system.
• Connectors:
6 x solder connection
2 x Common (C)
2 x Normally closed (NC)
2 x Normally open (NO)
• Schaltertyp: Rotary Switch
• Contact type: DPDT
• Function: switching
• Actuator: high
• Load limit: (Ui): AC 250 V / (Ith): 5 A
• Contact resistance: max. 50 mΩ
• Contact load:
24 V DC resistive load 1 A, inductive load 0.7 A
110 V DC resistive load 0.2 A, inductive load 0.1 A
110 V AC resistive load 1 A, inductive load 0.7 A
220 V AC resistive load 0.5 A, inductive load 0.5 A
• Mounting hole diameter: ca. 22 mm
• Thread size: M16
• Mounting depth: ca. 40 mm
• Material: plastic
• Contact: silver alloy
• Mechanical service life: min. 1,000,000 cycles
• Electrical service life: min. 50,000 cycles
• Protection class: IP65
• Operating temperatur: -25 °C ~ 65 °C
• Dimension (LxD): ca. 39 x 26 mm
• Rotary switch
