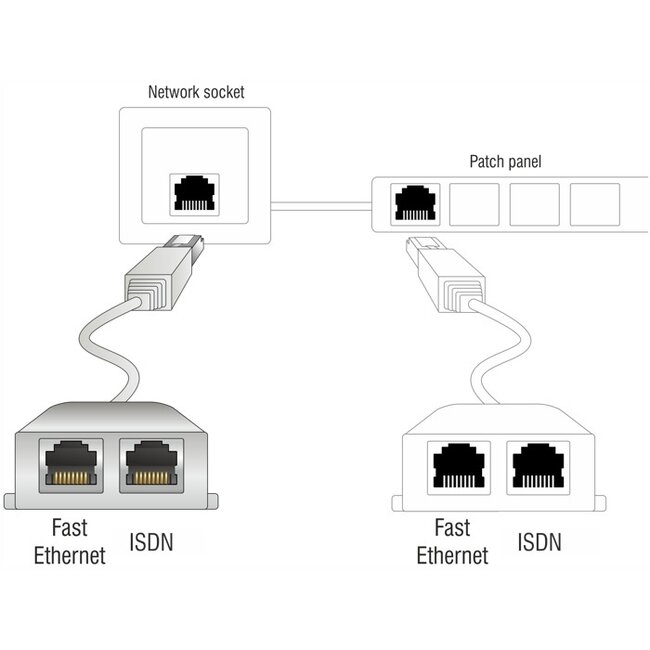

This Y-adapter by Delock enables you to double a fixed installed network connection. Thus you can use one single cable for one 10/100 Ethernet and one ISDN connection. This application requires two adapters, which need to be connected with each cable side to the networking socket or patch panel. Hence you get two female ports instead of only one.
Note
The adapter can not be used alone; a second adapter or a corresponding patch panel with 2 ports is always necessary.
• Connectors: 1 RJ45 plug > 2 RJ45 jack
• Anodized plastic case
• Pin layout:
| Plug | 1 2 3 6 | 4 5 7 8 | |
| Socket1 | 1 2 3 6 | - | Fast Ethernet |
| Socket2 | - | 4 5 3 6 | ISDN |
• A 8 pin Cat.5 cable with RJ45 female ports on both sides (structured cabling, wall socket or patch panel)
• A second port doubler
Package content

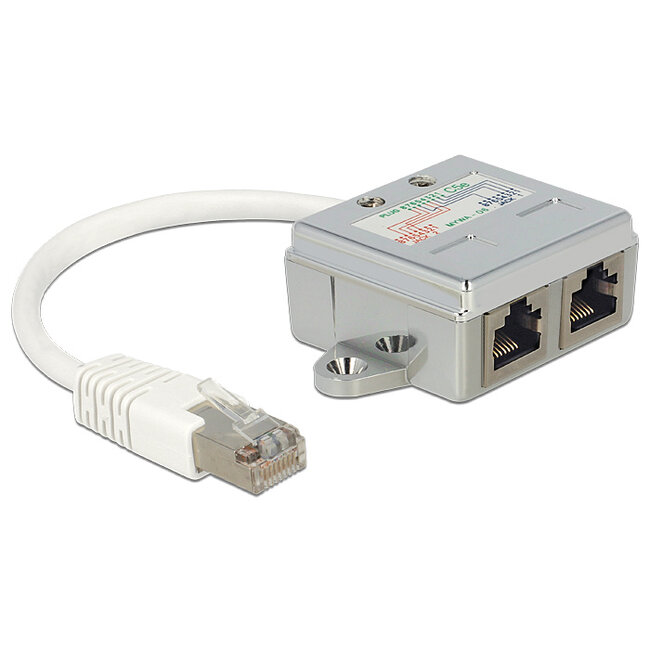

• RJ45 Port Doubler
