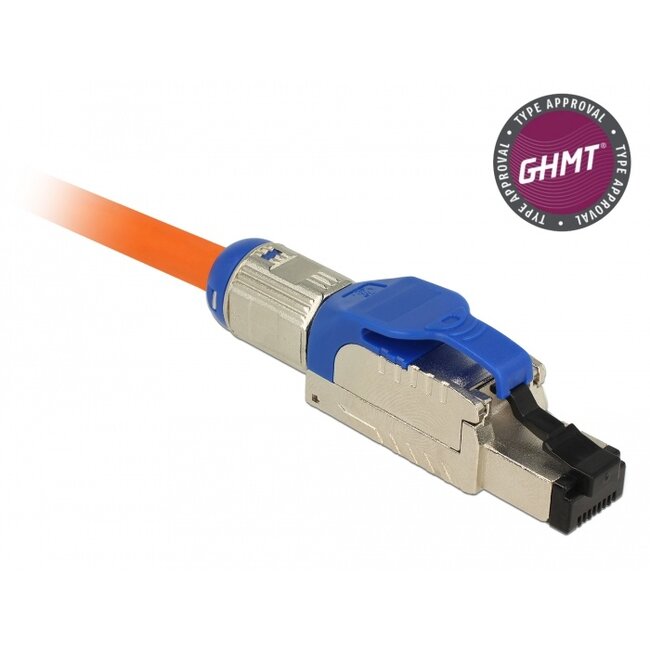

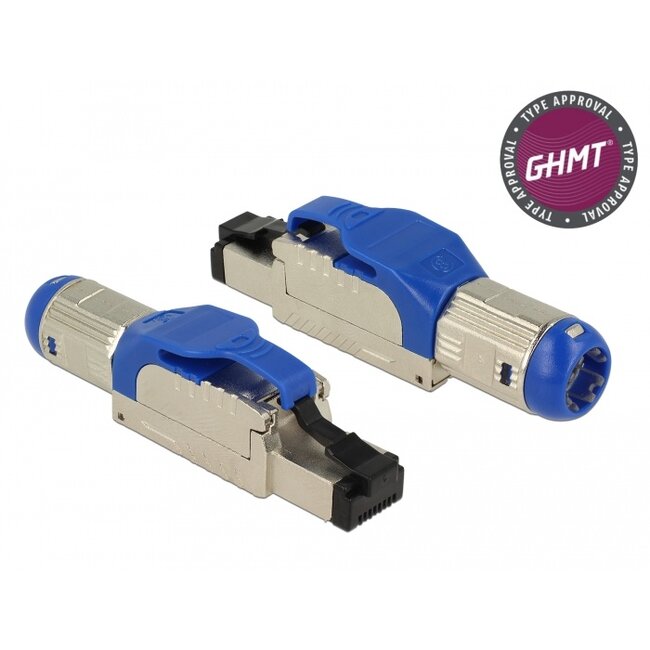

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification• Connectors: 1 x RJ45 plug
• Cable routing 180°
• Shielded (STP)
• Cat.8.1 specification
• GHMT certified: 2 Connector Channel (30m), Copper, Class I up to 2GHz,
ISO/IEC 11801-1 Ed.1.0 (2017-11)
• Screwable cable boot
• Material: zinc die cast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 7.0 - 8.5 mm
• Dimensions (LxWxH): ca. 66.0 x 18.4 x 13.8 mm

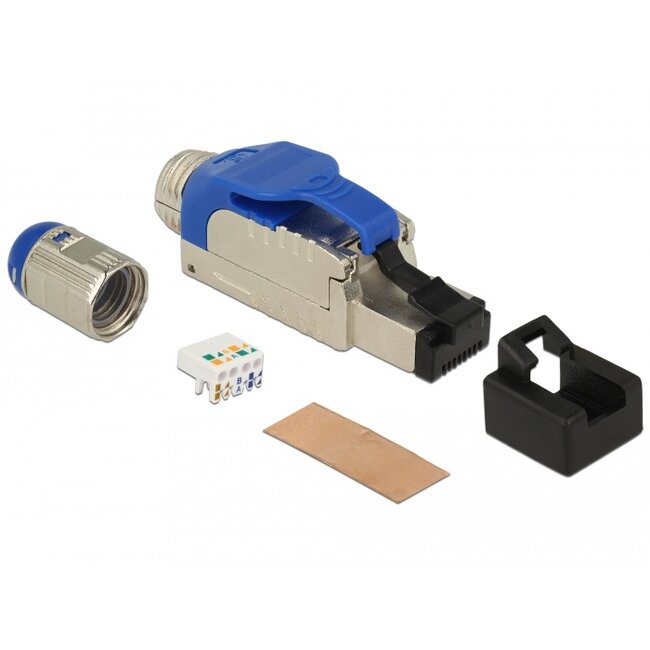

• RJ45 plug
• Cable manager
• Dust cover
