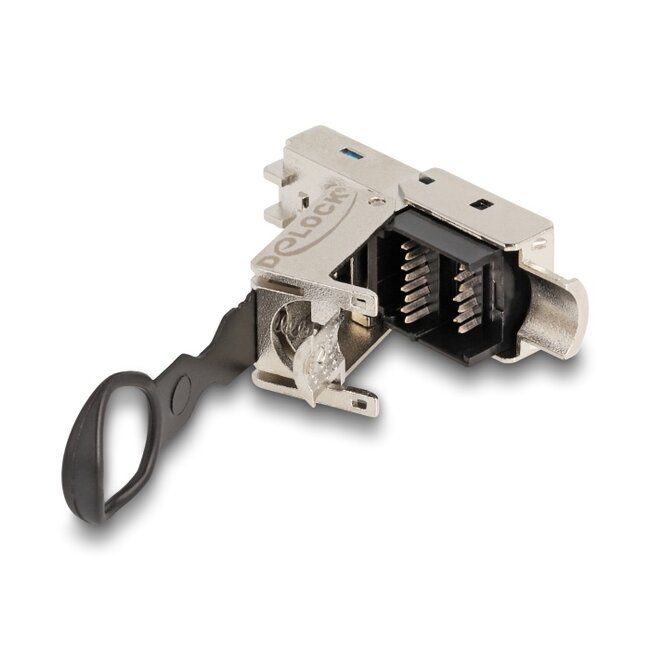

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
With unlocking latch (push and pull)
The latch on the RJ45 plug is a special addition to the item, when pulled, the RJ45 plug releases from the socket. The push and pull mechanism pushes the latch on the RJ45 plug downwards so that the latch no longer has to be pushed by itself.
• Connectors:
1 x RJ45 plug (8P/8C)
1 x LSA (toolfree)
• Cat.6A specification
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• For cable diameter from 5.0 - 8.5 mm
• With unlocking latch (push and pull)
• Material: zinc diecast
• Dimensions (LxWxH): ca. 64.7 x 15.7 x 11.7 mm
• RJ45 plug
• Cable manager
• Zip-tie
