This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.

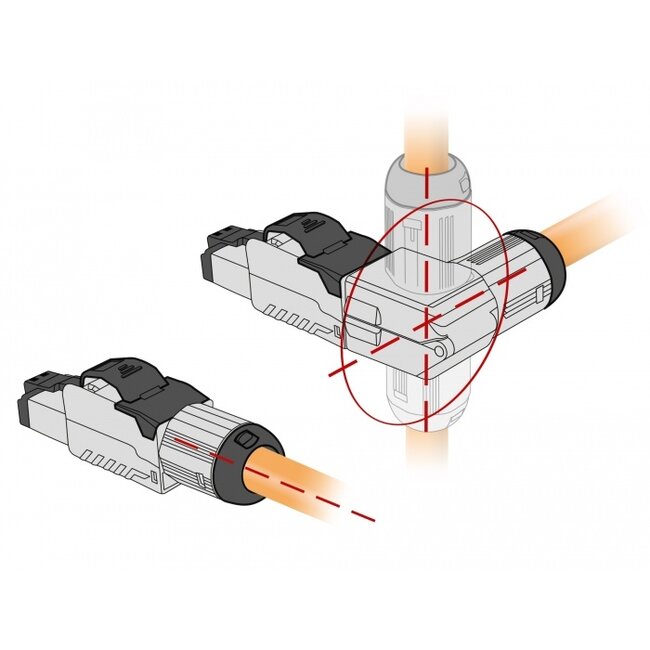

The angle cap can be applied in 4 different directions. Thereby all applications where angled mounting is required can be covered with a single connector. Additionally, the cable can also be led straight back when the angle cap is not used.
• Connectors: 1 x RJ45 plug angled
• Shielded (STP)
• Cat.6A specification
• Screwable cable boot
• Material: zinc die cast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 6.0 - 7.5 mm
• Dimensions (LxWxH): ca. 63.4 x 33.2 x 13.8 mm

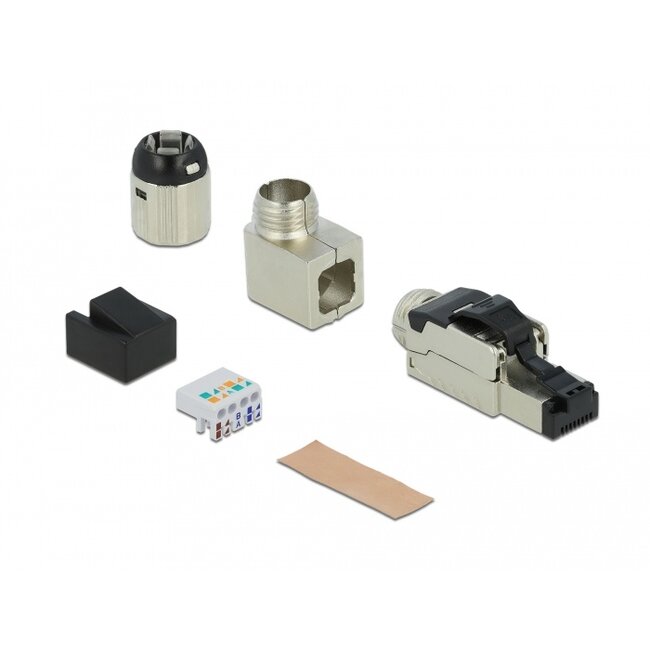

• RJ45 plug
• Angle cap
• Cable manager
• Copper foil
• Dust cover
