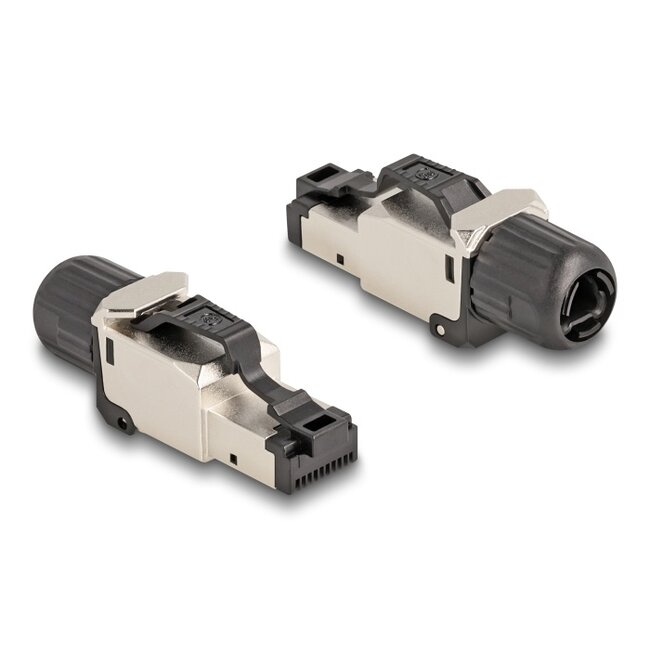

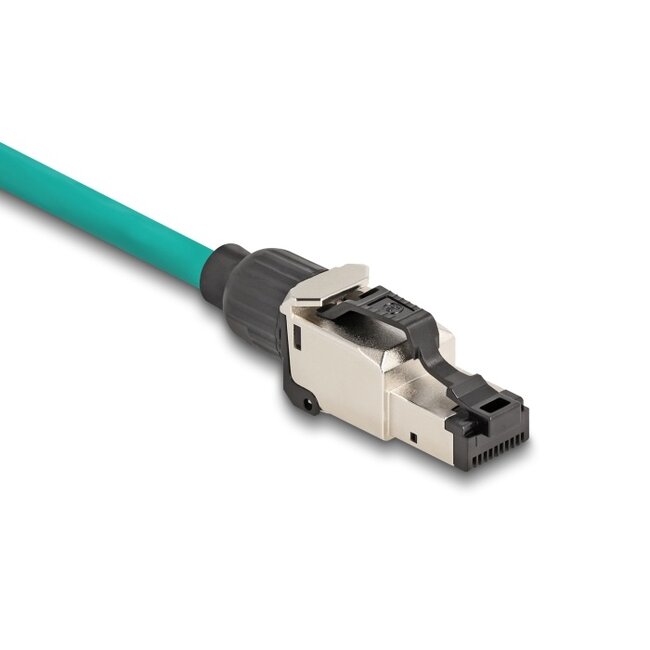

This RJ45 plug by Delock can be used to connect PROFINET network cables. Installation of the plug to various cable types is tool-free and time-saving.
Note
The connector is only designed for 2 wire pairs and 100 Mbps.
• Connectors:
1 x RJ45 (8P/4C) plug
1 x LSA block
• Cable routing 180°
• Shielded (STP)
• Compliant with Cat.5e requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and EN 60603-7-3
• Supports PoE++
• PROFINET pinout
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Operating temperature: -40 °C ~ 68 °C
• Dimensions (LxWxH): ca. 48.7 x 16.4 x 13.9 mm

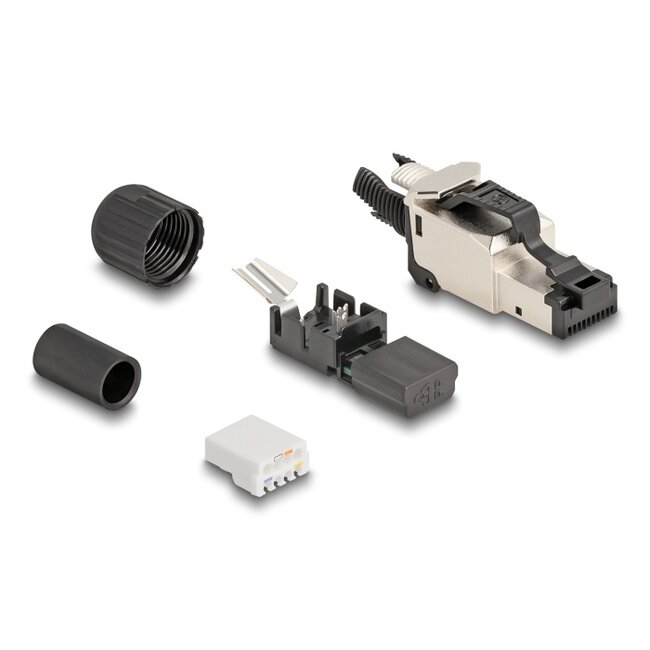

• RJ45 plug
• Dust cover
• Cable manager
• Installation manual
