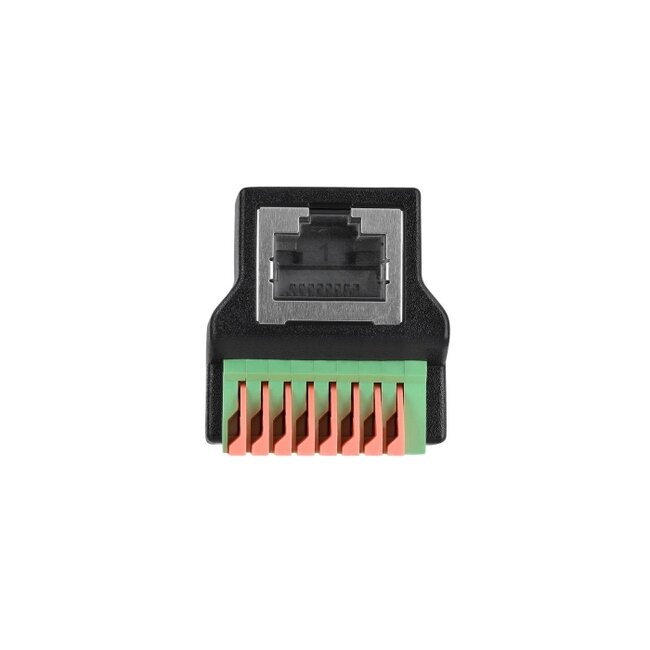

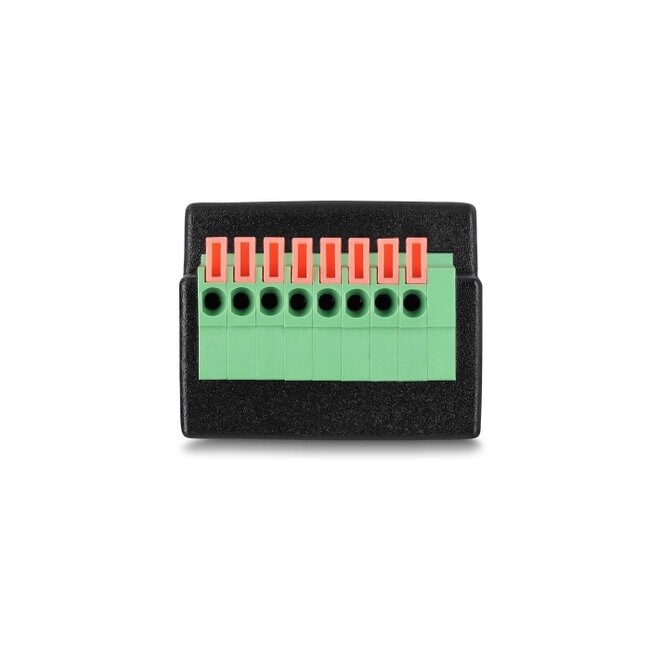

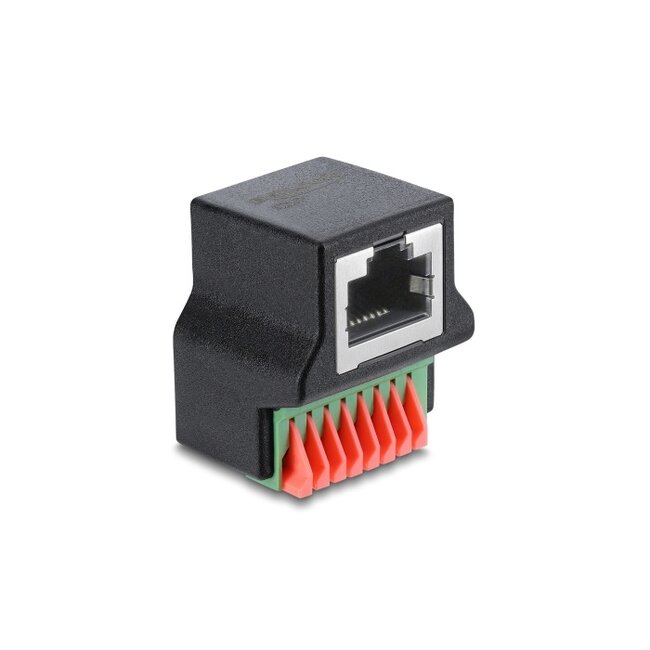

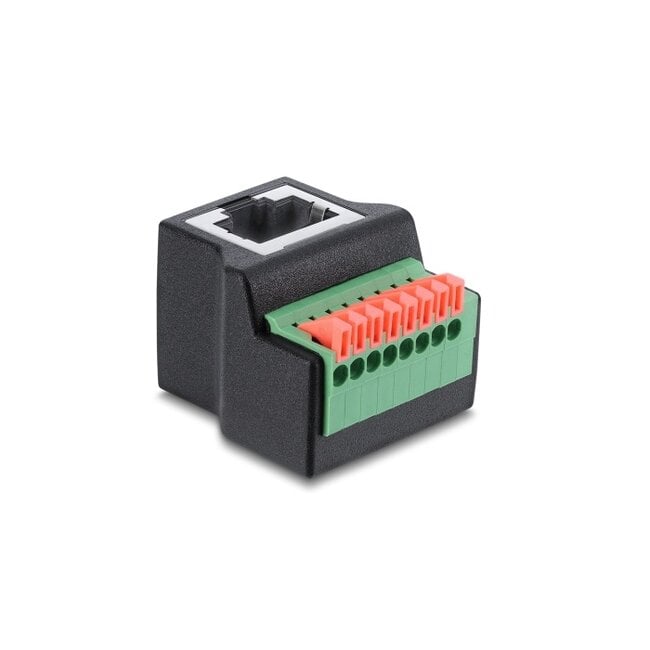

This terminal block adapter by Delock can be used to connect bare wires. The adapter is suitable for industry applications as well for the hobby area.
90° angled module – space-saving and flexible for tight spaces
Due to its 90° angled design, this model is ideal for applications with limited space and ensures space-saving cable routing.
• Connectors:
1 x RJ45 jack 90° angled
1 x 8 pin terminal block with push-button
• Pitch: 2.54 mm
• Pin assignment: 1:1
• Voltage: 125 V
• Current: max. 1.5 A
• Useable for a cable gauge from 24 to 18 AWG
• Housing material: PBT
• Housing colour: black
• Dimensions (LxWxH): ca. 28.5 x 27.0 x 21.1 mm
• Adapter
