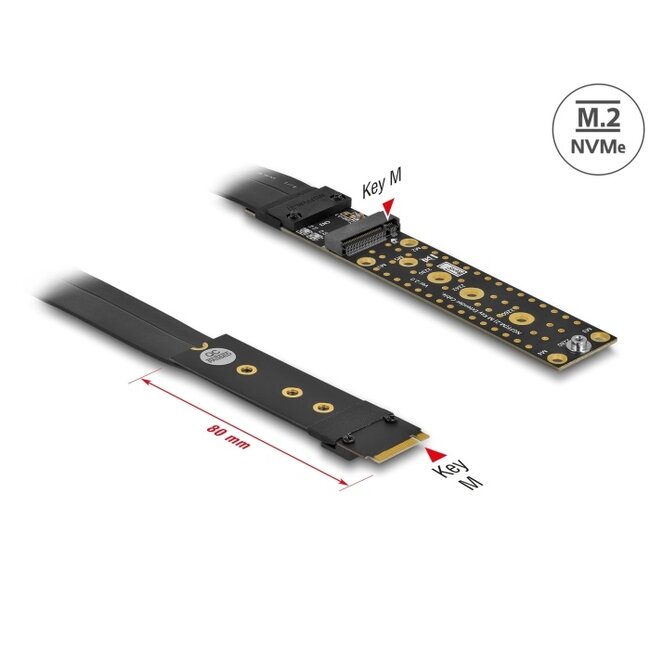

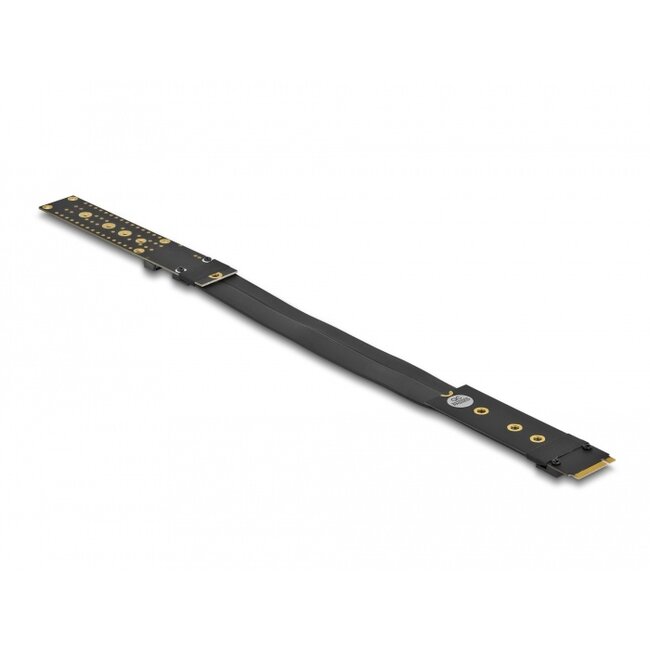

This riser card by Delock can be used to attach and connect an M.2 SSD to an optimal position in the case. The flexible cable allows a space-saving installation inside the computer case.
Specification• Connectors:
1 x 67 pin M.2 Key M male
1 x 67 pin M.2 key M slot
• Interface: PCIe / NVMe
• Form factor: M.2 2280
• Cable gauge: 30 AWG
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• LED indicator
• Compatible to PCI Express V4.0
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Length without connectors: ca. 20 cm
• Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016
• A free M.2 interface with key M

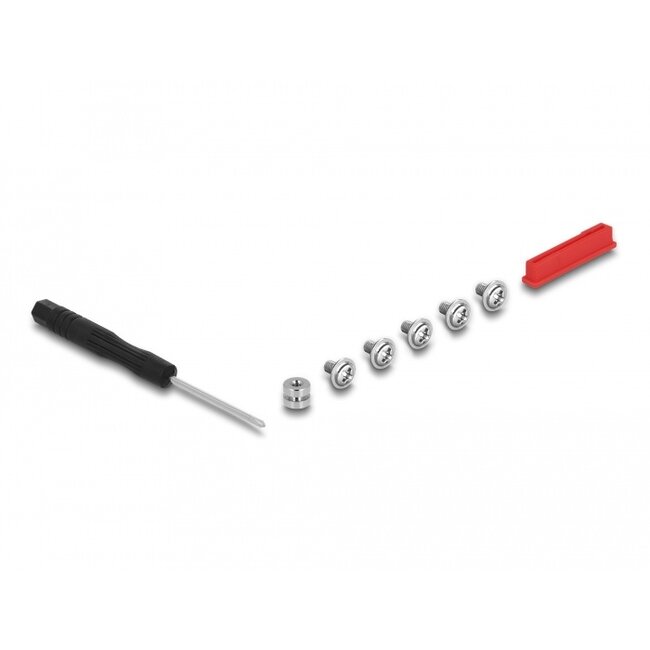

Package content
• Adapter
• Screwdriver
• Mounting material
• User manual
