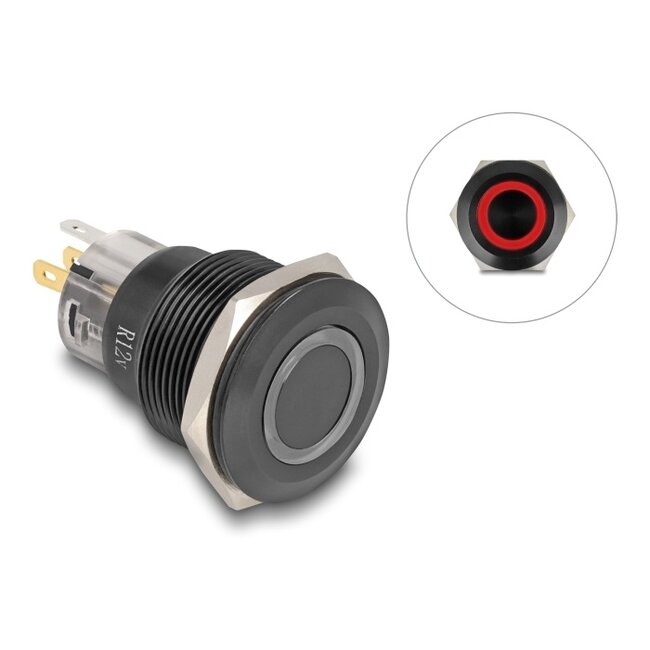

This push switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Switch
Unlike a button, a switch remains in its position after being actuated. Examples of switches are toggle switches, rotary switches or slide switches. The light switch is probably the best-known example.
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

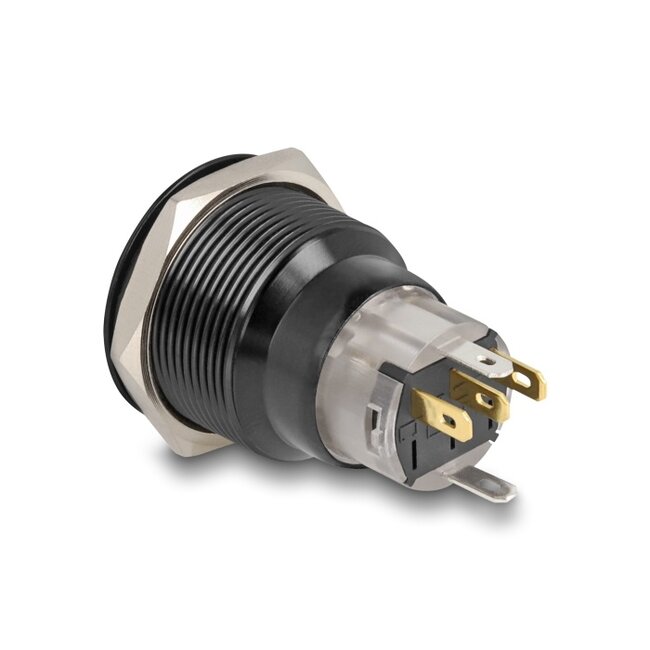

• Connectors: 4 x solder connection
• Switch type: 1NO + 1 NC
• Switching voltage: AC 250 V~ / 2 A
• Number of contacts: 4
• Number of open contact: 1
• Function: latching
• Actuator: flat
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: ca. 22 mm
• Hexagon nut spanner width: 25 mm
• Mounting depth: ca. 32 mm
• Thread size: M22
• LED lighting: red
• LED voltage: 12 V
• LED type: ring
• Material: plastic
• Mechanical life: 1,000,000 cycles
• Electrical service life: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): ca. 37 x 25 mm
• Push-button
