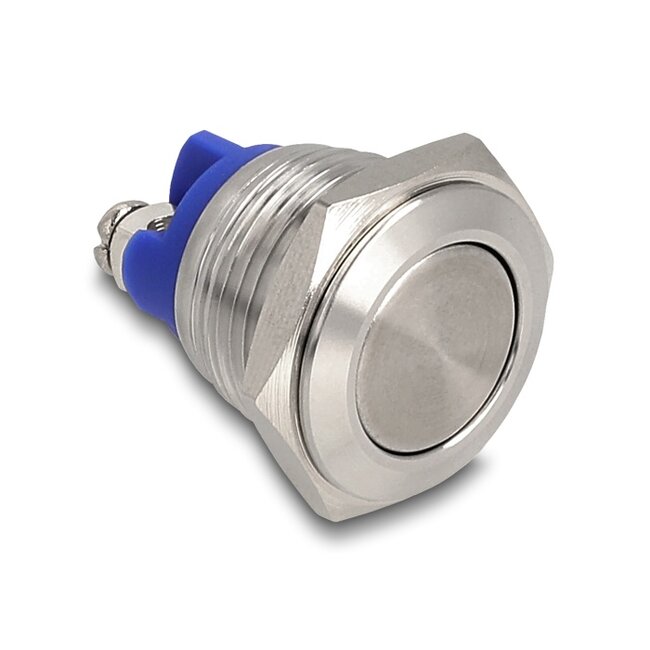

This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Button
A so called button, or push button, returns to its initial position after being pressed.
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

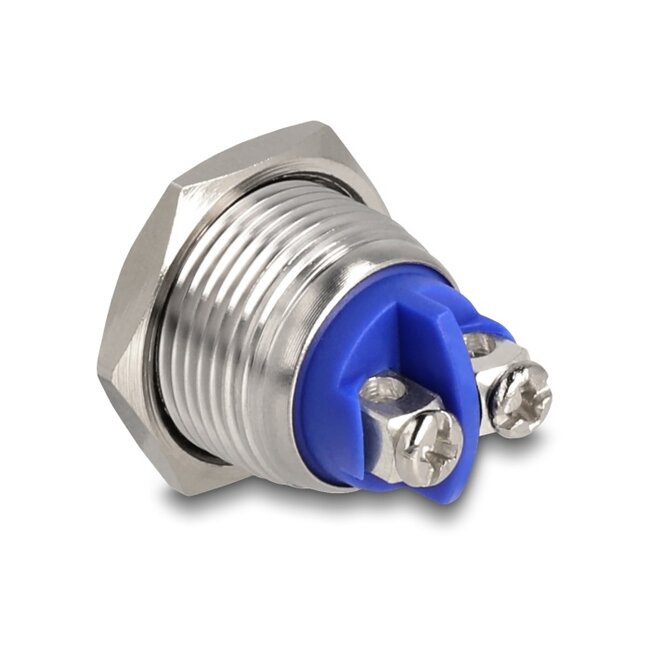

• Connectors: 2 x screw terminal
• Switch type: 1NO
• Switching voltage: AC 230 V~ / 3 A
• Number of contacts: 2
• Number of open contact: 1
• Function: momentary

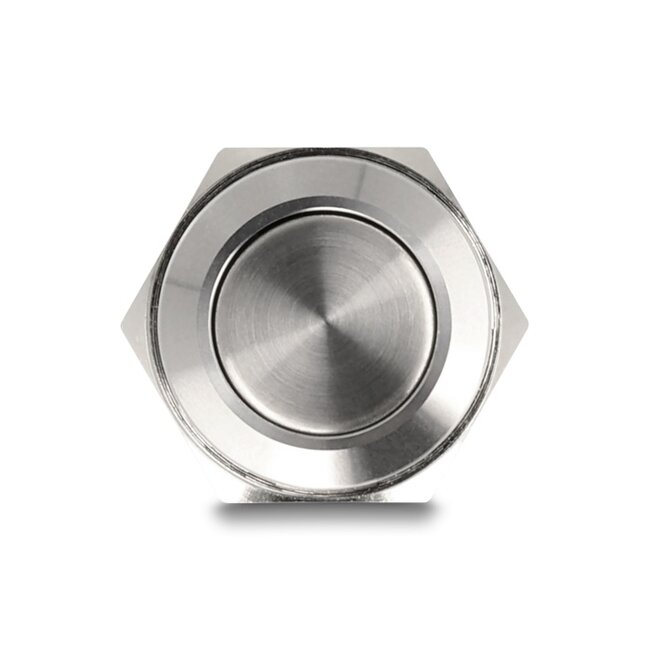

• Actuator: flat
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: ca. 16 mm
• Hexagon nut spanner width: 19 mm
• Mounting depth: ca. 20 mm
• Thread size: M16
• Material: stainless steel nickel plated
• Mechanical life: 1,000,000 cycles
• Electrical service life: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): ca. 21.5 x 19.0 mm
• Push-button
