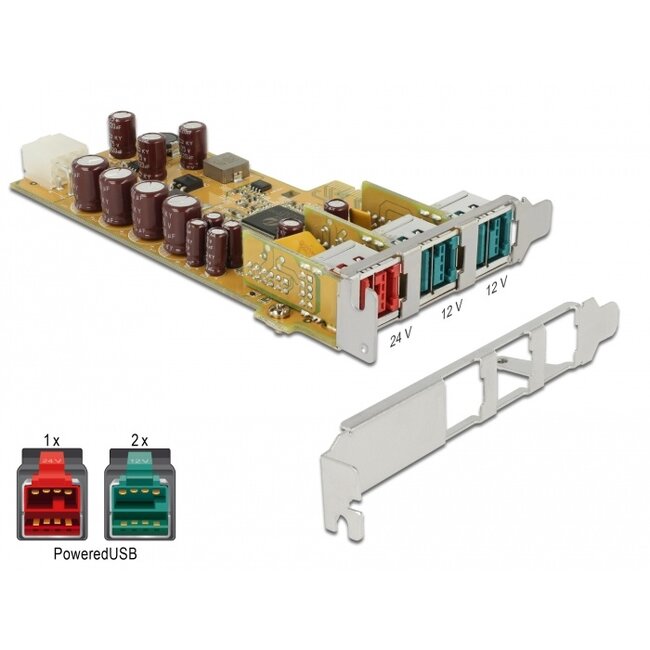

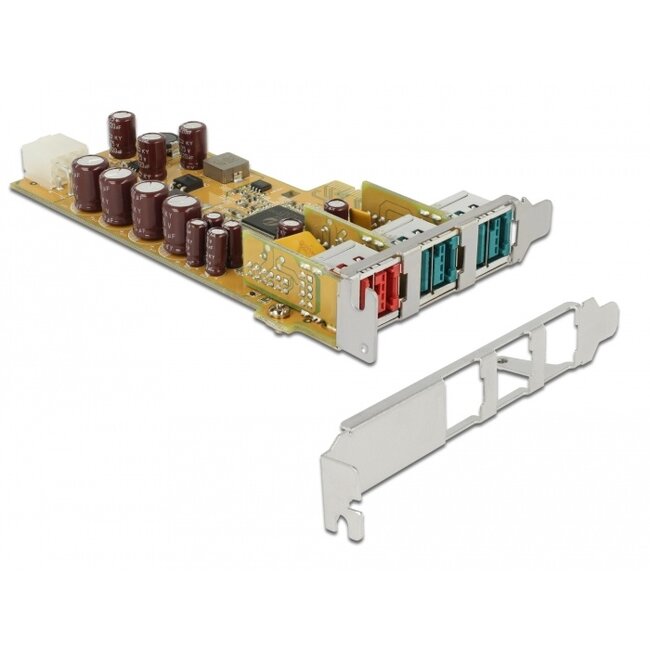

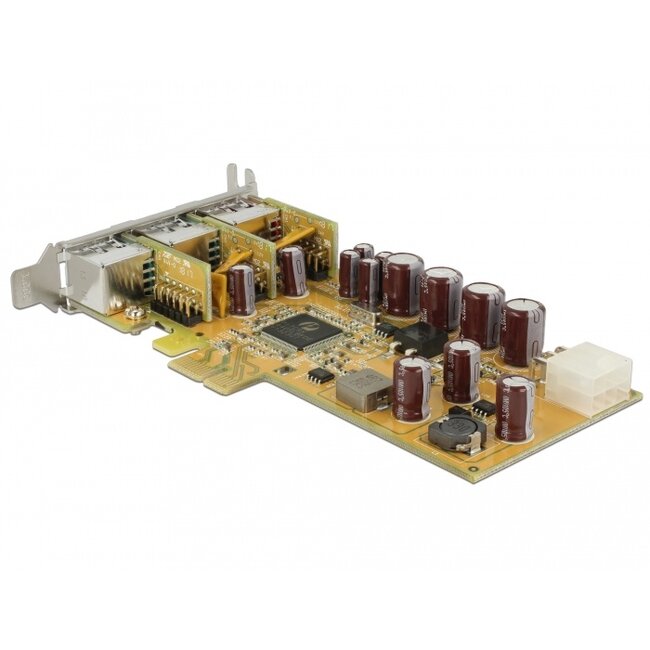

The PCI Express card by Delock expands a PC by three external PoweredUSB 2.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Furthermore, with the help of appropriate cables, devices which require a power supply of 12 V or 24 V, e.g. barcode scanner or POS systems, can be connected and need no additional power supply.
Specification• Connectors:
external:
1 x PoweredUSB 2.0 Type-A female 24 V
2 x PoweredUSB 2.0 Type-A female 12 V
internal:
1 x PCI Express x1, V1.1
1 x 6 pin power connector

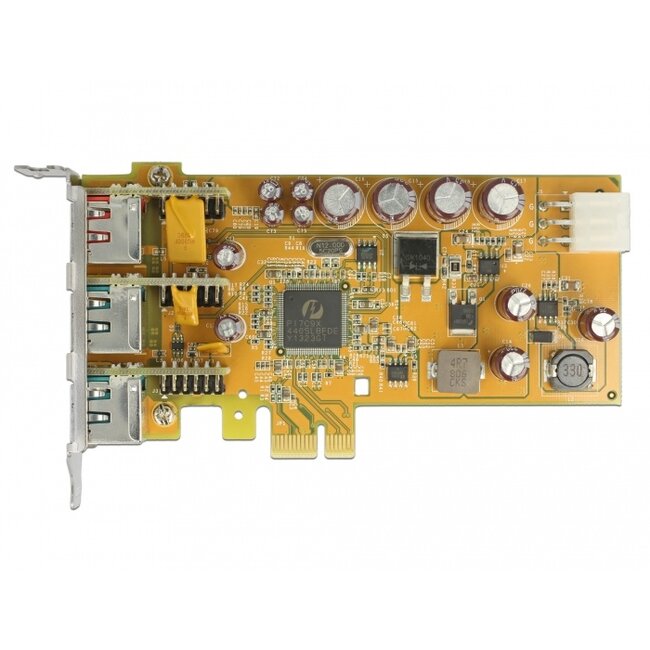

• Chipset: Pericom PI7C9X
• Output current max. 3 A per PoweredUSB port and 0.5 A per USB 2.0 port
• Data transfer rate up to:
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Over-current protection for each port
• Compliant with OHCI and EHCI
• ESD protection up to 15 kV
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.x / Kernel 4.9.4
• PC with one free PCI Express slot
• Power supply with one free 6 pin power connector
Package content
• PCI Express card PoweredUSB
• Low profile bracket
