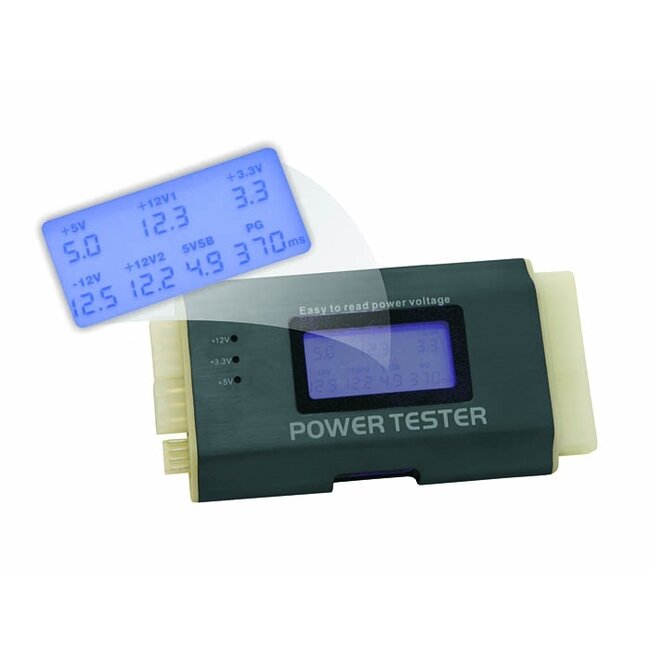

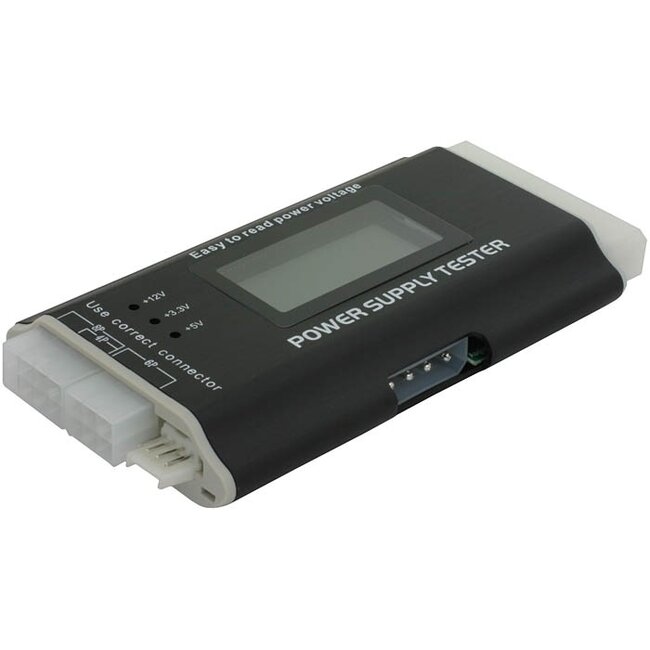

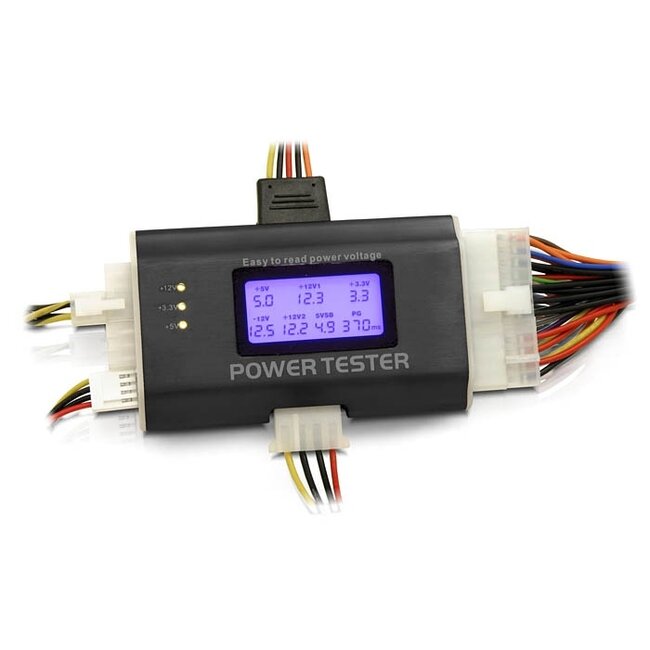

This Delock Power supply tester is a robust voltage tester for PC-power supplies. E. g. ATX, BTX and ITX compliant power supplies can be tested. The device shows on one display all supply voltage with one decimal place. Errors will be announced by a warn signal. The power supply tester is suitable for the ambitious hobby user, as well as for a quick functional check in specialised trade.
Note
Do not connect the power supply to your computer while testing!

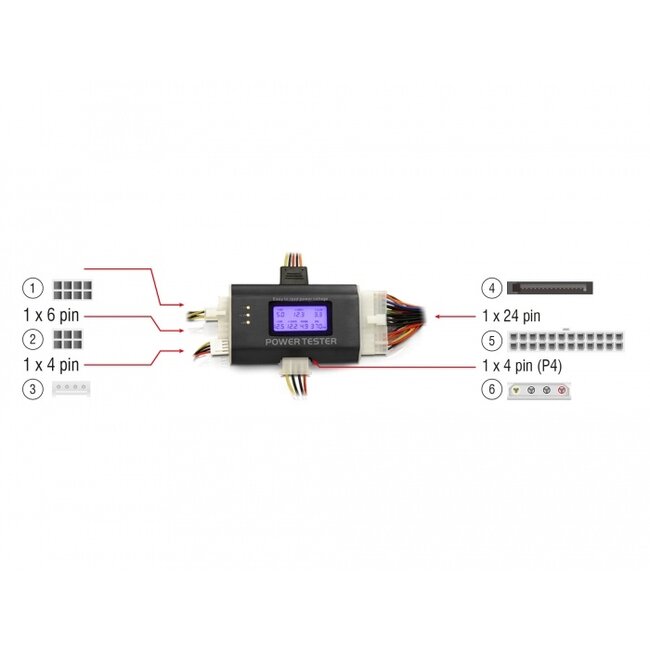

• Connectors:
1 x 24 pin
1 x 8 pin
1 x 6 pin
2 x 4 pin
1 x 15 pin SATA
• Voltage source: 20 / 24 pin (ATX connector)
• Voltage test: +12 V, -12 V, +5 V, +3.3 V 5 V Stand By (SB), 12 V Power Good (PG)
• Connection options: floppy, HDD, CD-ROM, SATA, 4 pin (P4), 8 pin (Dual-CPU),
6 pin (PCI Express)
• Power Supply Tester III
• User manual
