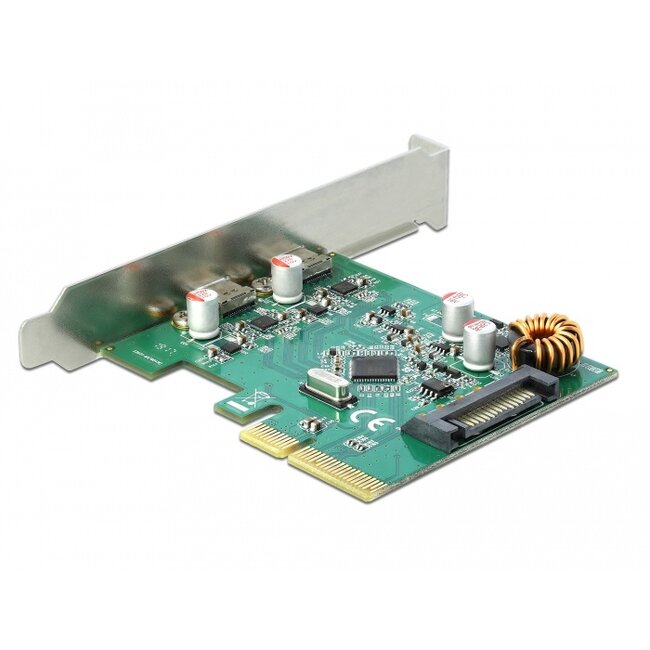

This PCI Express card by Delock expands the PC by two external USB 10 Gbps ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.
Specification• Connectors:
external:
2 x USB 10 Gbps USB Type-C™ female
internal:
1 x SATA 15 pin power connector
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to 10 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port: max. 13.5 watt (5 V / 2.7 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Linux Kernel 4.6.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card USB 10 Gbps

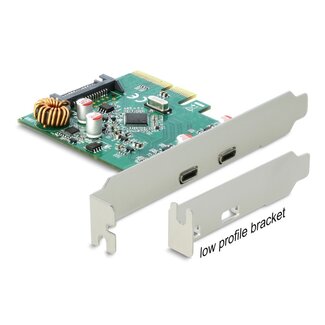

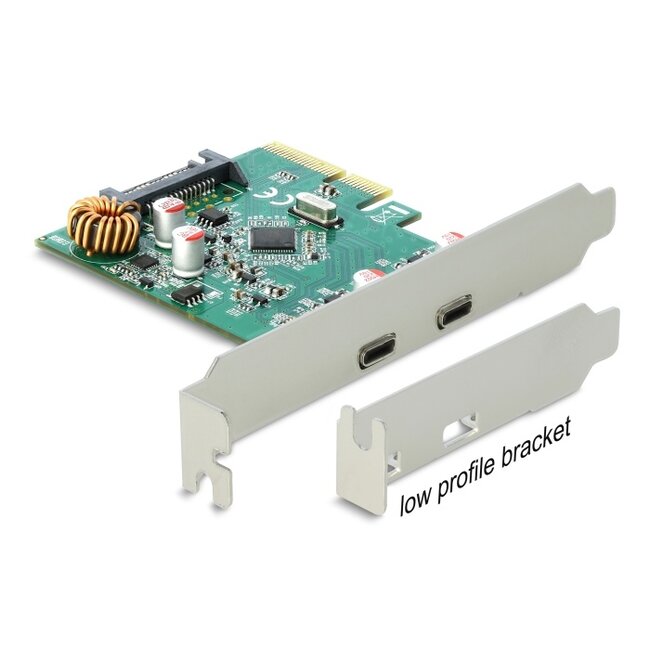

• Low profile bracket
• Driver CD
• User manual
