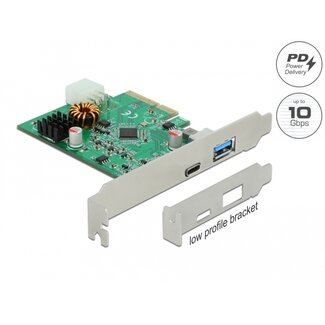

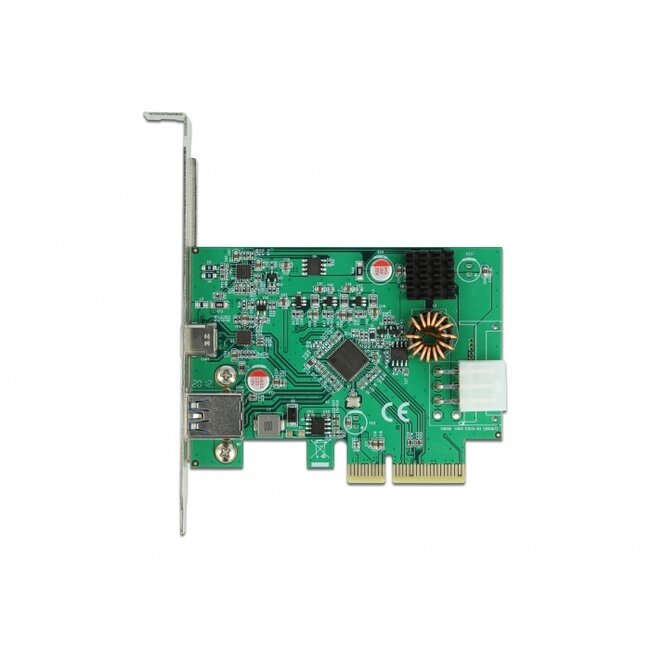

Description This PCI Express card by Delock expands the PC by two external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Power Delivery (PD) at the USB-C™ port
The USB Type-C™ port supports the Power Delivery function. This allows connected devices such as smartphones, tablets and even laptops to be charged.
Specification • Connectors:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female (data
transmission + Power Delivery)
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
internal:

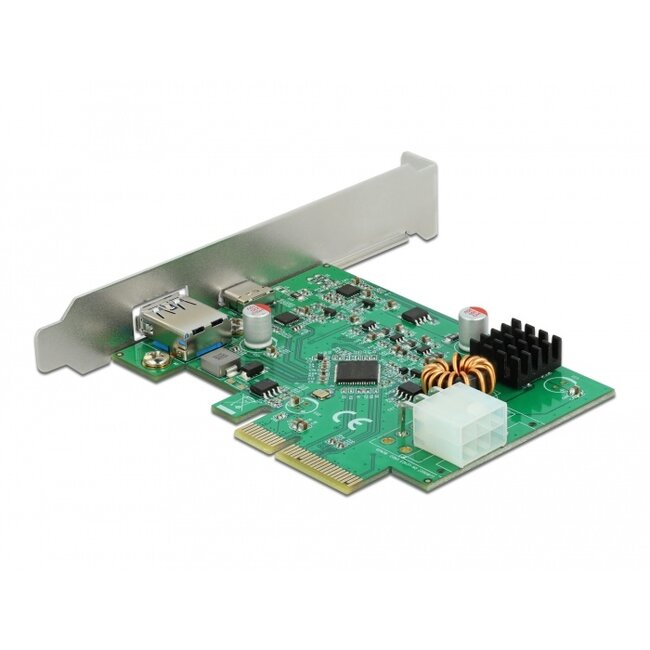

1 x 6 pin power female
1 x PCI Express x4 (2-Lane), V3.0
• Chipset: Asmedia ASM3142, ASM1543
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via 6 pin power connector
• Electrical power per port:
USB Type-C™: max. 30 watt (20 V / 1.5 A)
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
System requirements • Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card SuperSpeed USB 10 Gbps

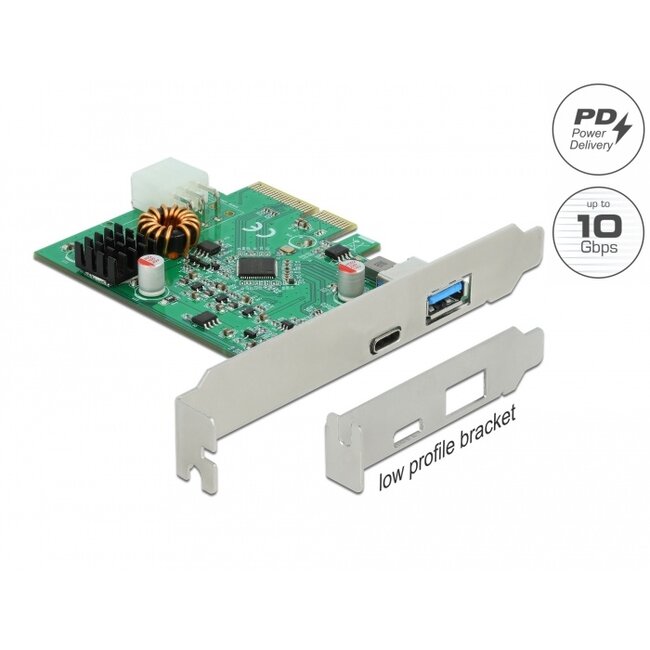

• Low profile bracket
• Driver CD
• User manual
