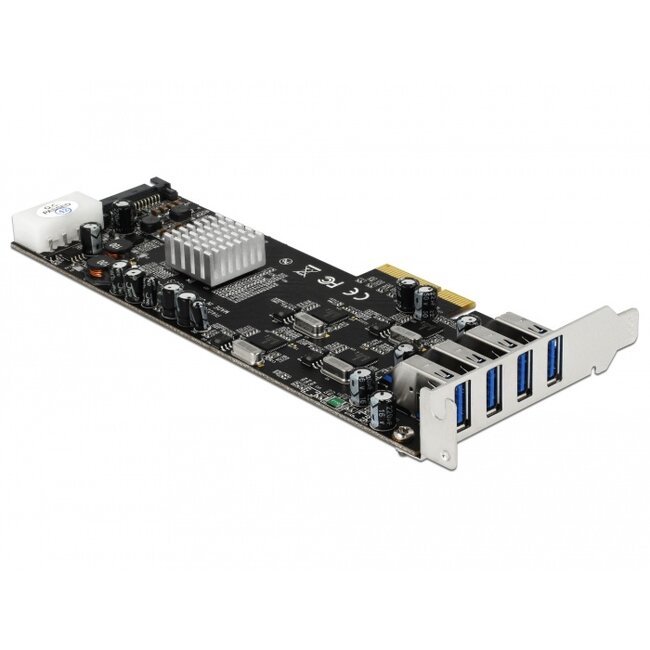

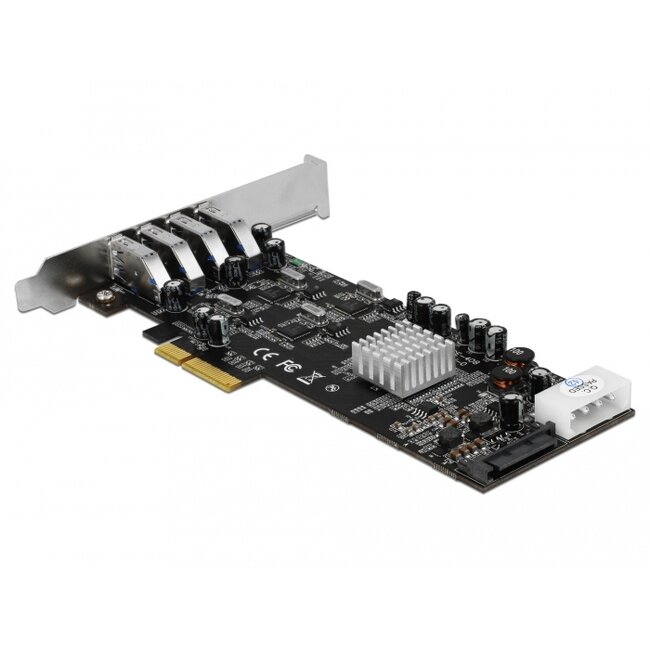

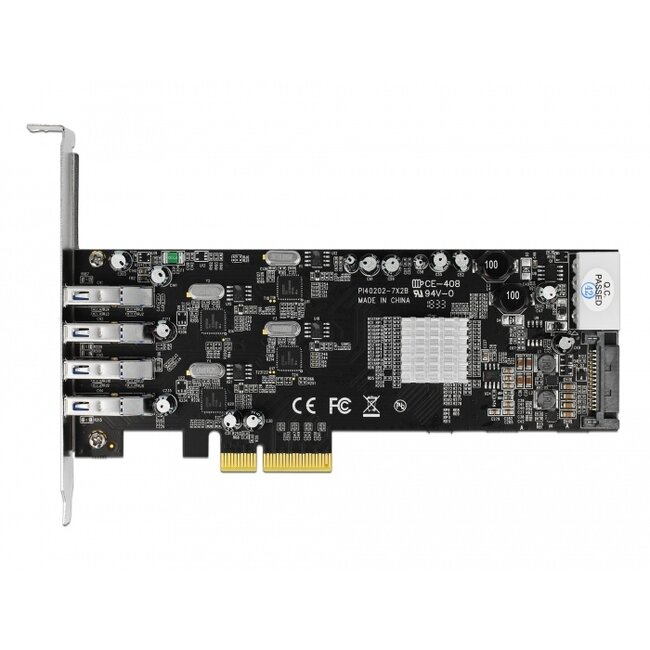

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.
Specification• Connectors:
external:
4 x USB 3.0 Type-A female
internal:
1 x SATA power connector
1 x Molex 4 pin power connector
1 x PCI Express x4, V2.0
• Chipset: 4 x Renesas D720202
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Power supply with a free power connector
Package content
• PCI Express card USB 3.0
• Low profile bracket
• Driver CD
• User manual
