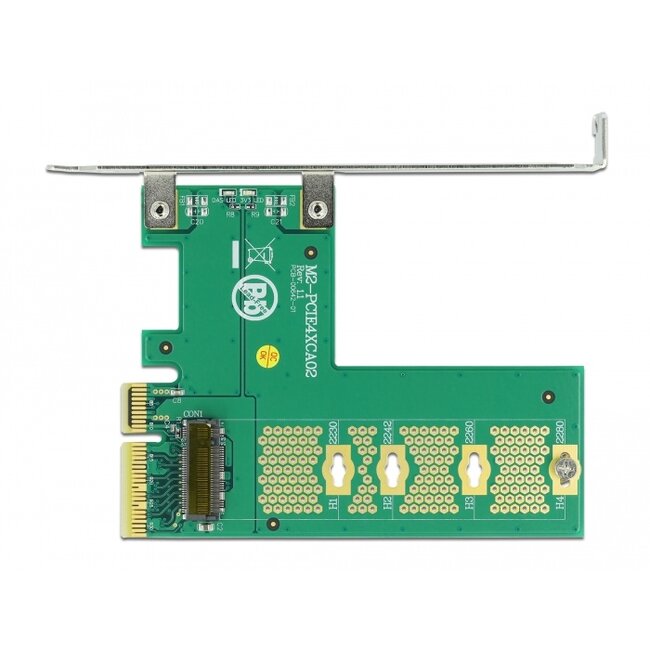

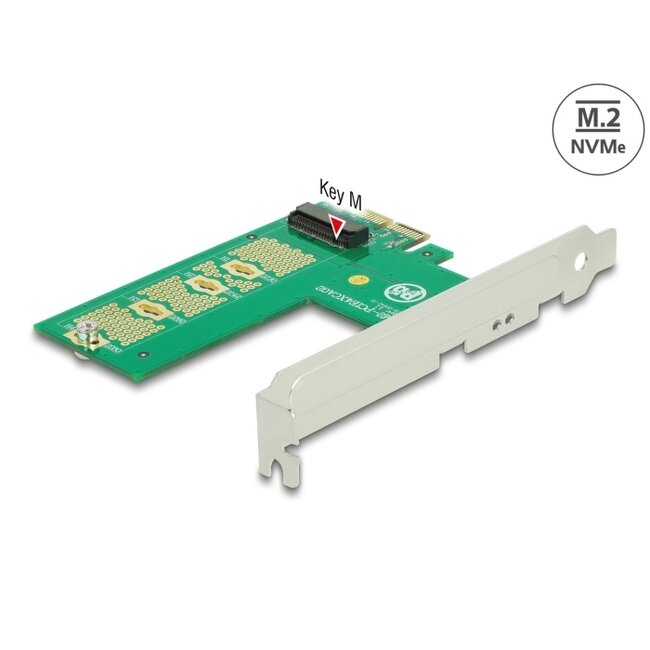

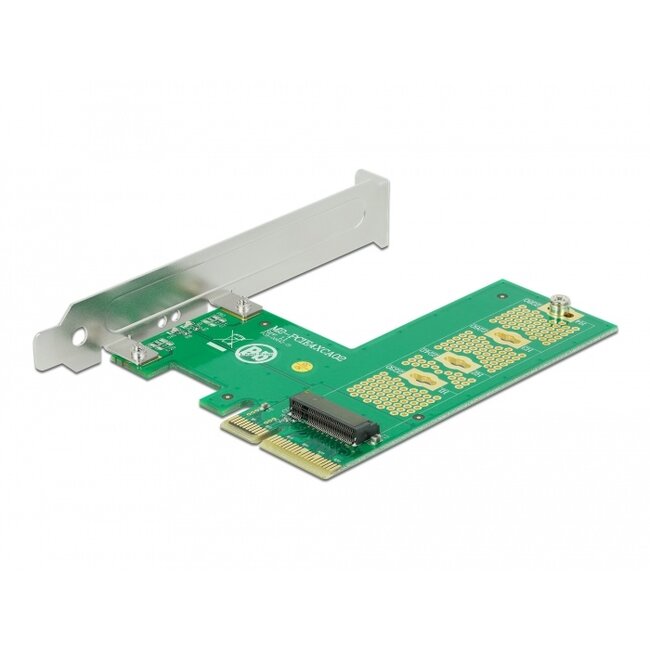

The Delock PCI Express card expands a PC by one M.2 slot. An M.2 SSD in format 2280, 2260, 2242 and 2230 can be connected.
Specification• IOI part number: M2-PCIE4XCA02
• Connector:
internal:
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 2 x LED indicator
• Windows 8.1/8.1-64/10/10-64, Linux Kernel 3.19
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
