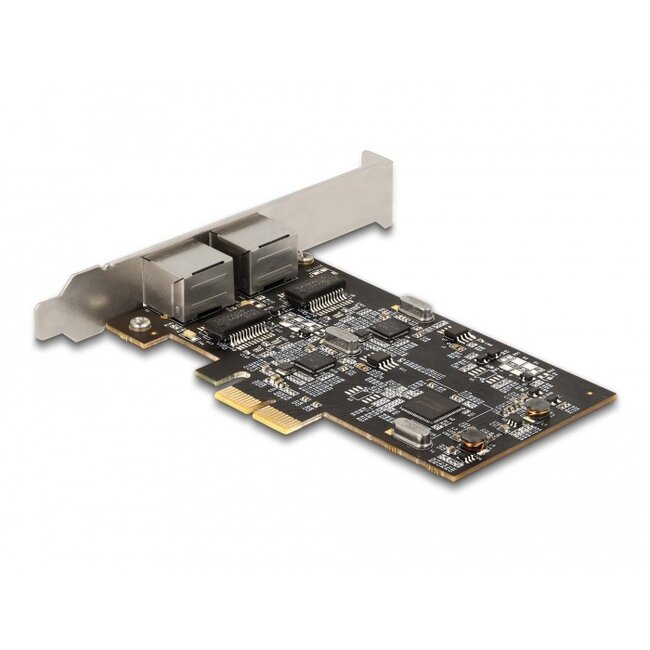

The PCI Express card by Delock offers two network ports with a data transfer rate up to 2500 Mbps.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
• Connectors:
external: 2 x 2.5 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x2, V2.1
• Chipset: Intel i225V
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
NBASE-T with up to 2.5 Gbps
PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports Wake On LAN (WOL)
• Supports 9k Jumbo Frames
• Supports PXE
• LED indicator for link and activity
• Linux Kernel 5.8 or above
• Windows 10/11
• PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot
Package content
• PCI Express card

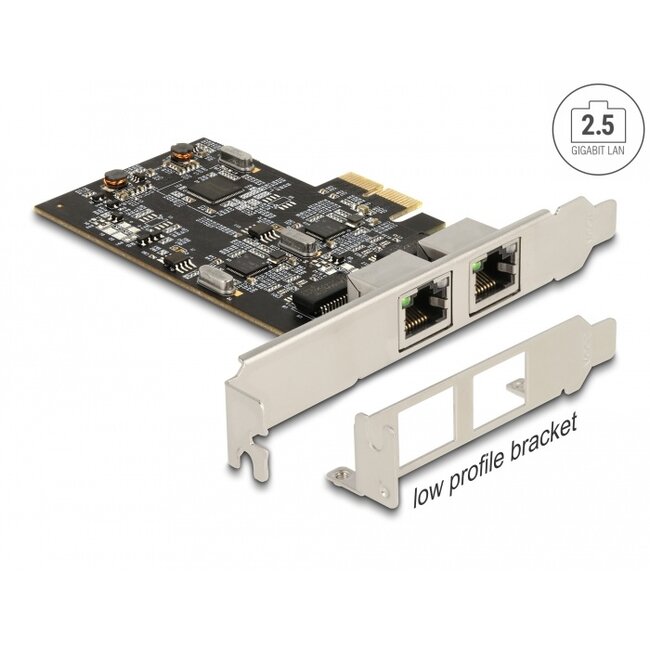

• Low profile bracket
• Driver CD
• User manual
