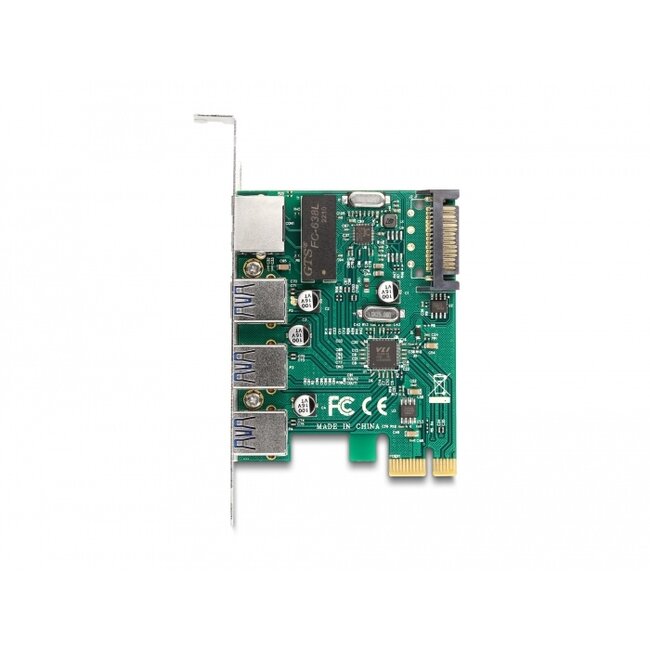

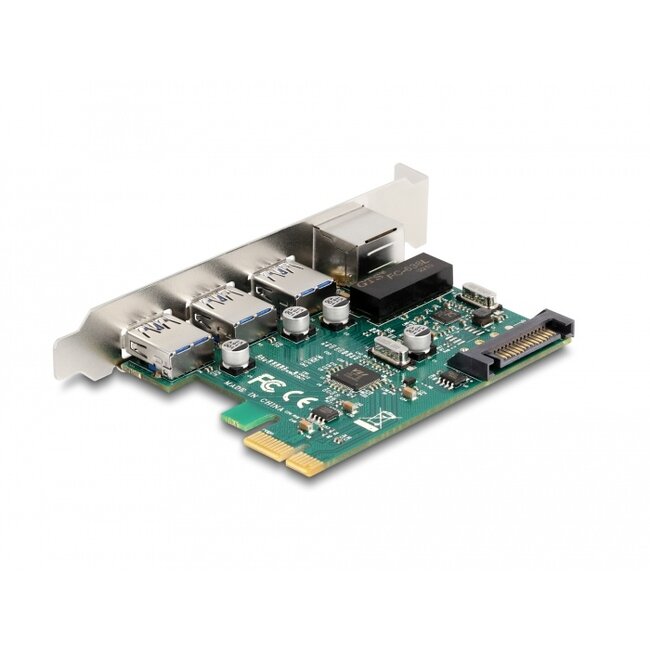

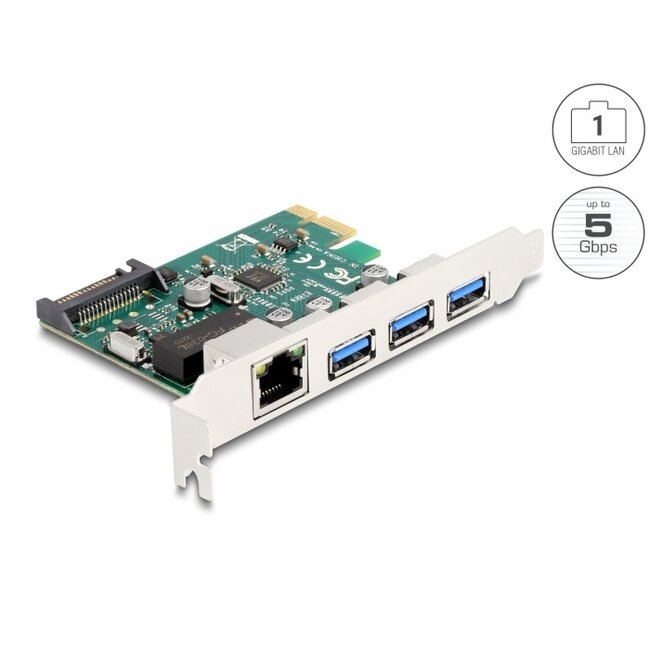

This PCI Express card by Delock expands the PC by three USB 5 Gbps ports as well as one Gigabit LAN port. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card offers an additional network port with a data transfer rate up to 1000 Mbps.
Specification• Connectors:
external:
3 x USB 5 Gbps Type-A female
1 x Gigabit LAN RJ45 jack
internal:
1 x SATA 15 pin power connector
1 x PCI Express x1, V2.0
• Chipset: VIA VL805 (USB), Realtek RTL8153 (LAN)
• Data transfer rate:
USB up to 5 Gbps
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
PCI Express x1 up to 5 Gbps
• Supports xHCI specifications V1.0
• Compatible with IEEE 802.3, IEEE 802.3u
• Supports IEEE 802.3x full duplex flow control
• Microsoft® NDIS5, NDIS6 Checksum Offload (IP, TCP, UDP)
• Supports Jumbo Frame up to 9k
• Bootable
• Linux Kernel 5.15 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card
• User manual
