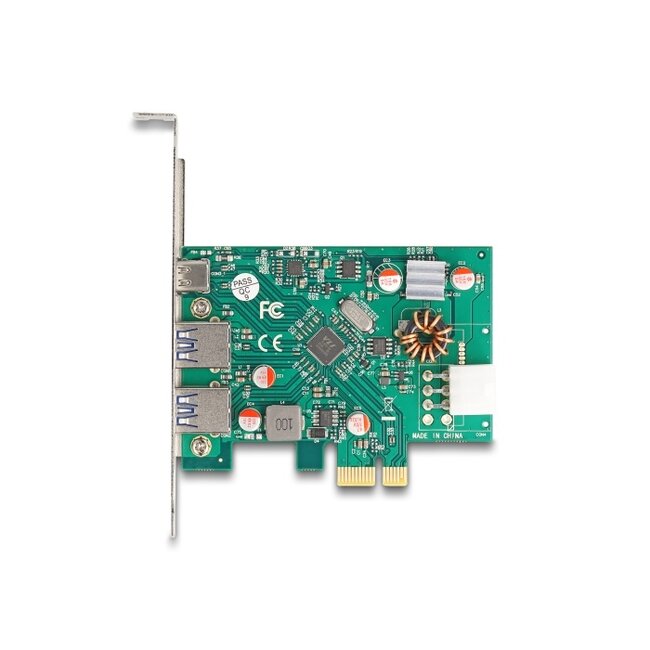

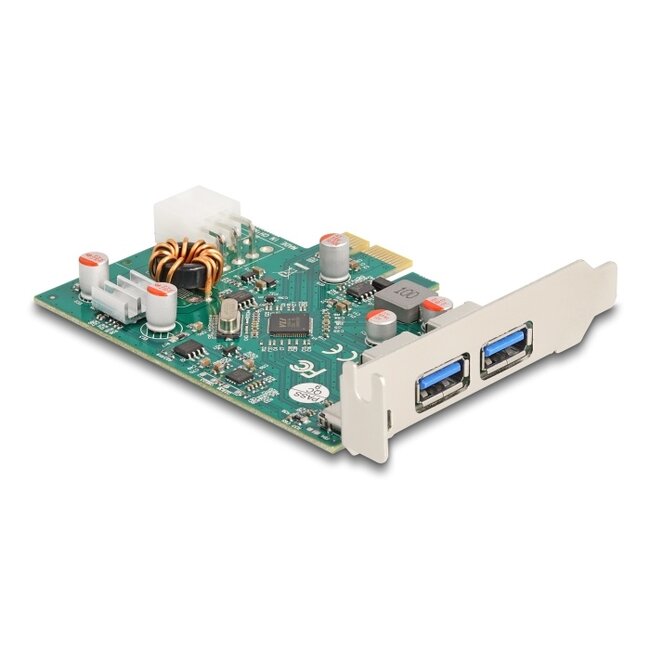

This PCI Express card by Delock expands the PC by three external USB 5 Gbps ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.
Power Delivery (PD) at the USB-C™ port
The USB Type-C™ port supports the Power Delivery function. This allows connected devices such as smartphones, tablets and even laptops to be charged.
• Connectors:
external:
1 x USB 5 Gbps USB Type-C™ female (data transmission + Power Delivery)
2 x USB 5 Gbps Type-A female
internal:
1 x 6 pin power female
1 x PCI Express x1, V2.0
• Chipset: VIA VL805
• Data transfer rate up to 5 Gbps
• Power supply via 6 pin power connector
• Electrical power per port:
USB Type-C™: max. 30 watt (20 V / 1.5 A)
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
• Power supply with 6 pin PCIe power supply connector
Package content
• PCI Express card USB 5 Gbps

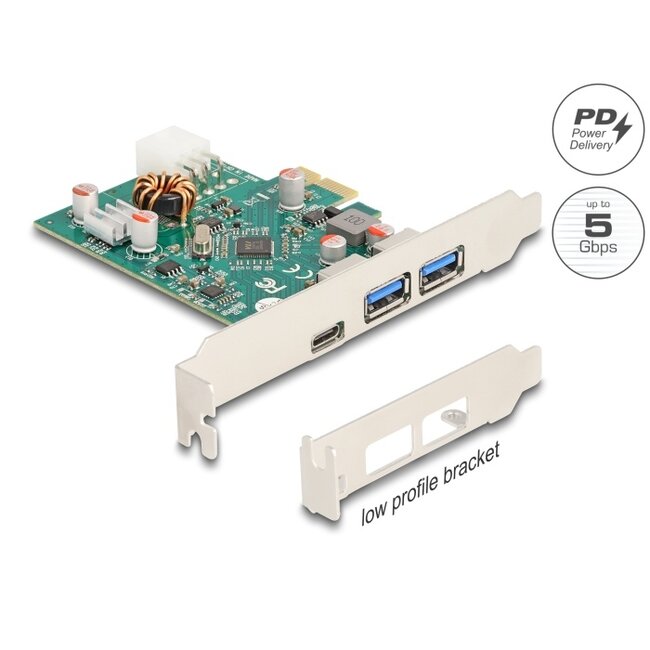

• Low profile bracket
• User manual
