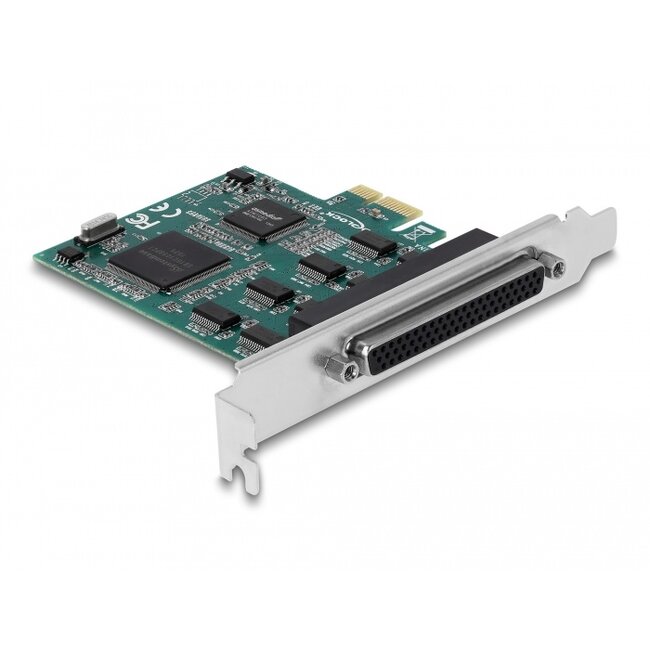

The PCI Express card by Delock expands a PC by eight external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.
Fan-out cable

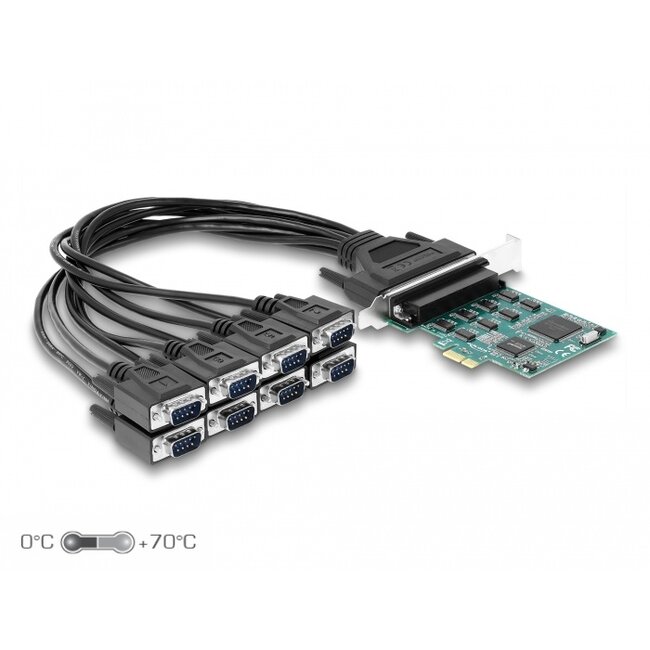

The approximately 45 cm long fan-out cable provides a high degree of flexibility at the eight RS-232 ports and simplifies the handling of computers, machines, facilities etc.
• Connectors:
external:
1 x DB62 female

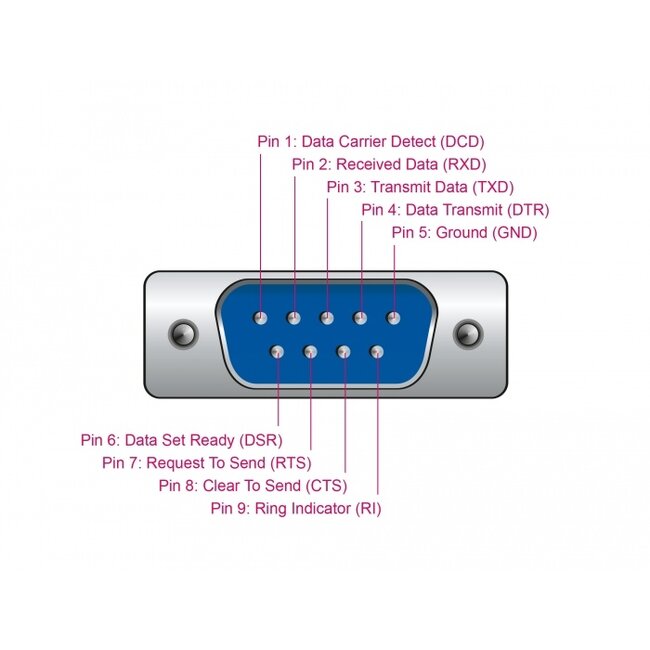

connecting cable: DB62 male > 8 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V1.1
• Chipset: SystemBase 16C1058PCI
• Compatible with 16C550 UART
• Data transfer rate up to 921.6 Kbps
• FIFO: 8 x 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Cable length incl. connectors: ca. 45 cm
• Dimensions (LxWxH): ca. 93 x 78 x 12 mm
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• 1 serial connecting cable
• Driver CD
• User manual
