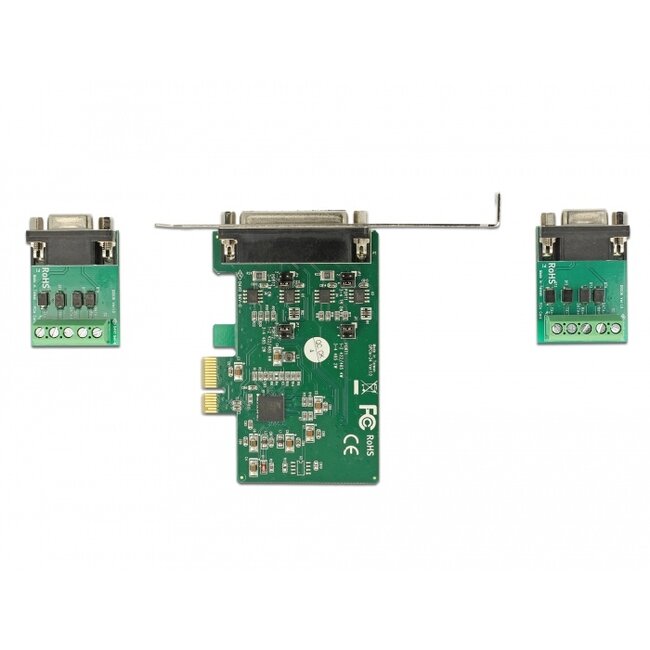

This RS-422/485 PCI Express card by Delock is suitable for industrial fieldbus systems, machine controllers, converters, measurement data acquisition etc. With its extensive overvoltage protection and the extended operating temperature range, this card is also highly suitable for use in demanding environments. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification• Connection:
internal: 1 x PCI Express x1, V2.0
external: 1 x DB25 female

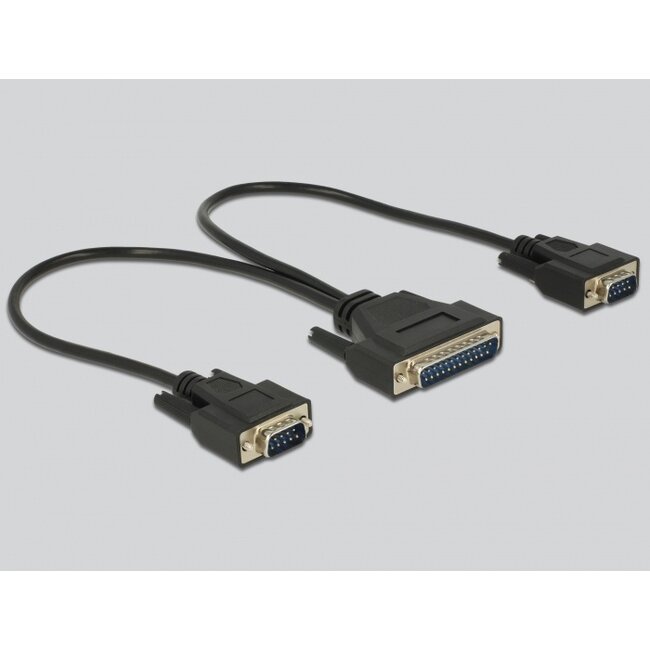

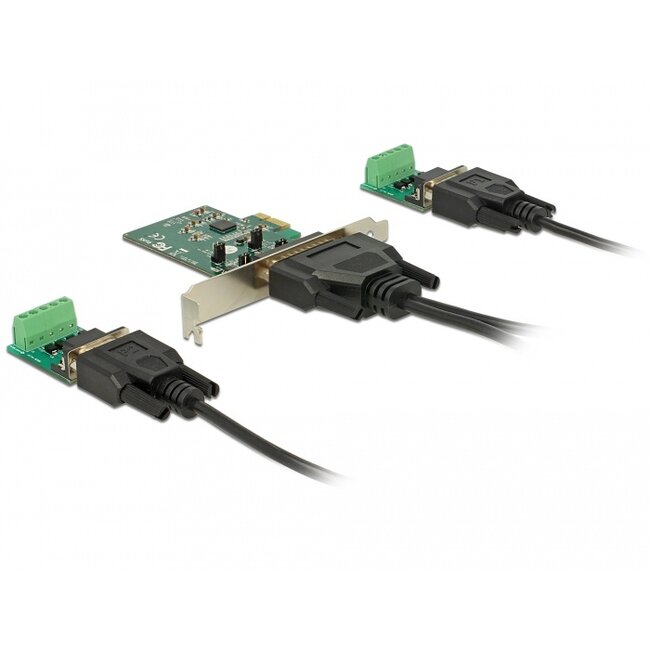

Connection cable: 1 x DB25 male > 2 x Serial RS-422/485 DB9 male
• Chipset: Exar XR17V352, SP3078E
• Modes
2 Wire RS-485 (max. 32 devices)
4 Wire RS-422 Point to Point
4 Wire Multi-Drop RS-485 and RS-422 (max. 10 devices)
• Compatible with 16C550 UART
• Data transfer rate up to 1 Mb/s
• FIFO buffer: 256 byte
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• ±15 KV ESD protection, on all signal pins
• 2 x Terminal block with surge protection, 600 W peak pulse
• Cable length inkl. connectors: ca. 30 cm
• Operation temperature: -30 °C ~ 75 °C
• Humidity: 5 ~ 95 %
• Dimensions (LxWxH): ca. 91 x 64 x 12 mm
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64/11/Server 2012R2/Server 2016
• PC with a free PCI Express slot
Package content
• PCI Express card
• 1 x DB25 cable

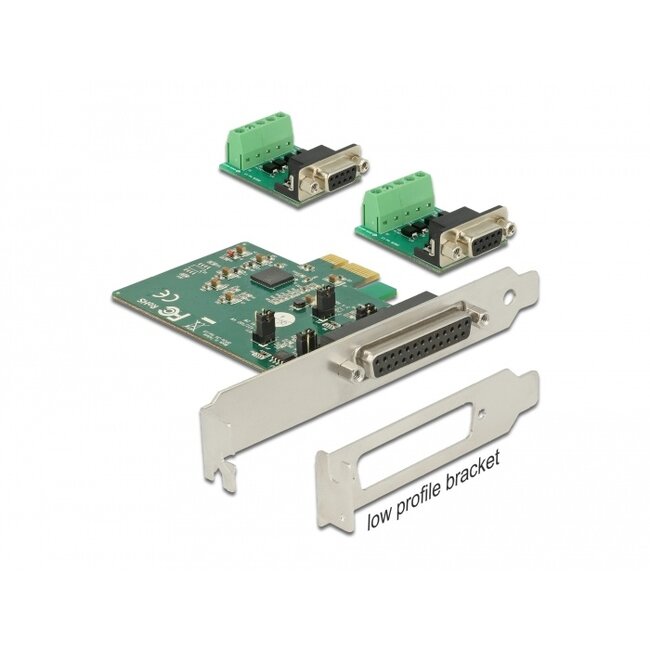

• 1 x Low profile bracket
• 2 x DB9 > 5 pin terminal blocks
• 4 x Jumper
• Driver CD
• User manual
