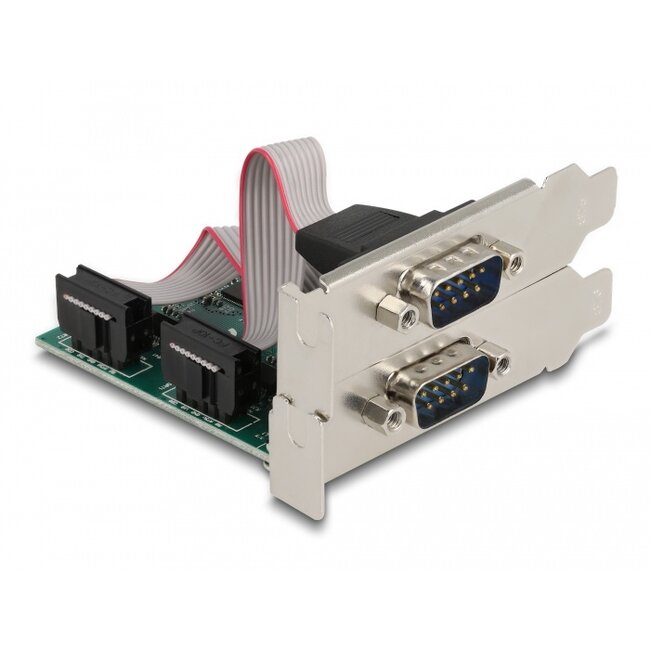

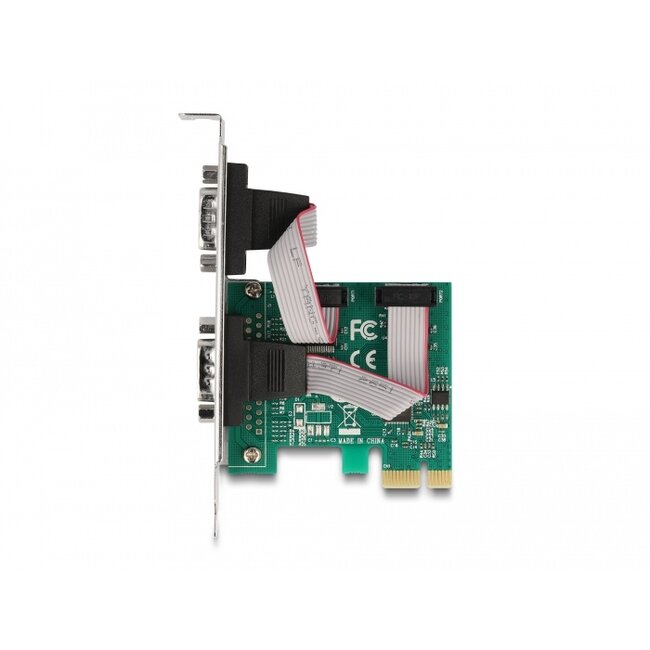

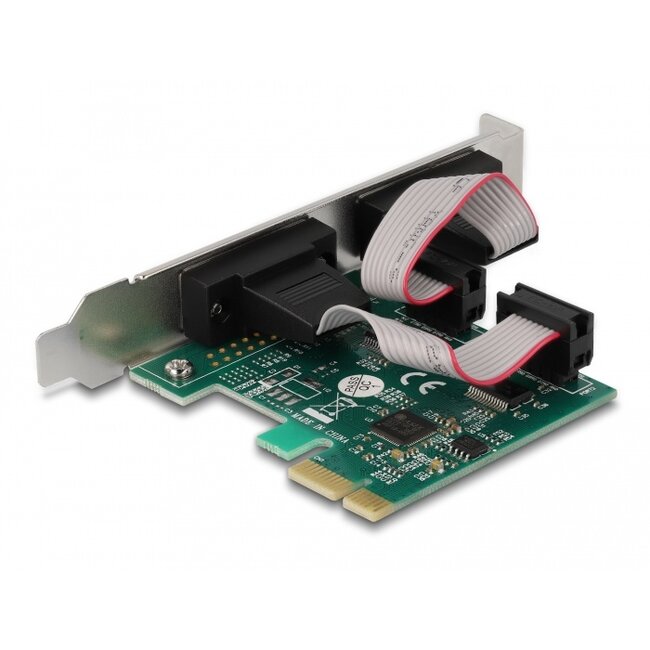

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.
Low Profile Form Factor

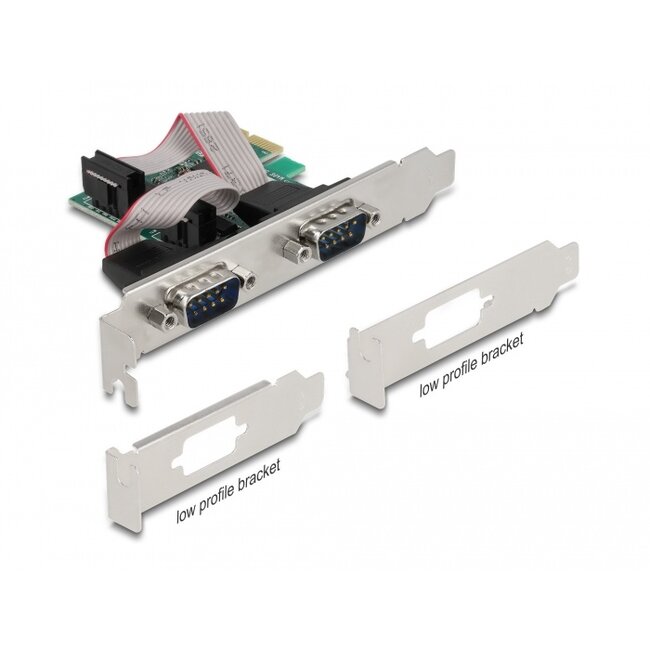

By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
