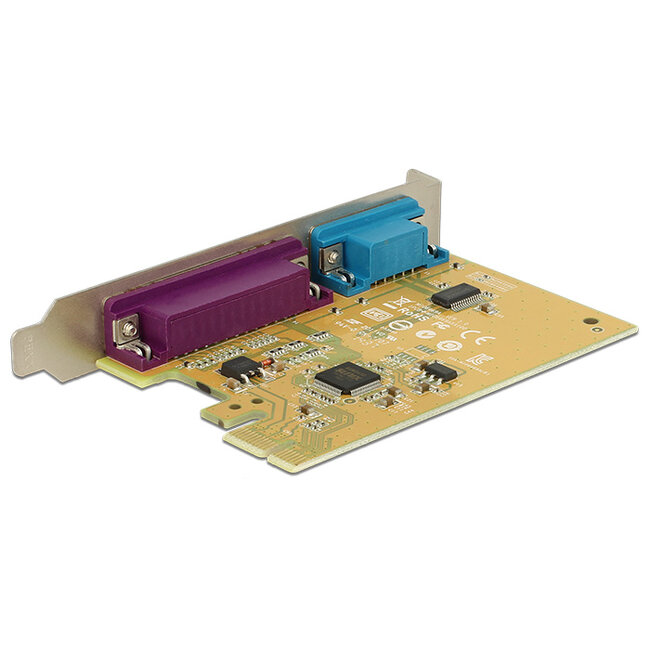

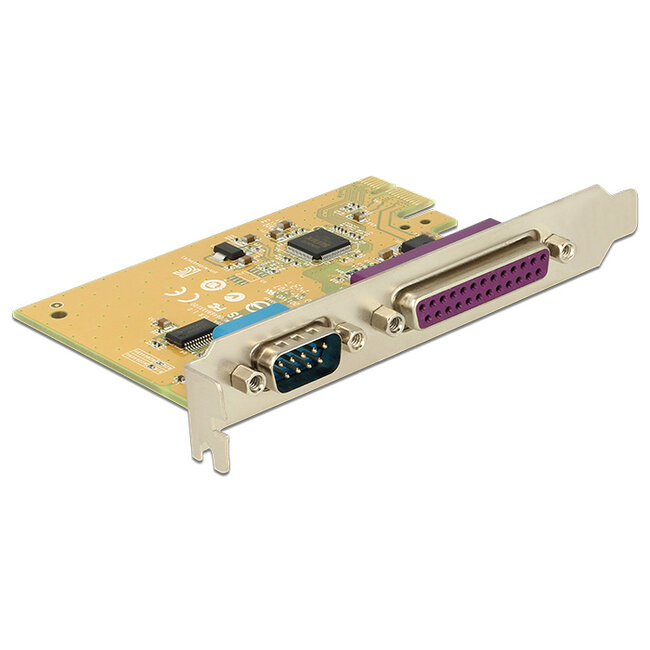

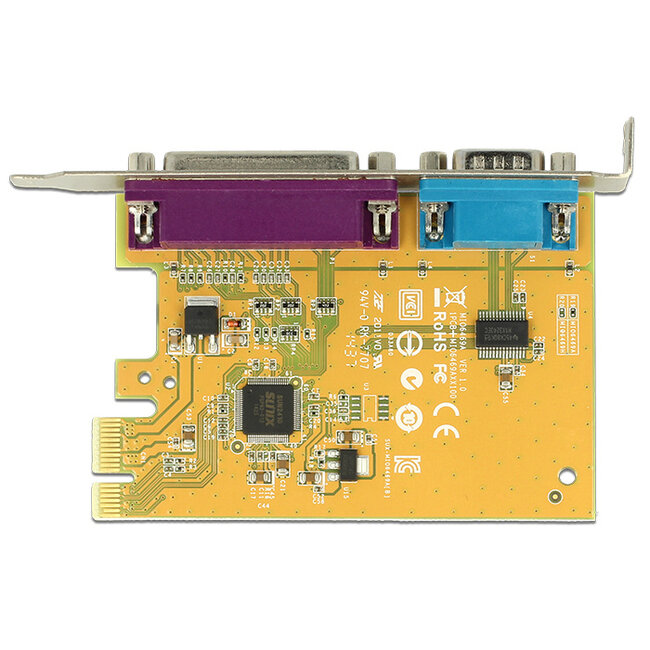

The Delock PCI Express card expands a PC by one external serial port and one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card.
Special features
This PCIe card 1 x Serial + 1 x Parallel is Windows Server 2019 WHQL certified
• Connector:
external:
1 x serial RS-232 DB9 male
1 x Parallel DB25 female
internal:
1 x PCI Express x1, V2.0
• Chipset: SUN2410
• Serial specification:
• Data transfer rate up to 115.2 Kb/s
• FIFO: 128 byte
• Compatible with 16C950 UART
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard
• Parallel specification:
• Data transfer rate up to 1.8 MB/s
• FIFO: 16 byte
• SPP, EPP, ECP, BPP compatible to IEEE 1284
• Windows WHQL certified
• Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot
Package content
• PCI Express card
• Driver CD
• User manual
