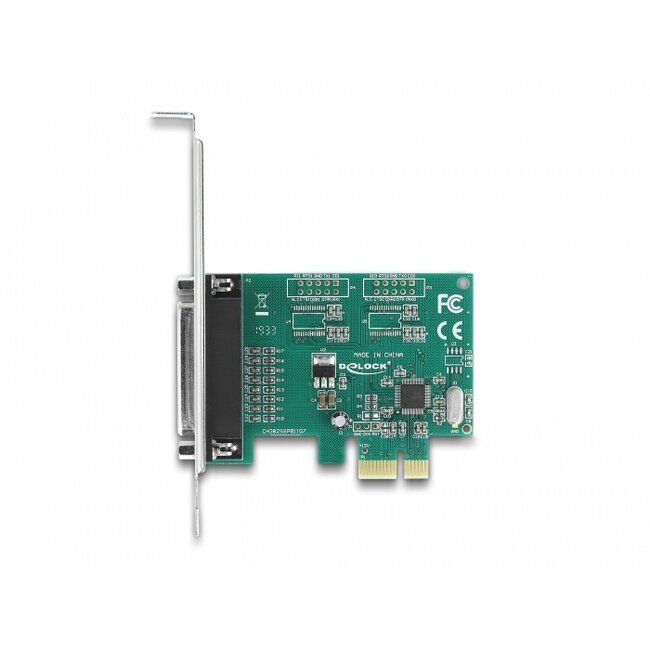

This PCI Express card by Delock expands a PC by one external parallel port. Different devices such as scanner, printer etc. can be connected to this card.
Specification• Connectors:
external: 1 x Parallel DB25 female
internal: 1 x PCI Express x1, V1.1
• Chipset: WCH382L
• Data transfer rate up to 1.5 Mbps
• FIFO: 256 byte
• SPP, EPP, ECP compatible to IEEE 1284
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 79 x 59 x 13 mm
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Windows Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
