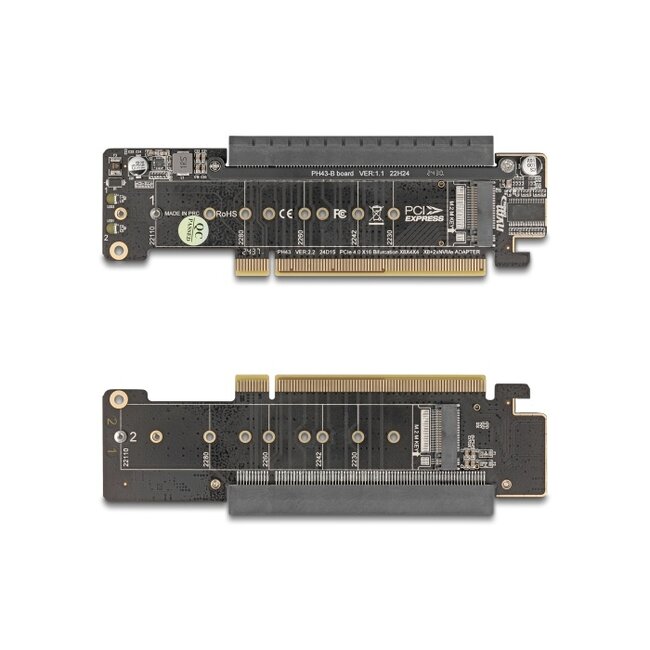

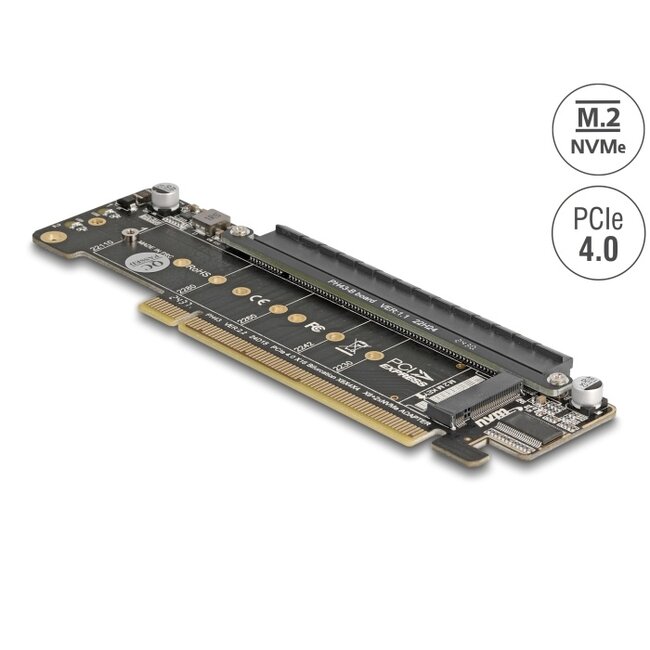

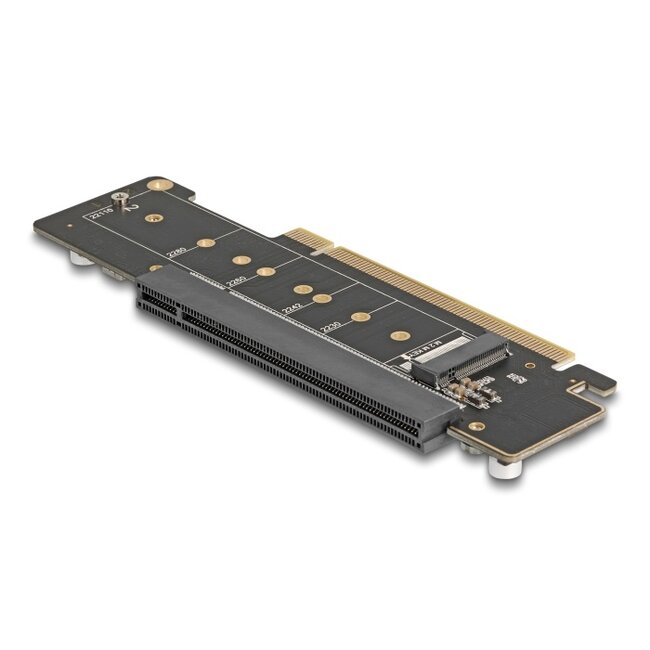

The PCI Express riser card by Delock serves as expansion for a PCIe x16 slot.
M.2 slots and bifurcation

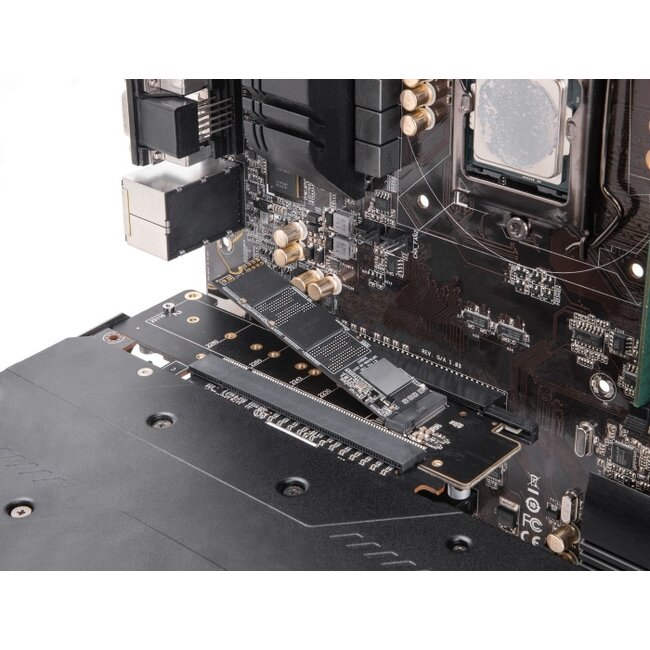

The card expands the PCI Express slot by two M.2 NVMe slots. This requires the PCIe bifurcation function of the motherboard in order to split the PCIe signal.
Please Note
The motherboard must support PCIe x8x4x4 mode so that all ports can be used. Without bifurcation, only the PCI Express x16 slot will work.
• Connectors:
1 x PCI Express x16, 4.0 male
1 x PCI Express x16 (8-Lane), V4.0 slot
2 x M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Supports PCI Express 4.0 protocol
• 2 x LED indicator
• Dimensions (LxWxH): ca. 149 x 47 x 10 mm
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCIe riser card

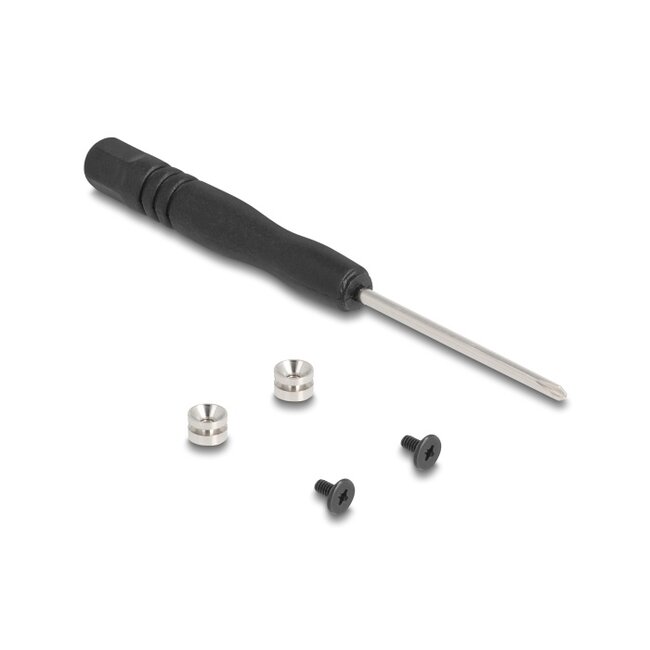

• M.2 mounting material
• Screwdriver
• User manual
