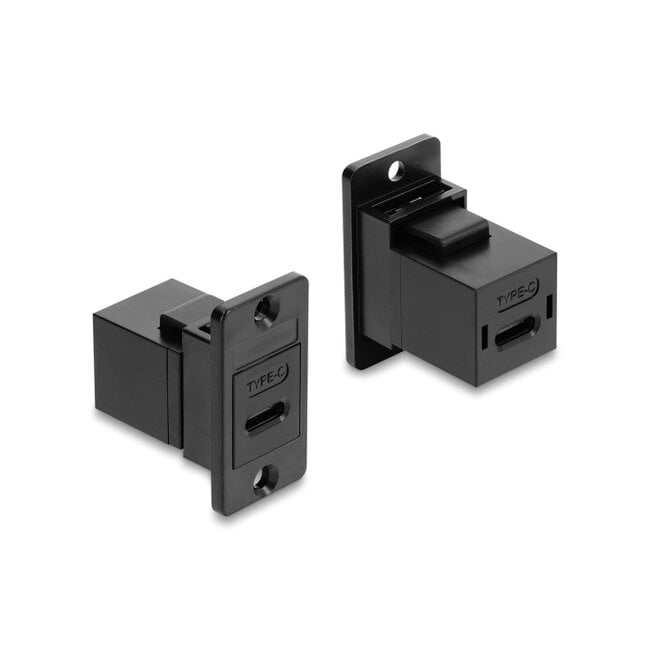

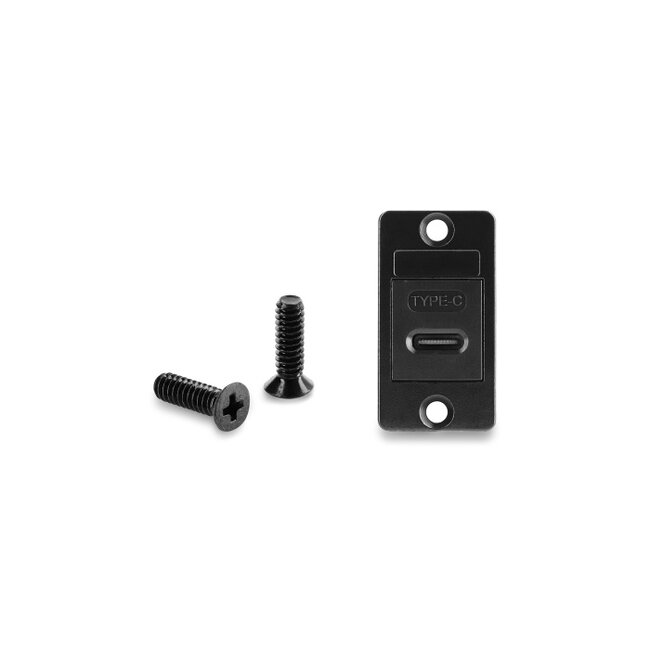

This panel mount by Delock can be used to extend a USB connection and can be installed in e.g. a housing or device.
Please Note
For a trouble-free operation, we recommend using a USB-C™ to USB-A connection cable. With a USB-C™ to USB-C™ connection, only power is transmitted.
• Connectors:
1 x USB 2.0 Type-C™ female
1 x USB 2.0 Type-C™ female
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 29.0 x 19.1 x 35.5 mm
