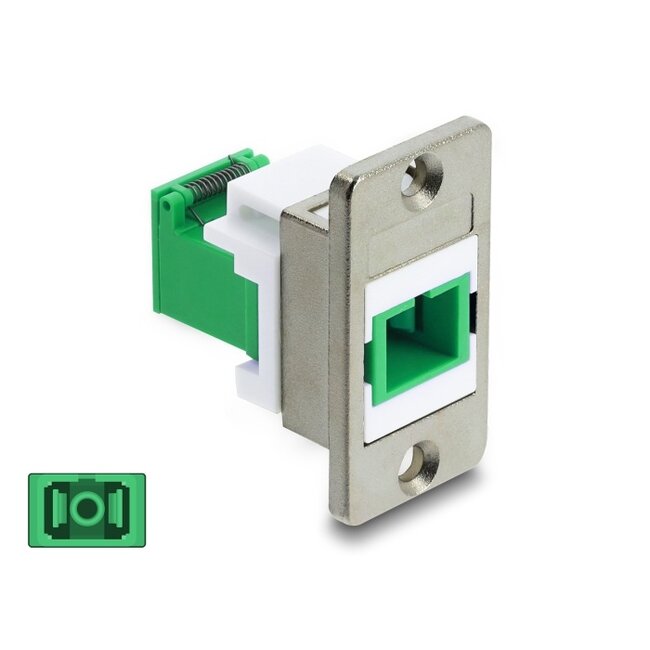

This fibre optic panel mount by Delock can be used to connect fibre optic cables and is suitable for installation in a housing.
Protection against laser radiation

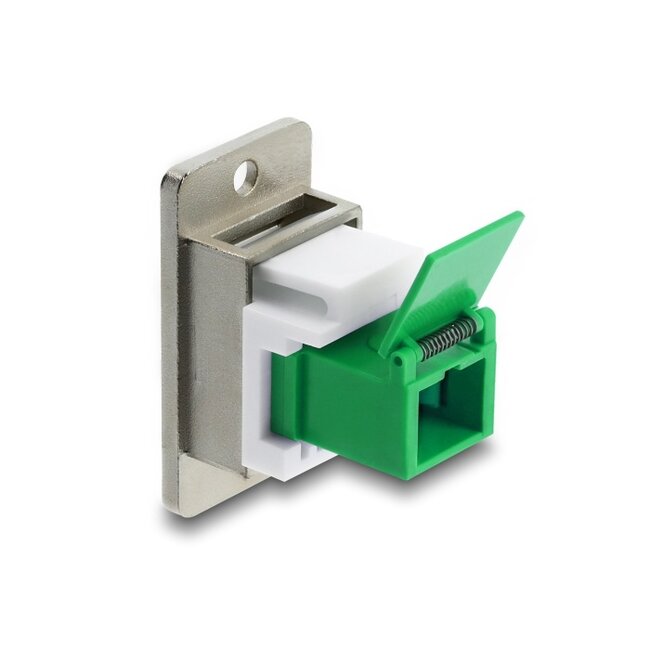

The integrated flip on the coupling ensures protection against laser radiation.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
• Connectors:
1 x SC Simplex female
1 x SC Simplex female
• For single-mode fiber
• Ceramic sleeve
• With a laser protection flip and a dust protection cap
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm

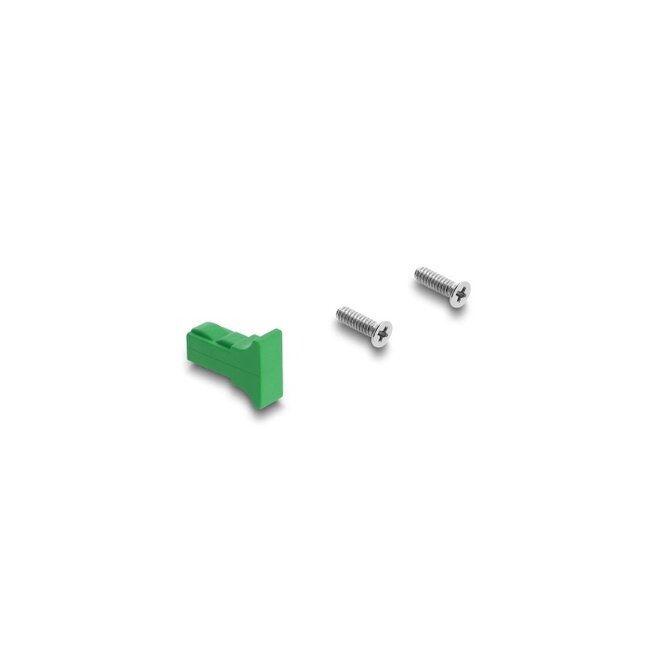

• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: silver / green / white
• Dimensions (LxWxH): 32.0 x 19.1 x 35.5 mm
• Panel Mount
