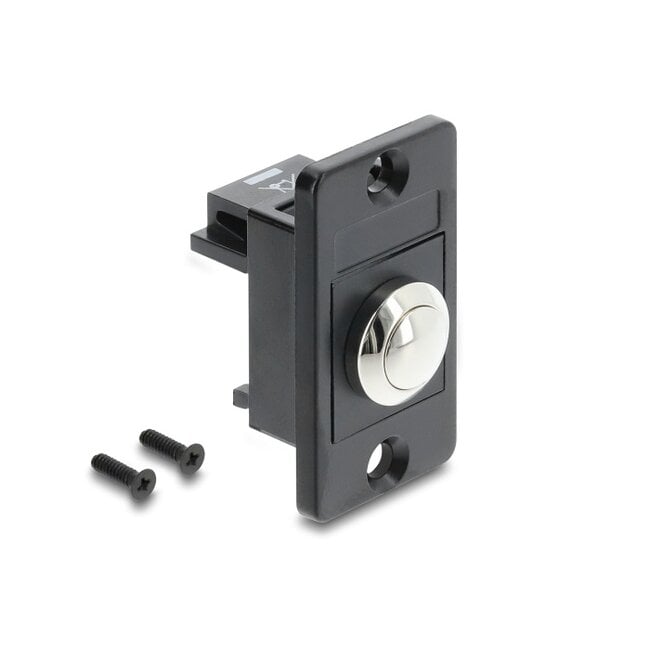

This panel mount by Delock works as an On/Off switch or reset button for electronic components and can be installed in e.g. a housing or device.
Specification• Connector: 2 x solder connection
• Operating voltage / current: max. 24 V / 1 A
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 19.8 x 19.1 x 35.5 mm
• Panel Mount
