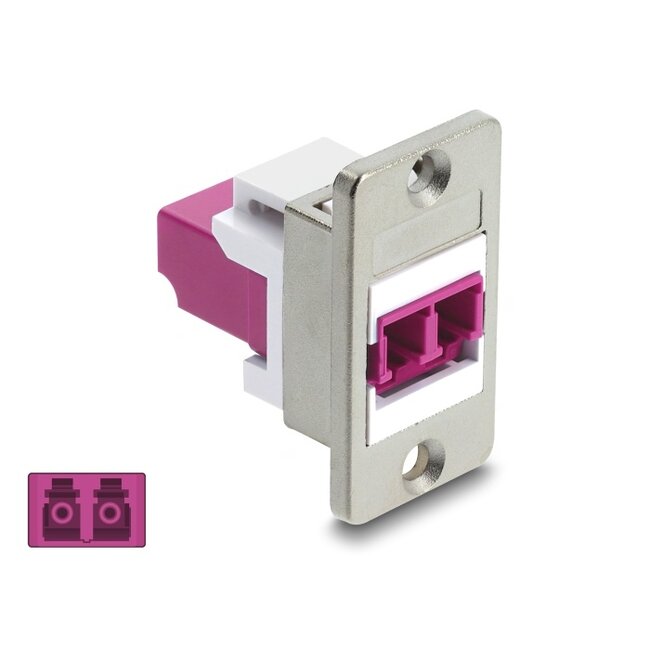

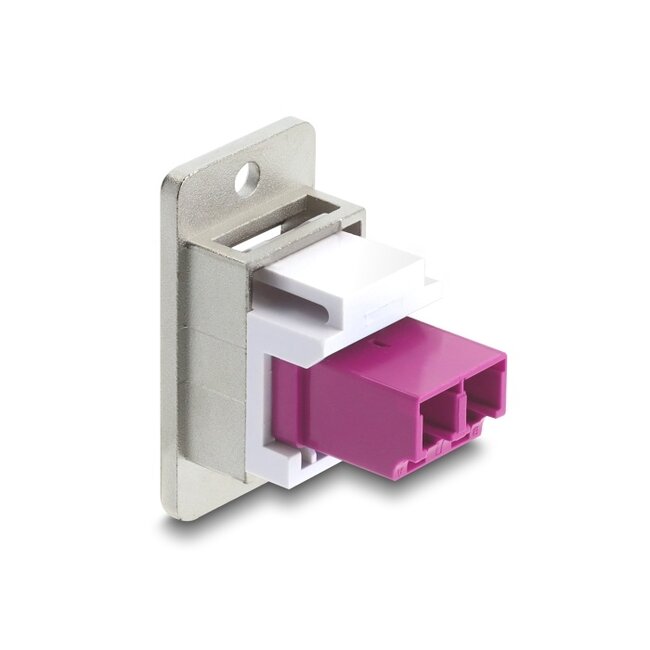

This fibre optic panel mount by Delock can be used to connect fibre optic cables and is suitable for installation in a housing.
Specification• Connectors:
1 x LC Duplex female
1 x LC Duplex female
• For multi-mode fiber
• Insertion loss < 0.3 dB
• Dust covers
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: silver / violet / white
• Dimensions (LxWxH): 29.2 x 19.1 x 35.5 mm
• Panel Mount
