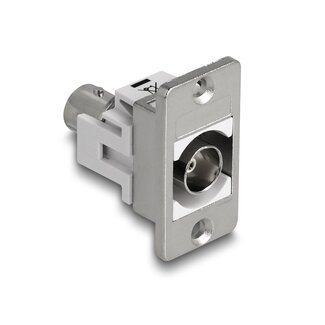

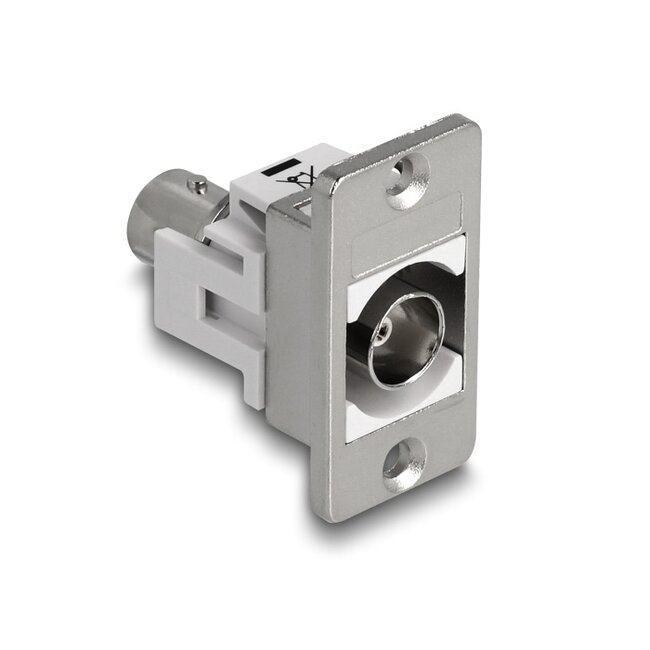

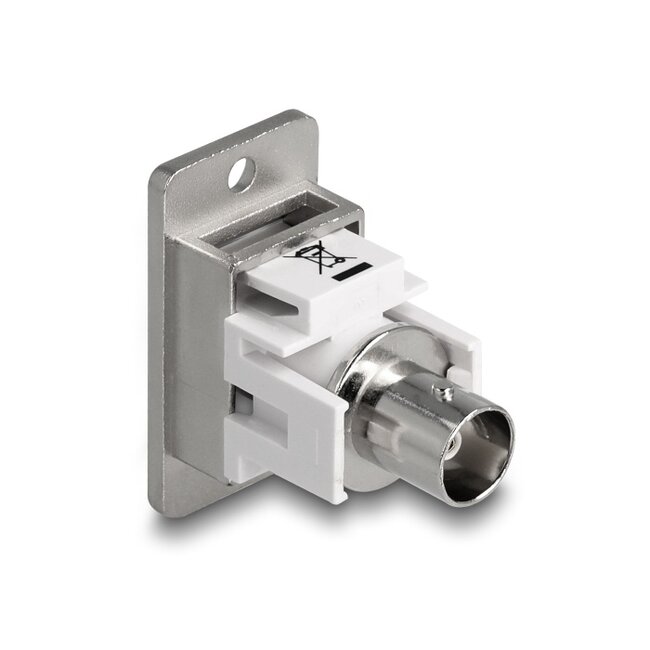

This BNC panel mount by Delock can be used to connect BNC cables and is suitable for installation in a housing.
Specification• Connectors: 2 x BNC female
• Impedance: 50 Ohm
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm

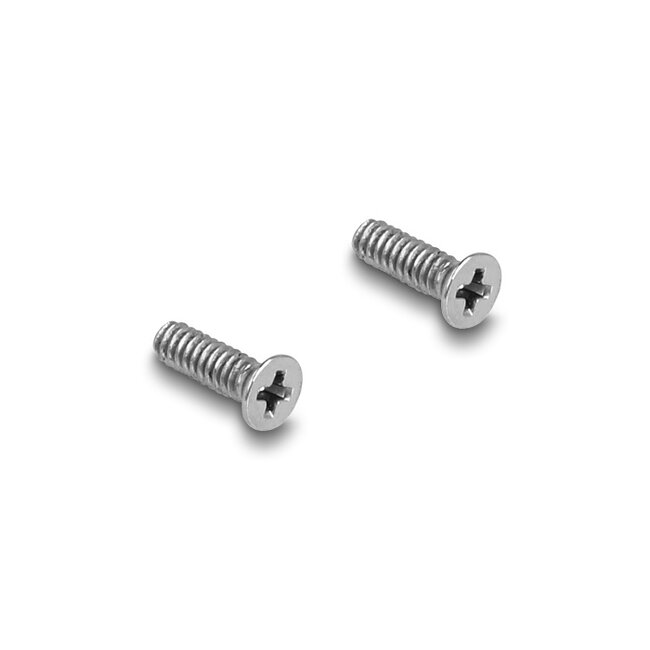

• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): 32.5 x 19.0 x 35.5 mm
• Panel Mount
